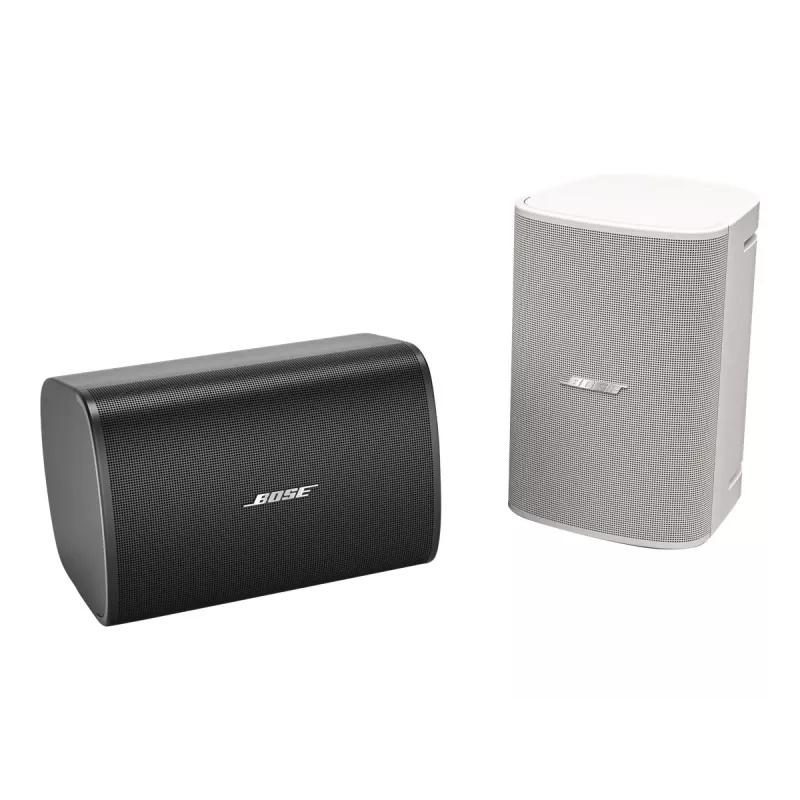

Bose DesignMax DM5SE Surface-Mount Loudspeaker - 50W - Black

The Bose DesignMax DM5SE is a high-performance 2-way surface-mount loudspeaker engineered for premium sound reinforcement in commercial environments. With a 5.25-inch woofer and 1-inch neodymium dome tweeter, it delivers full-range audio with exceptional clarity and coverage. Rated at 50W RMS (200W peak) and offering 70/100V transformer taps, this IP55-rated speaker is ideal for indoor and outdoor installations where reliability and sound quality are paramount.

Advantages

• Exceptional sound quality with wide 135° conical coverage ensures even distribution across listening areas.
• Versatile installation with included U-bracket and IP55 weather resistance for outdoor use.
• Easy integration into 70V/100V distributed audio systems with selectable power taps.

Suitable for

• Retail stores, restaurants, and hospitality venues
• Conference rooms and corporate lobbies
• Outdoor patios, terraces, and covered walkways
• Educational facilities and houses of worship

Key specifications

• Speaker Type: 2-way, full-range, surface-mount
• Woofer: 5.25-inch (133 mm)
• Tweeter: 1-inch (25 mm) neodymium dome
• Frequency Response (-3 dB): 80 Hz – 20 kHz
• Frequency Range (-10 dB): 65 Hz – 20 kHz
• Nominal Impedance: 8 Ohms (transformer bypass)
• Power Handling (RMS): 50 W
• Power Handling (Peak): 200 W
• Transformer Taps (70V): 2.5W, 5W, 10W, 20W, 40W
• Transformer Taps (100V): 5W, 10W, 20W, 40W
• Sensitivity (SPL/1W @ 1m): 87 dB
• Maximum SPL (Peak @ 1m): 110 dB
• Nominal Coverage (H x V): 135° conical
• Enclosure Material: Engineered plastic
• Grille Material: Perforated steel, powder-coated
• Connectors: Euroblock 6-pin with loop-through
• Mounting: Included U-bracket
• Environmental Rating: IP55
• Colour: Black

Recommendations

For optimal performance, pair the DesignMax DM5SE with a compatible Bose amplifier or DSP. Ensure proper weather sealing when installing outdoors. The included U-bracket allows for flexible aiming and secure mounting.
