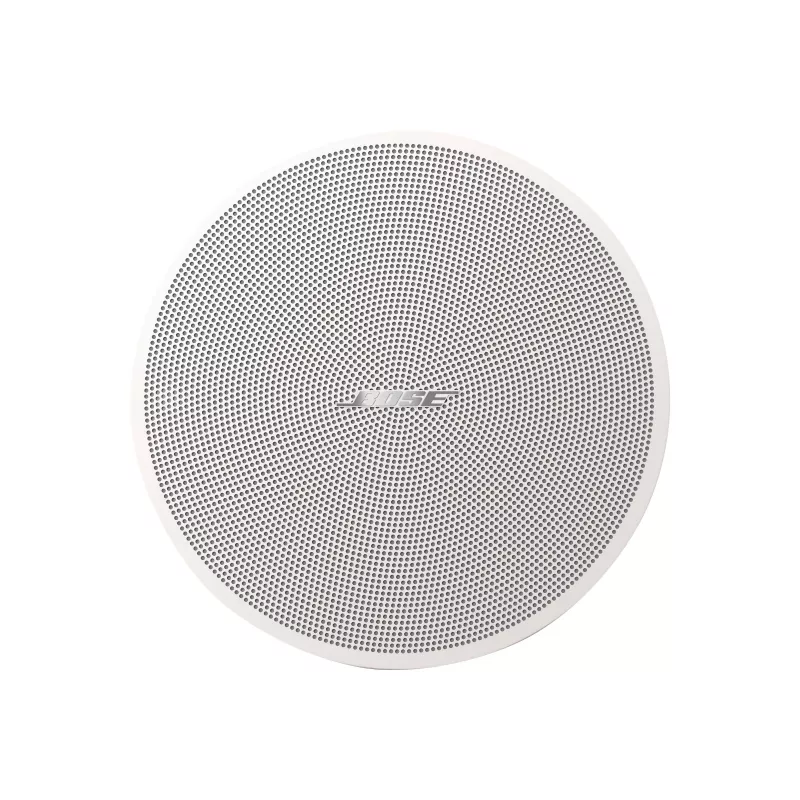

Bose DesignMax DM2C-LP In-Ceiling Loudspeaker 16 Watt Arctic White (RAL 9003)

The Bose DesignMax DM2C-LP is a high-performance in-ceiling loudspeaker designed for commercial audio installations. With a compact 2.25-inch full-range driver, it delivers clear, full-range sound for background music and paging applications. The low-profile design and Arctic White finish (RAL 9003) blend seamlessly into any ceiling, while the quick-hold mounting arms simplify installation.

Advantages

Exceptional sound quality in a compact form factor. Easy installation with quick-hold mounting arms and magnetic grille. Versatile transformer taps for 70V and 100V systems. Durable construction with perforated steel grille.

Suitable for

• Retail stores
• Restaurants and cafes
• Office spaces
• Lobbies and waiting areas
• Conference rooms

Key specifications

• Loudspeaker Type: Full-range, In-ceiling
• Driver Size: 2.25 inch (57 mm) full-range
• Frequency Response (-3 dB): 85 Hz - 19 kHz
• Frequency Range (-10 dB): 75 Hz - 20 kHz
• Nominal Coverage (1-4 kHz): 160° Conical
• Nominal Impedance: 16 Ω (transformer bypass)
• Power Handling (RMS): 16 W
• Power Handling (Peak): 64 W
• Sensitivity (SPL/1W @ 1m): 84 dB
• Maximum SPL (Continuous): 96 dB
• Maximum SPL (Peak): 102 dB
• Transformer Taps (70V): 1W, 2W, 4W, 8W, 16W
• Transformer Taps (100V): 2W, 4W, 8W, 16W
• Color: Arctic White (RAL 9003)
• Mounting Type: In-ceiling, quick-hold mounting arms
• Cutout Diameter: 165 mm (6.5 in)
• Connector Type: Euroblock 6-pin
• Grille Material: Perforated steel, magnetic attachment

Recommendations

For optimal performance, pair with a compatible Bose amplifier and ensure proper ceiling cutout dimensions. Ideal for distributed audio systems requiring high speech intelligibility and music reproduction.
