Power Distribution Unit PDU PowerWalker 10133019 0U Black C13 C19

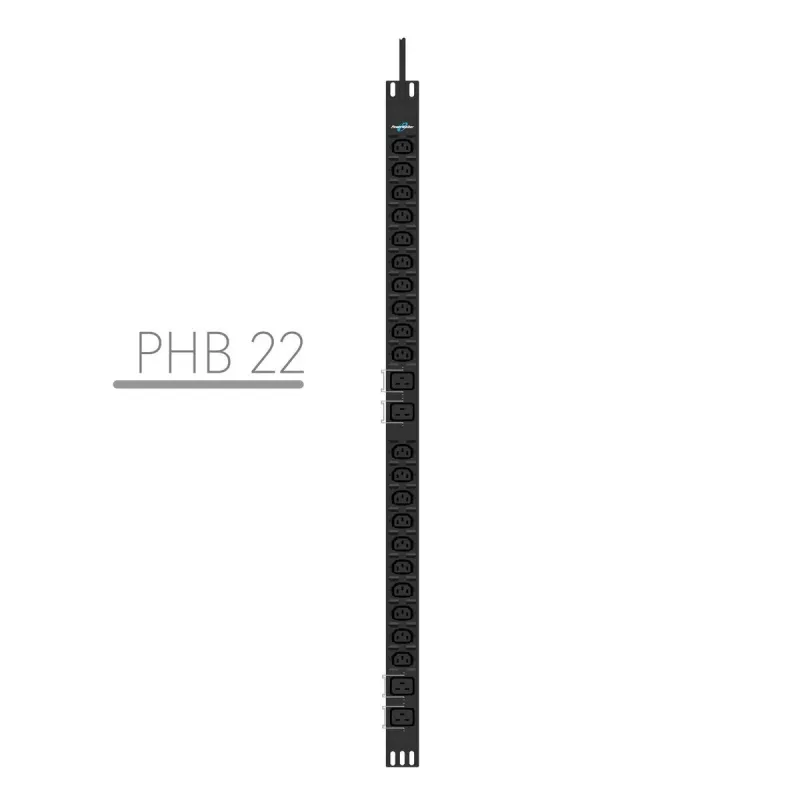

The PowerWalker 10133019 is a 0U power distribution unit designed for efficient power management in network closets, server rooms and data centers. It features a compact vertical-mount design with C13 and C19 couplers, a slim 1050 mm by 50 mm profile and a lightweight build that fits standard racks without occupying rack unit space.

Advantages

The PDU is available in two variants: PHL with a local meter for on-site power monitoring and PHB without a local meter. Its 0U vertical mounting saves valuable rack space and the tool-less mounting design allows quick installation. Compact dimensions and a lightweight black housing simplify deployment in tight rack environments.

Suitable for

• Server rooms and data centers
• Network closets and telecommunications cabinets
• Racks with limited available U space
• Environments requiring C13 and C19 power outlets

Key specifications

• Model: PowerWalker 10133019
• Mounting type: 0U vertical mounting
• Couplers: C13 and C19
• Dimensions (approx.): 1050 mm (width) x 50 mm (depth)
• Weight: 1.7–1.8 kg (manufacturer data)
• Colour: Black
• MPN: 10133019
• EAN: 4260074984200

How to use

Mount the PowerWalker 0U PDU vertically to the rack rails using the tool-less mounting mechanism, ensuring the unit is securely attached and aligned. Connect the PDU to the facility power source according to local electrical codes and then plug devices into the C13 and C19 outlets as required. If using the PHL variant, refer to the meter label for local power readings.

Recommendations

Install the PDU in a properly grounded rack and avoid overloading individual outlets. Verify cable routing to maintain airflow in the rack and periodically check the local meter (if present) to monitor load and prevent circuit overloads.
