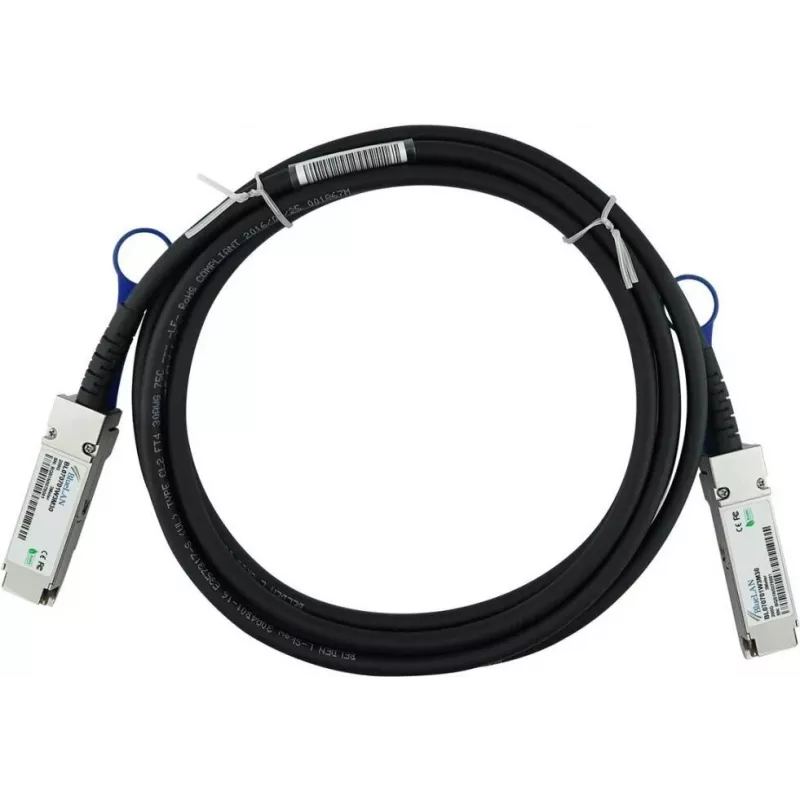

BlueOptics Lenovo B4QQ Compatible BlueLAN Direct Attach Cable (DAC) Passive 200 Gigabit Twinaxial Copper QSFP56 to QSFP56 0.5m

The BlueOptics Lenovo B4QQ compatible BlueLAN Direct Attach Cable (DAC) is a high-performance, passive twinaxial copper cable designed for 200 Gigabit Ethernet (200GbE) connections. It features QSFP56 connectors on both ends, making it ideal for short-range, high-speed data interconnects within racks and between adjacent racks. This cable is fully compatible with Lenovo B4QQ series hardware and complies with SFF-8665 (QSFP56 MSA) and IEEE 802.3cd (200GBASE-CR4) standards.

Advantages

This passive DAC cable offers ultra-low power consumption, hot-swappable capability, and robust EMI/RFI protection through shielded twinax construction. It provides a cost-effective and reliable solution for high-density data center environments, ensuring minimal signal loss and maximum throughput.

Suitable for

• Lenovo B4QQ series switches and servers
• High-speed data interconnect in data centers
• Rack-to-rack and server-to-switch connections
• 200 Gigabit Ethernet (200GbE) networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinaxial Copper Cable
• Cable Design: Passive
• Data Rate: 200 Gigabit Ethernet (200GbE)
• Connector Type A: QSFP56
• Connector Type B: QSFP56
• Compatibility: Lenovo B4QQ Series
• Standard Compliance: SFF-8665 (QSFP56 MSA), IEEE 802.3cd (200GBASE-CR4)
• Application: High-Speed Data Interconnect, Rack-to-Rack, Server-to-Switch
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (Passive)
• Cable Material: Copper
• Transceiver Type: QSFP56 (on both ends)
• Signal Transmission: Electrical
• Form Factor: QSFP56
• RoHS Compliant: Yes
• EMI/RFI Protection: Yes (Shielded Twinax)
• Operating Voltage: 3.3V

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 interfaces and 200GbE standards. This cable is designed for short-distance connections up to 5 meters; for longer distances, consider active optical cables or transceivers.
