BlueOptics InfiniBand/fibre optic cable 10 m MPO 4x LC LC/APC

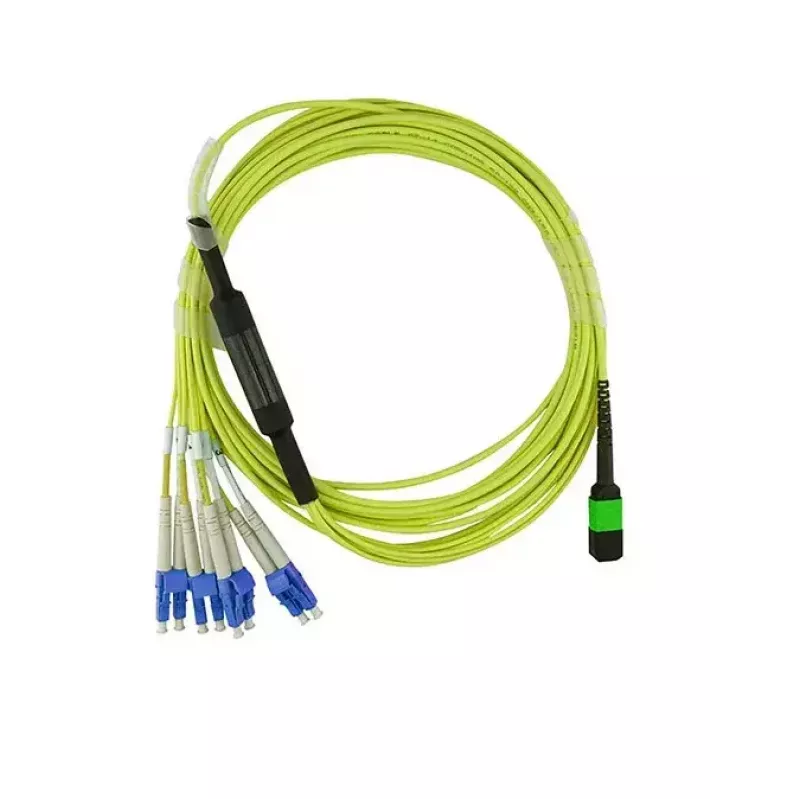

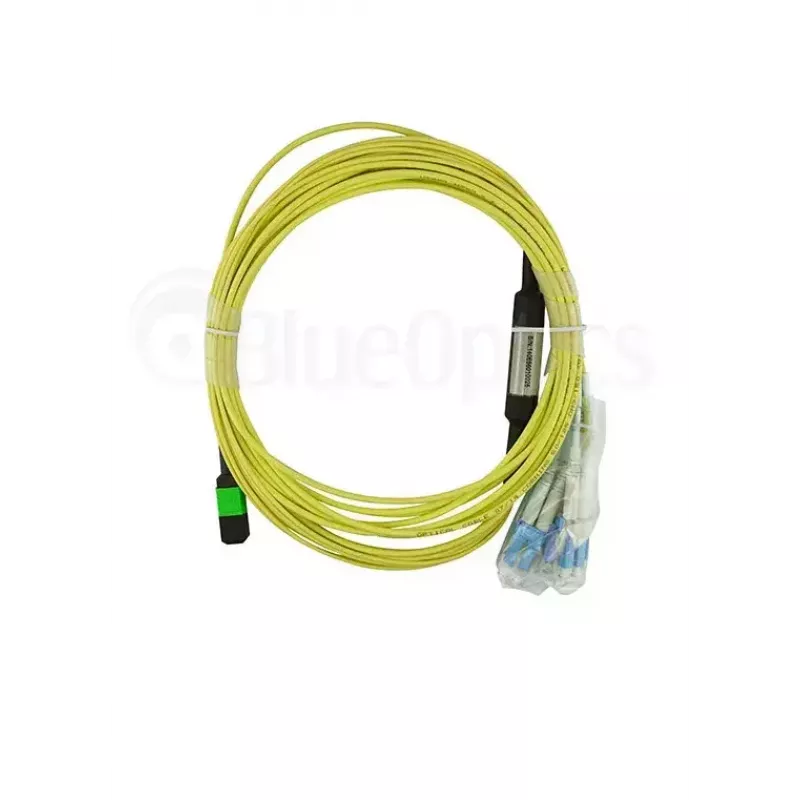

The BlueOptics InfiniBand/fibre optic cable 10 m MPO 4x LC LC/APC is a 10-metre multimode/monomode-compatible patch cable designed for high-density data links. It features an MPO connector on one end and four LC/APC connectors on the other, and uses G.657.A1 fibre with a 9 µm core diameter to support reliable full-duplex transmission. The cable is intended for use in environments requiring compact, high-performance optical interconnects such as data centres and InfiniBand setups.

Advantages

The use of G.657.A1 fibre improves bend performance compared with older fibre types, reducing signal loss in confined routing paths. The MPO to 4x LC/APC breakout provides a space-saving connection that simplifies linking multi-fibre trunks to multiple single-fibre ports. Full-duplex capability and a standard 10-metre length offer flexibility for rack-to-rack and equipment-to-equipment links while maintaining optical performance suitable for high-speed data transmission.

Suitable for

• InfiniBand clusters and high-performance computing interconnects
• Data centre patch panels and spine/leaf architectures
• Connections between MPO trunks and LC/APC ports on active equipment
• Environments requiring improved bend tolerance and compact cabling

Key specifications

• Cable length: 10 m

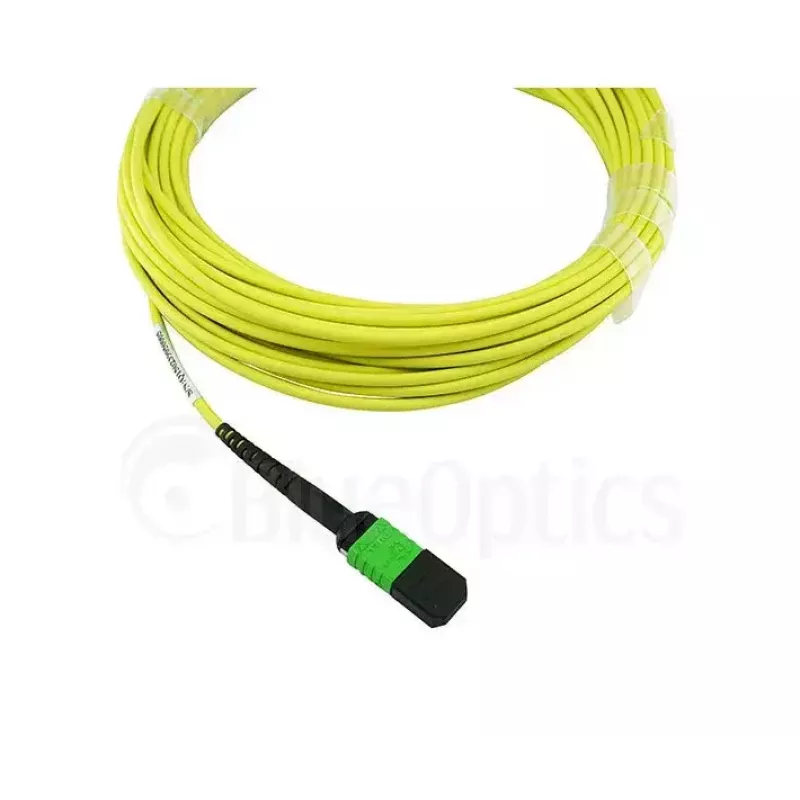

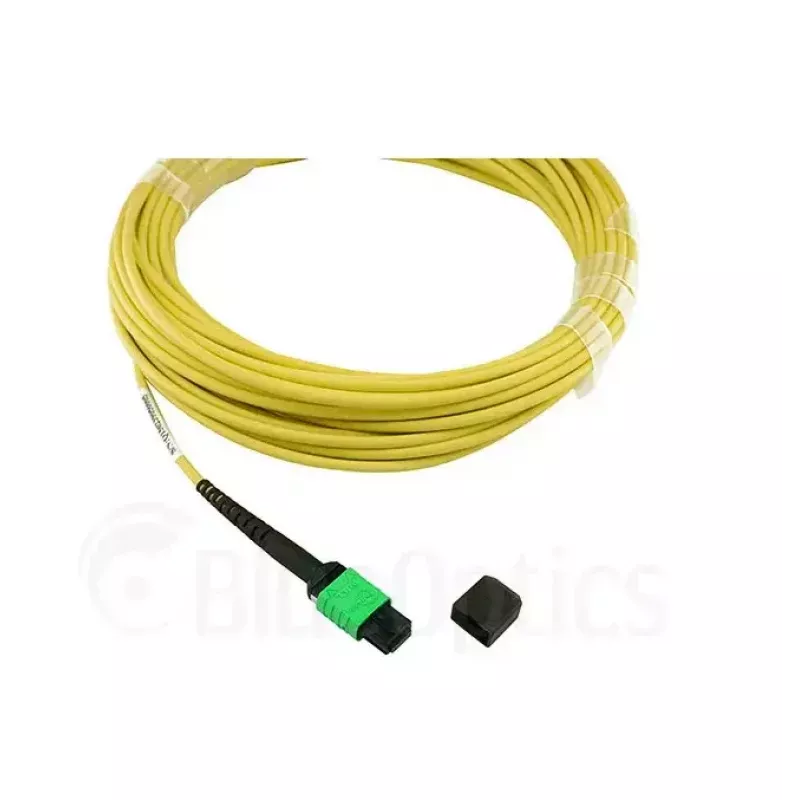

• Connector A: MPO multi-fibre connector

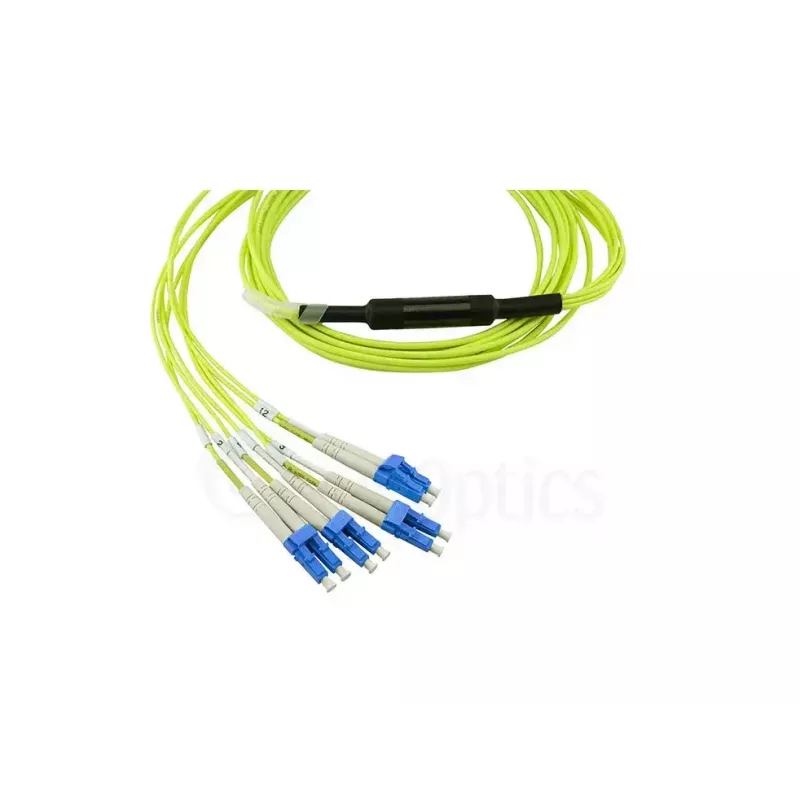

• Connector B: 4 × LC/APC duplex connectors
• Fibre type: ITU-T G.657.A1
• Core diameter: 9 µm
• Transmission: full duplex optical links
• Application: high-density optical interconnects and InfiniBand data links

How to use

Route the cable along a planned cable path avoiding sharp bends and tight radii to preserve the bend-improved properties of G.657.A1 fibre. Insert the MPO connector into the corresponding multi-fibre trunk or adapter with correct key orientation, then connect each LC/APC duplex connector to the device ports, ensuring APC connectors are mated with APC receptacles to maintain return loss characteristics. Verify link status using appropriate optical test equipment or the host devices' diagnostics after installation.

Recommendations

Handle connectors with dust caps until installation, keep insertion/removal cycles to a minimum, and follow standard fibre safety and cleaning procedures. For best performance in high-density racks, maintain bend radii above the manufacturer’s minimum and consider routing through cable managers or trays to reduce stress on the MPO and LC/APC terminations.
