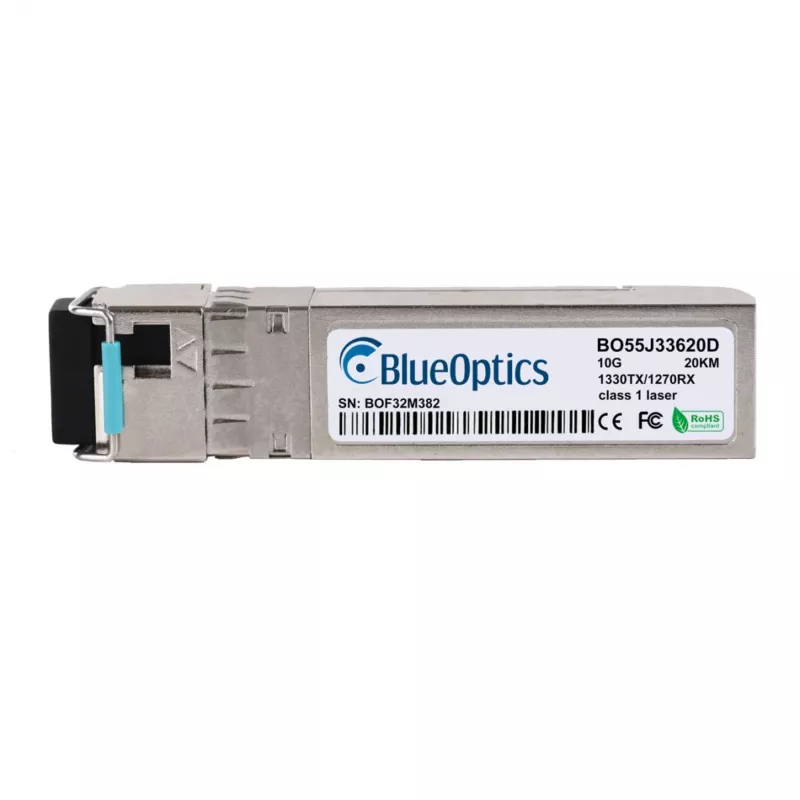

BlueOptics BO55J33620D SFP+ Bidi Transceiver Compatible Hikvision HK-SFP+-10G-20-1330, 10Gbps, 20km, 1330nm Tx/1490nm Rx, LC Simplex, Single-Mode Fiber

The BlueOptics BO55J33620D is a high-performance SFP+ Bi-directional (Bidi) transceiver designed for 10 Gigabit Ethernet applications over single-mode fiber. It is fully compatible with Hikvision HK-SFP+-10G-20-1330 equipment, ensuring seamless integration and reliable network connectivity.

Advantages

This transceiver offers a cost-effective solution for extending network reach up to 20 km using a single fiber strand. Its Bidi technology reduces fiber infrastructure costs while maintaining high data throughput. With Digital Diagnostic Monitoring (DDM) support, real-time monitoring of operating parameters is possible, enhancing network management and troubleshooting.

Suitable for

• 10 Gigabit Ethernet networks requiring long-distance connections
• ISP and enterprise networks utilizing single-mode fiber
• Hikvision surveillance systems and compatible switches
• Data center interconnects and campus networks

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Max Distance: 20 km
• Wavelength: Tx 1330nm / Rx 1490nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Simplex
• Transceiver Type: Bi-directional (Bidi)
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Standard: IEEE 802.3ae 10GBASE-BX
• Hot-Swappable: Yes
• Voltage: 3.3V
• Laser Type: DFB Laser

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is hot-swappable and supports a wide range of Hikvision and other compatible networking equipment. Verify compatibility with your device before installation.
