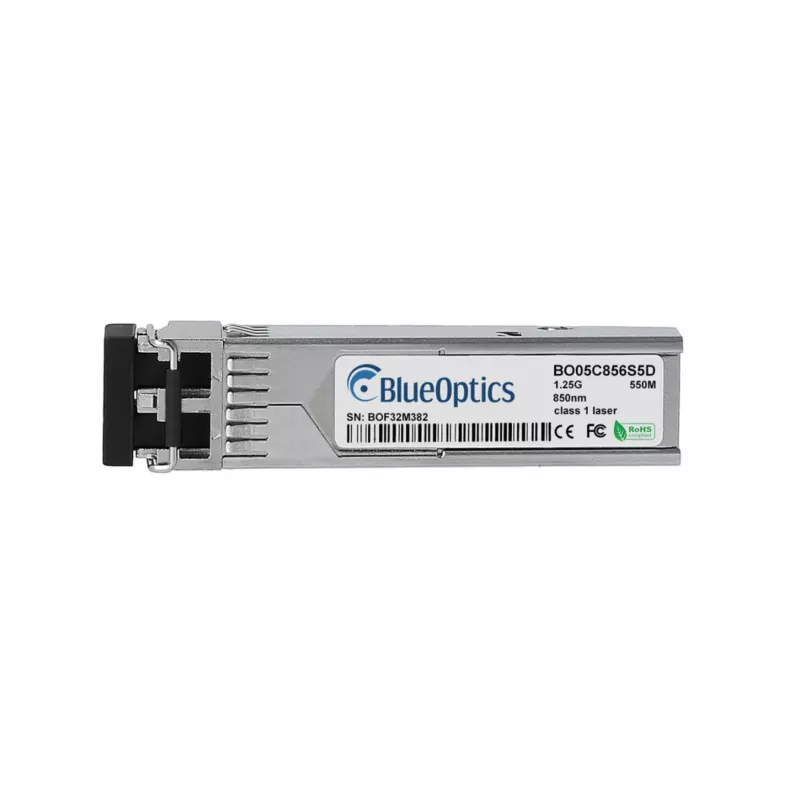

BlueOptics BO05C856S5D Compatible Ruckus E1MG-SX-OM SFP Transceiver, 1000BASE-SX, LC Duplex, Multimode, 550m

The BlueOptics BO05C856S5D is a high-performance SFP transceiver module designed for compatibility with Ruckus E1MG-SX-OM networking equipment. It delivers reliable 1000BASE-SX connectivity over multimode fiber, supporting data rates up to 1.25 Gbps and distances up to 550 meters. This hot-swappable module features an LC duplex connector and is fully MSA compliant, ensuring seamless integration into existing network infrastructures.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1W) helps reduce energy costs. Hot-pluggable design allows for easy installation and maintenance without network downtime.

Suitable for

• Enterprise network switches and routers requiring 1000BASE-SX connectivity
• Data center interconnections over multimode fiber
• Fiber-to-the-desk applications
• Upgrading or expanding existing Gigabit Ethernet networks

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Interface: 1000BASE-SX
• Wavelength: 850 nm
• Max Distance: 550 m (over OM2/OM3 MMF)
• Fiber Type: Multimode
• Connector: LC Duplex
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Power Consumption: <1W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Transmitter: VCSEL
• Receiver: PIN Photodiode
• Standards: IEEE 802.3z

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure your network equipment supports SFP modules and 1000BASE-SX standard. This module is a direct replacement for Ruckus E1MG-SX-OM and is backed by BlueOptics' quality guarantee.
