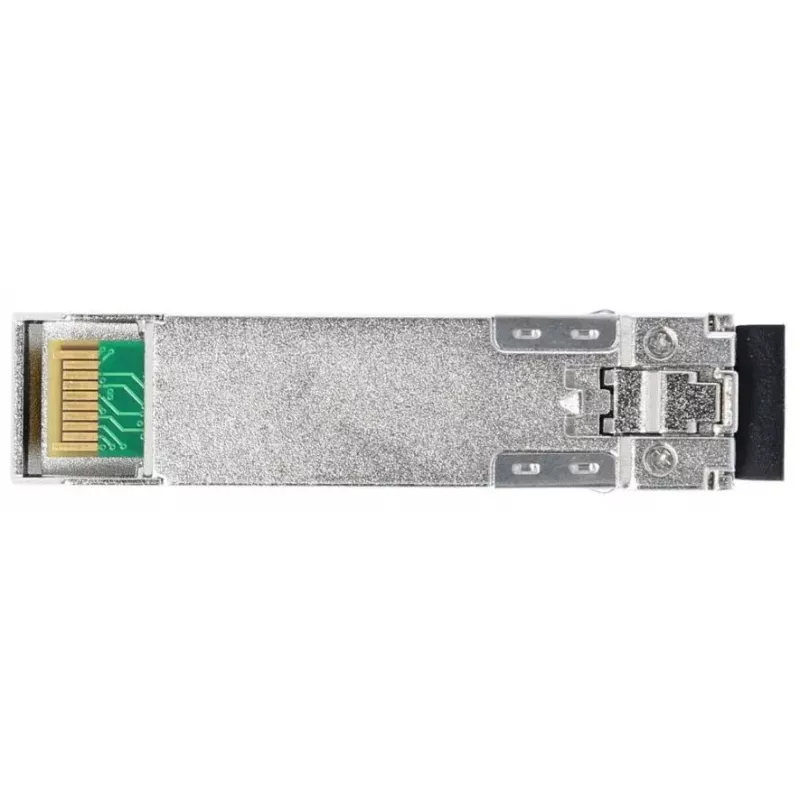

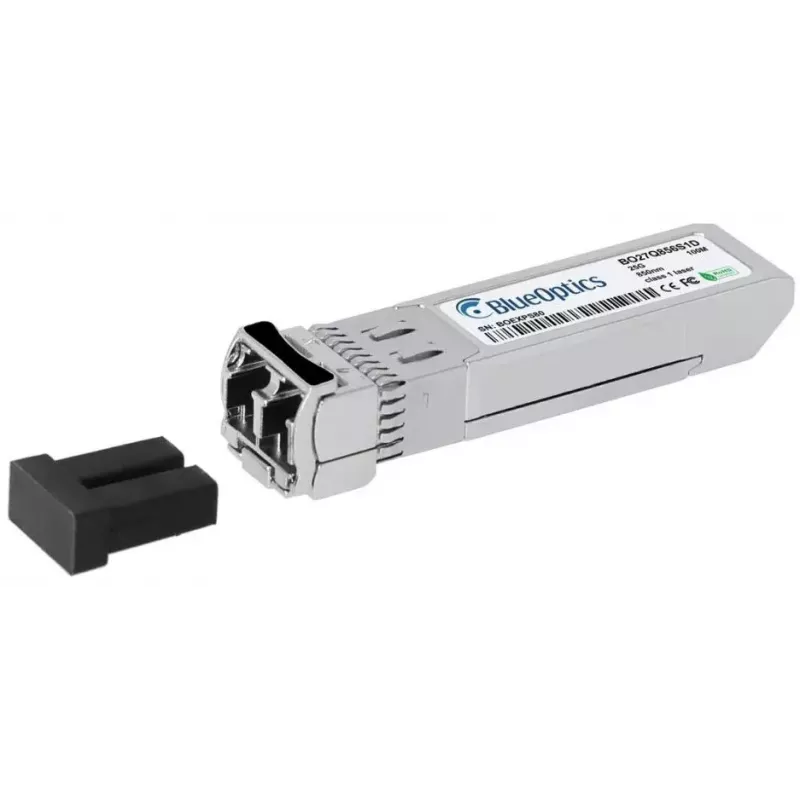

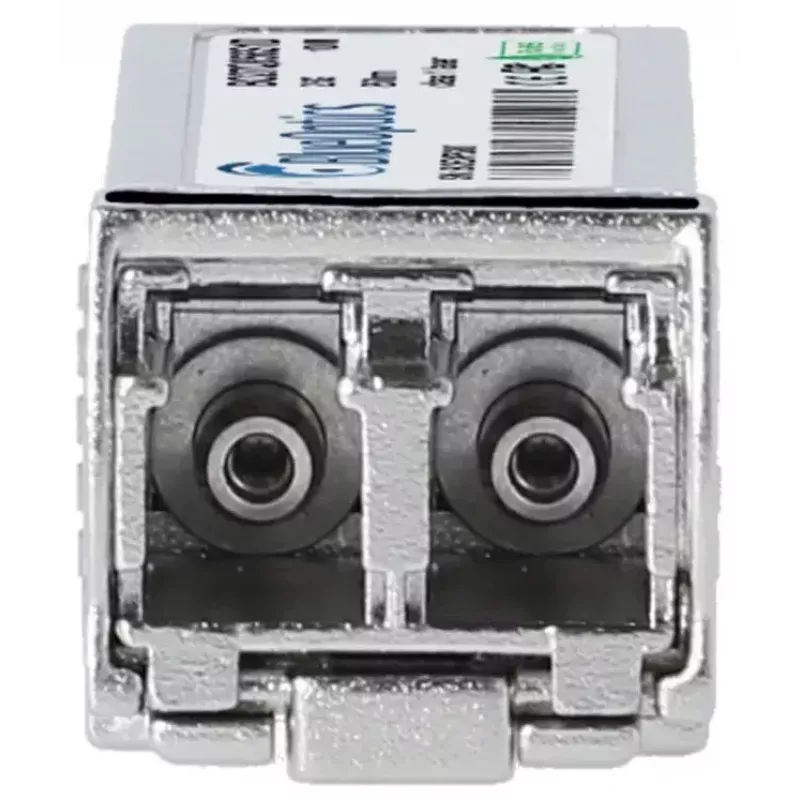

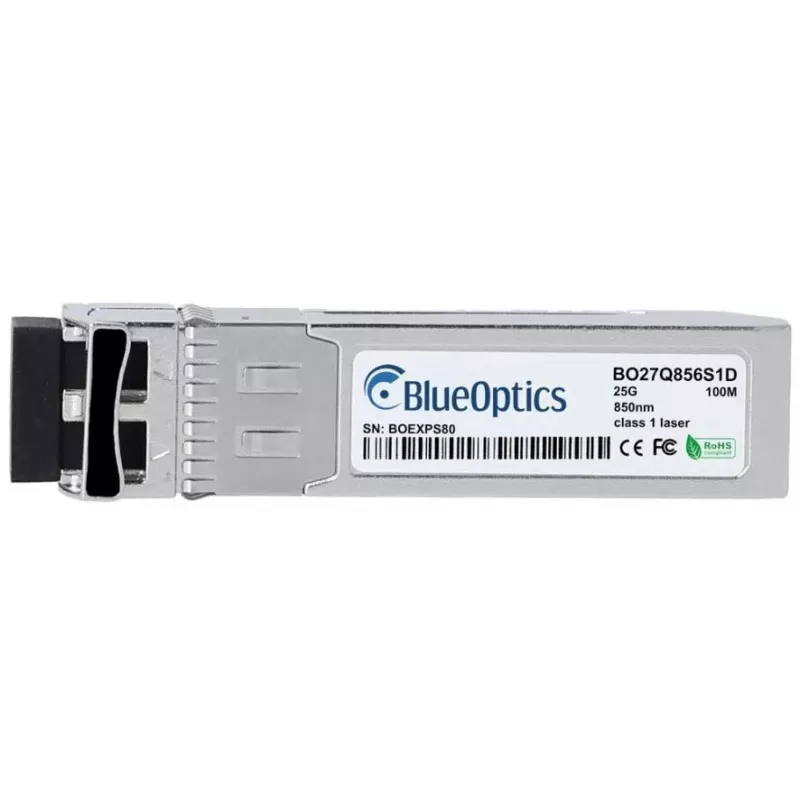

BlueOptics AOM-SFP28-25GBE-SR-INT-BO Fiber optic transceiver SFP28 100m Aluminium

The BlueOptics AOM-SFP28-25GBE-SR-INT-BO is a 25G SFP28 fiber optic transceiver designed for short-reach multimode applications. It uses an SFP28 interface with an LC duplex connector and supports optical data transmission up to 100 meters over multimode fiber at 850 nm for both transmit and receive. The module is housed in an aluminum enclosure, weighs approximately 20 grams, and follows MSA form-factor standards for interoperability with compatible network equipment.

Advantages

This transceiver supports 25GBASE-SR operation and is compatible with common hardware platforms that accept SFP28 modules. It provides low-latency, high-throughput optical links and includes Digital Diagnostic Monitoring (DDM/DOM) functionality for real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature. The compact aluminum case offers a lightweight and durable solution for dense installation environments.

Suitable for

Key specifications

How to use

Insert the SFP28 transceiver into a compatible SFP28 port on a switch, router or host adapter until it latches. Connect LC duplex multimode fiber patch cords to the Tx and Rx ports, ensuring correct polarity. Verify link status and speed in the host device management interface and enable DDM/DOM monitoring if supported by the platform. Follow standard ESD precautions when handling the module and keep protective caps on fiber connectors when not in use.

Recommendations

Use OM3/OM4 multimode fiber for reliable operation at 25 Gbps and to achieve the stated 100 m reach. Confirm hardware compatibility with the host device vendor and enable DDM/DOM support to monitor optical link parameters for proactive maintenance.
