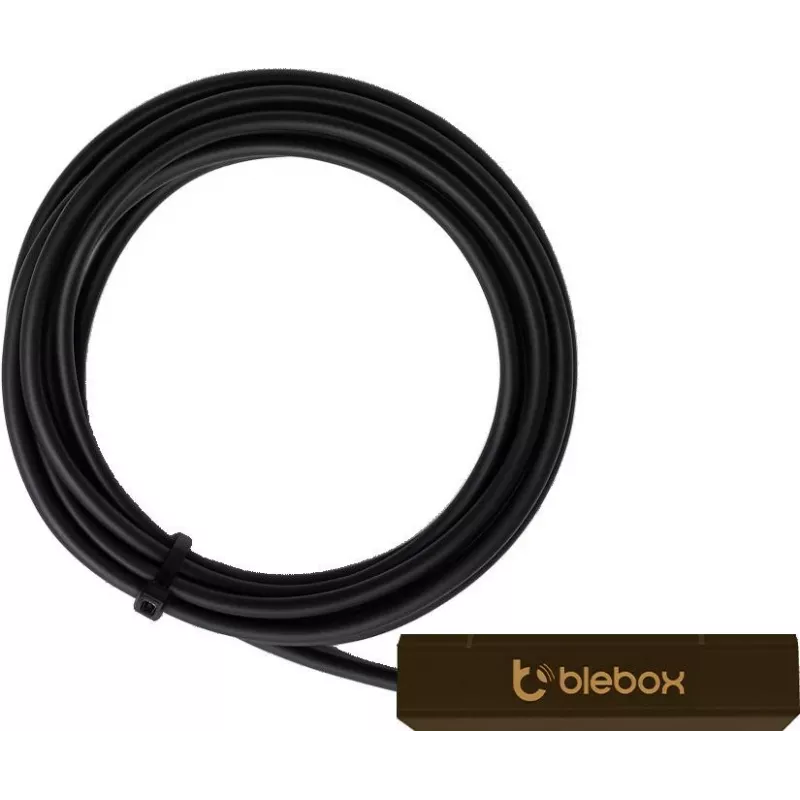

BLEBOX openSensor Brown 2m - Wireless Door/Window Sensor

The BLEBOX openSensor is a wireless magnetic contact sensor designed for monitoring doors, windows, and other openings. With a 2-meter cable and a sleek brown finish, it seamlessly integrates into any interior. The sensor uses Wi-Fi connectivity (2.4 GHz, 802.11 b/g/n) and is powered by 5-24V DC via screw terminals. It features an ESP32 microcontroller, supports WPA2-PSK and TLS security, and can be controlled via the wBox app (iOS/Android) or through open API, MQTT, and REST API for smart home integration.

Advantages

Easy installation with adhesive or screws, reliable magnetic reed switch, low power consumption (<1W), and wide operating temperature range (-20°C to 50°C). The compact design (module: 46x31x15 mm, magnet: 20x10x10 mm) fits discreetly on any surface.

Suitable for

• Monitoring doors and windows in smart home systems
• Security alerts and automation scenarios
• Integration with home automation platforms via open API

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Power: 5-24V DC, screw terminals
• Sensor: Magnetic contact (reed switch)
• Cable length: 2 m
• Color: Brown
• Housing: ABS plastic, IP20
• Operating temperature: -20°C to 50°C
• Dimensions (module): 46 x 31 x 15 mm
• Dimensions (magnet): 20 x 10 x 10 mm
• Power consumption: <1W
• Security: WPA2-PSK, TLS
• Microcontroller: ESP32

Recommendations

For optimal performance, ensure stable Wi-Fi coverage at the installation location. Use the included adhesive tape or screws for mounting. Compatible with wBox app and various smart home systems.
