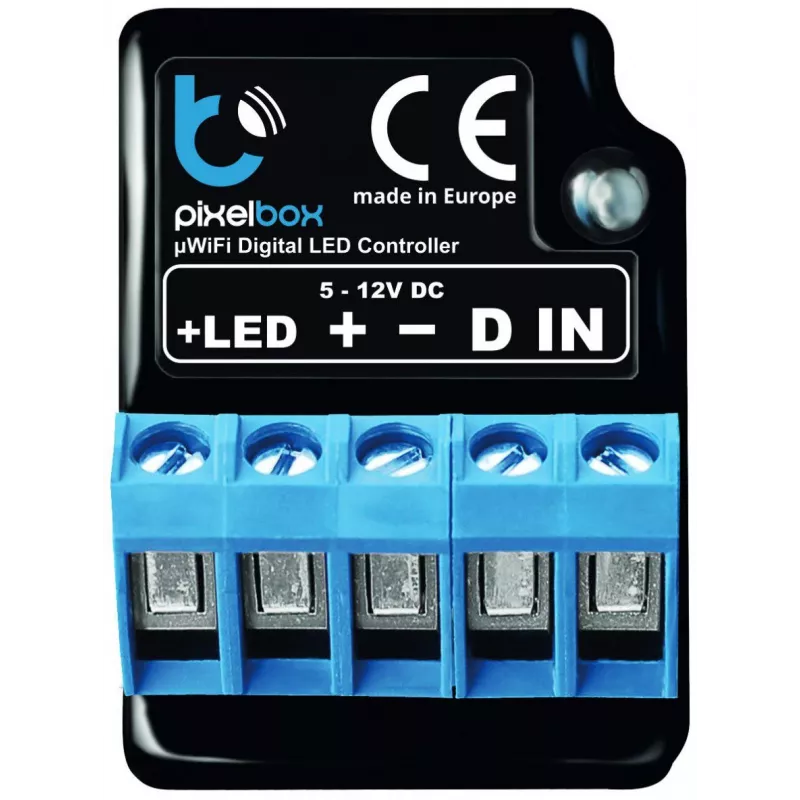

BLEBOX LED Pixelbox Wi-Fi Lighting Module – Pixel Controller for WS2812/APA102, 5A, 1024 Pixels

Unlike typical pixel drivers that require a dedicated PC or wired hub, the BLEBOX LED Pixelbox connects directly to your home Wi-Fi network, enabling full control from a smartphone or through smart home ecosystems. This compact module supports up to 1024 individually addressable pixels and delivers a 5A output, making it suitable for a wide range of lighting projects, from accent lighting to complex visual displays.

Highlights

• Wi-Fi 2.4 GHz – 802.11 b/g/n
• Up to 1024 pixels supported
• 5A max LED output current
• Input voltage 7–24V DC
• Compatible with WS2811, WS2812, WS2812B, SK6812, APA102 and more

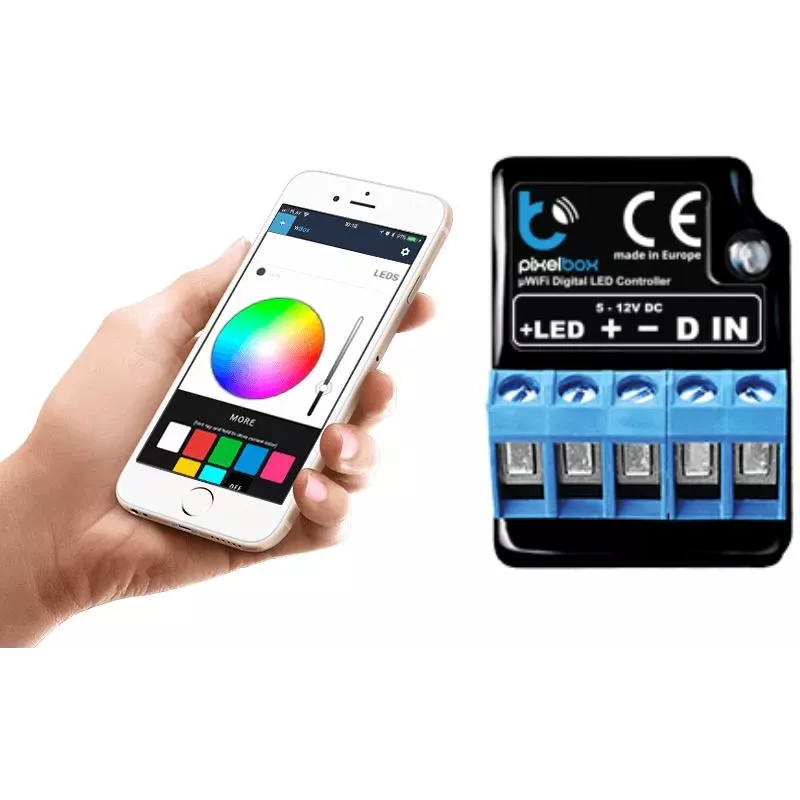

• Control via wBox app (iOS/Android), REST API, MQTT, HTTP
• Works with Google Home and Amazon Alexa
• Overload and reverse polarity protection

In daily use

Setup is straightforward: connect the LED pixel strip to the screw terminals, power the module with a suitable DC supply, and pair it with your Wi-Fi network through the wBox app. Once online, you can create dynamic lighting scenes, adjust colours, and synchronise the effect with music or automation routines. The module also supports voice commands via Amazon Alexa and Google Home, making it easy to switch between presets hands-free. The enclosure uses durable ABS plastic, and the screw terminals ensure a secure connection for your LED wiring.

Full specifications

• Brand: BLEBOX
• Model: 32371
• EAN: 5900168580299
• Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Input voltage: 7–24V DC
• Max output current (LED power): 5A
• Max pixels supported: 1024
• Supported LED chipsets: WS2811, WS2812, WS2812B, SK6812, APA102, and others
• Control method: wBox App (iOS/Android), REST API, MQTT, HTTP
• Operating temperature: -20°C to 50°C
• Power consumption (module): < 1W (standby)
• Smart home compatibility: Google Home, Amazon Alexa
• Security: TLS Encryption
• Firmware updates: Over-The-Air (OTA)
• Number of outputs: 1 (data line)
• Housing material: ABS Plastic
• Protection features: Overload, Reverse Polarity
• Memory: Non-volatile for settings
• Mounting type: Screw terminals
• Certifications: CE, RoHS

Final note

The BLEBOX LED Pixelbox is a versatile and reliable solution for anyone looking to add addressable LED lighting to their smart home setup, with robust protection and flexible control options.
