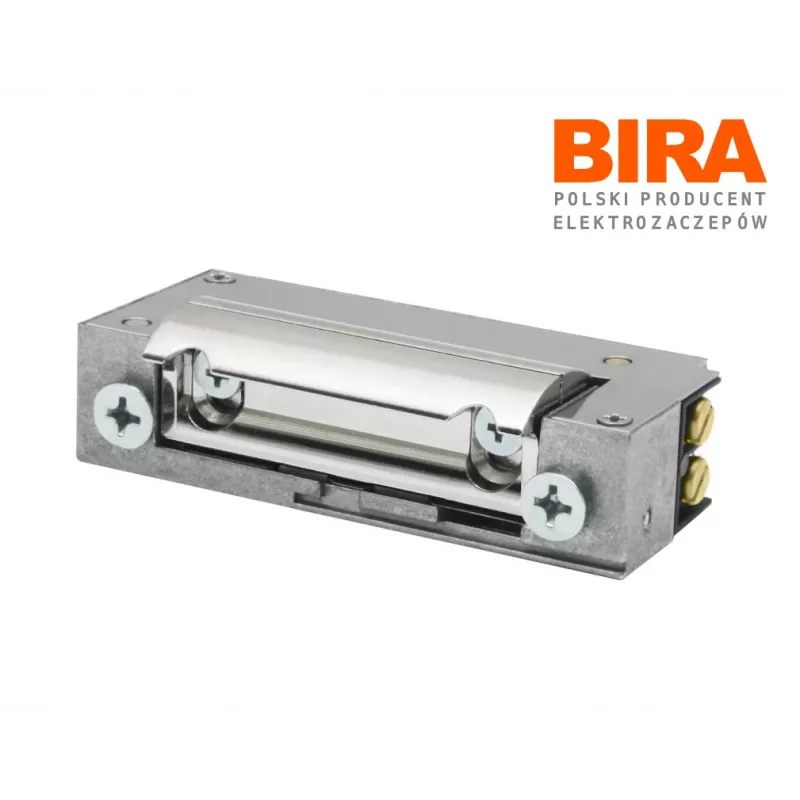

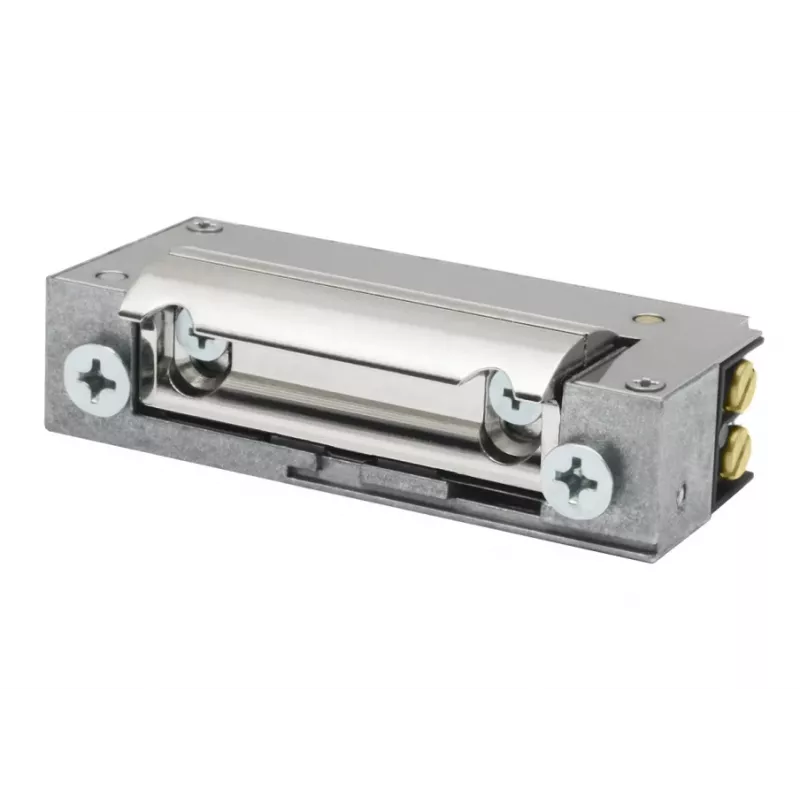

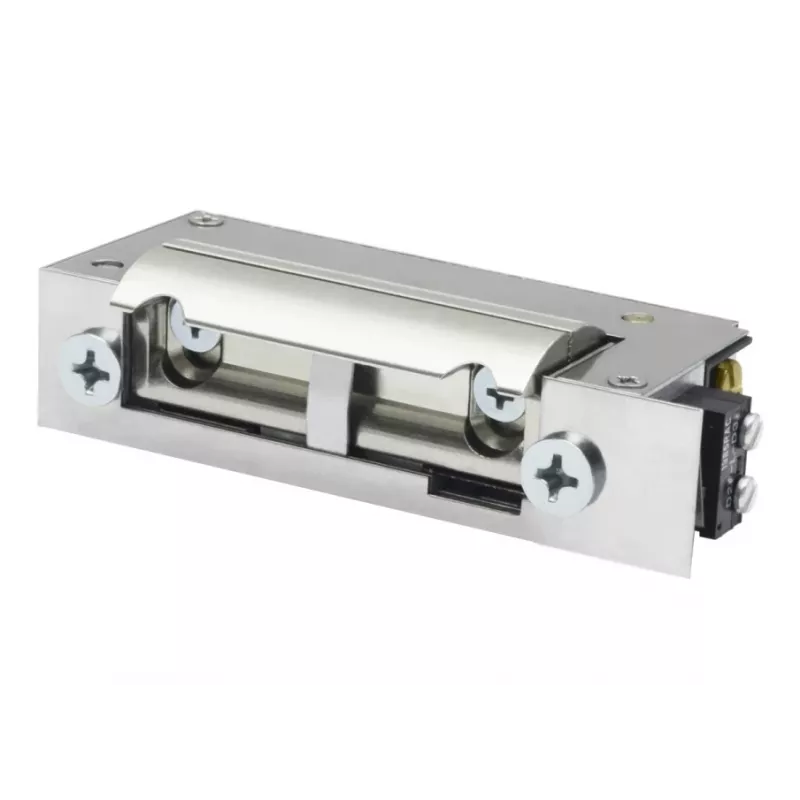

BIRA HARTTE XS00UW Electric Strike 12-24V AC/DC with Mechanical Release Switch

The BIRA HARTTE XS00UW is a high-quality electric strike from the HARTTE XS series, designed for fail-secure operation. It operates on 12-24V AC/DC and features an integrated mechanical release switch (bypass) for emergency access. With a holding force of 3000 N and durability of 300,000 cycles, it is ideal for access control systems in commercial and residential applications.

Advantages

Fail-secure operation ensures door remains locked when power is lost, enhancing security. The symmetrical design allows reversible installation for left or right-hand doors. The mechanical release switch provides a manual bypass option. Flush mount installation saves space and provides a clean look.

Suitable for

• Access control systems for wooden, metal, and PVC doors
• Commercial buildings, offices, and residential complexes
• Integration with intercoms, keypads, and card readers

Key specifications

• Product Type: Electric Strike
• Series: HARTTE XS Series
• Operation Mode: Fail-Secure
• Symmetry: Symmetrical (Reversible)
• Integrated Feature: Mechanical Release Switch (Bypass)
• Operating Voltage: 12-24V AC/DC
• Current Consumption: 250 mA (12V), 125 mA (24V)
• Holding Force: 3000 N
• Durability: 300,000 cycles
• Installation: Flush Mount
• Body Material: Zinc Alloy
• Operating Temperature: -10°C to +50°C
• Humidity: 0% to 90% (non-condensing)
• Certifications: CE Compliant

Recommendations

For complete installation, use with appropriate faceplate (sold separately). Suitable for fail-secure access control systems requiring high security and reliability.
