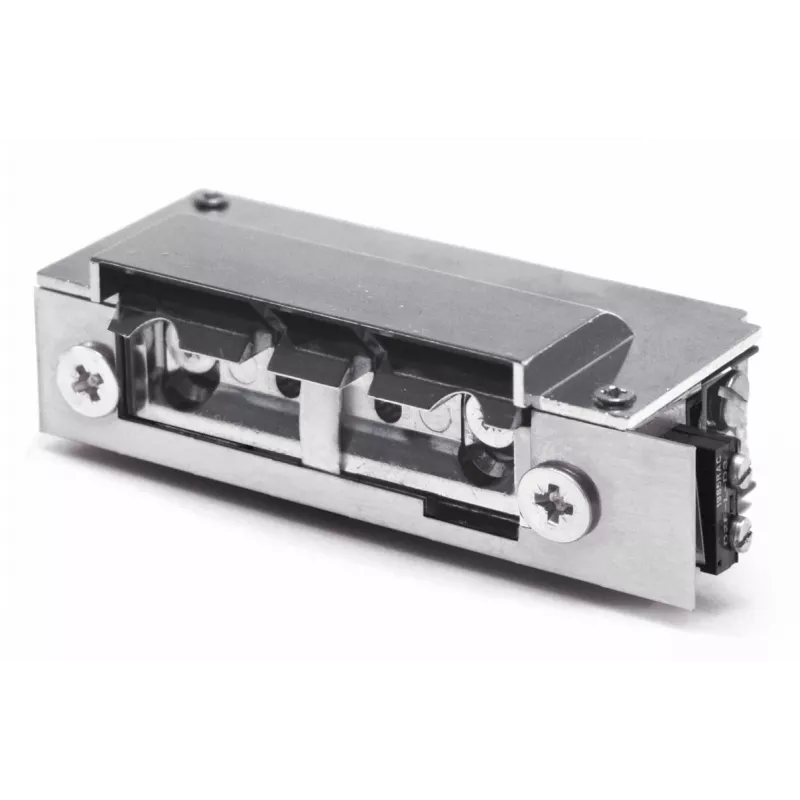

BIRA HARTTE XS00U-C Electric Strike XS Series 12-24V AC/DC Low Current with Latch Release

The BIRA HARTTE XS00U-C is a high-quality electric strike from the XS series, designed for access control systems. It operates on 12-24V AC/DC and features a low current consumption, making it energy-efficient. The strike includes a latch release mechanism (wyślizg) for added convenience and security. With a holding force of 3000 N and durability of 200,000 cycles, it ensures reliable long-term performance. Suitable for flush mounting in various door types.

Advantages

Low current consumption reduces energy costs. Fail-secure operation ensures security during power loss. Symmetrical design allows flexible installation. High holding force and durability provide long-lasting reliability.

Suitable for

• Access control systems in commercial buildings
• Office doors requiring secure locking
• Residential security doors
• Integration with intercom and keypad systems

Key specifications

• Product Type: Electric Strike
• Strike Type: Symmetrical
• Operating Mode: Fail-Secure (Normally Open)
• Voltage: 12-24V AC/DC
• Current Consumption: 280 mA (12V AC), 350 mA (12V DC), 140 mA (24V AC), 170 mA (24V DC)
• Holding Force: 3000 N
• Durability: 200,000 cycles
• Latch Release: Yes
• Installation: Flush Mount
• Material: Zinc Alloy / Steel
• Operating Temperature: -15°C to +40°C
• Series: XS Series

Recommendations

For optimal performance, ensure proper voltage matching and use with compatible access control systems. Professional installation recommended.
