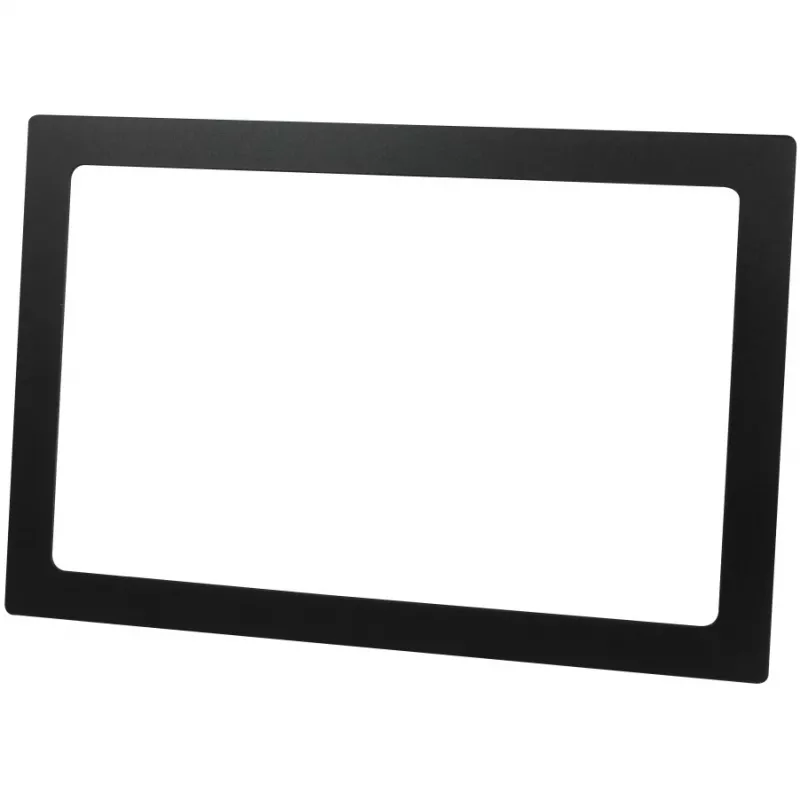

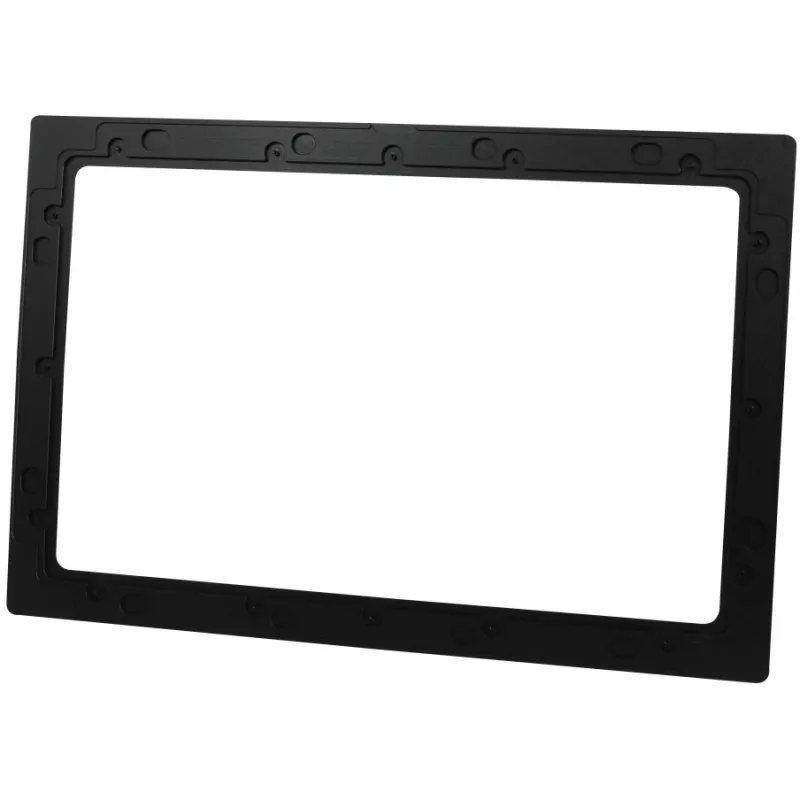

Bezel for ALLNET tablet ALLTCover15NBv1 — black spare part, weight 464 g

Bezel spare part for ALLNET tablet ALLTCover15NBv1 in black, designed for 15" touch-display units. This front frame (bezel) restores the tablet’s visible edge and mounting fit when the original trim is damaged or when a flush installation in an indoor mounting frame is required. The bezel is a lightweight replacement part with a nominal weight of 464 g and is manufactured in China. It is intended for use with ALLNET series tablets that match the 15" display format.

Advantages

The improved bezel version provides a flush appearance where the tablet and installation frame are recessed into the panel. Magnets are used to attach the bezel to the installation frame rather than visible screws, and the bezel profile is lowered toward the touchscreen to reduce the edge gap. The bezel is available as an individual spare part and offered in several standard colours, including black, silver and white, allowing straightforward replacement or aesthetic changes without replacing the entire tablet assembly.

Suitable for

• Replacing damaged front trim on compatible ALLNET 15" touch-display tablets
• Flush mounting in drywall or wooden mounting frames for indoor installations
• Restoring the front appearance and mounting fit of tablets in public or private installations

Key specifications

• Product type: front bezel / cover for tablet
• Compatible display size: 38.1 cm (15") touch-display
• Colour: black
• Weight: approximately 464 g

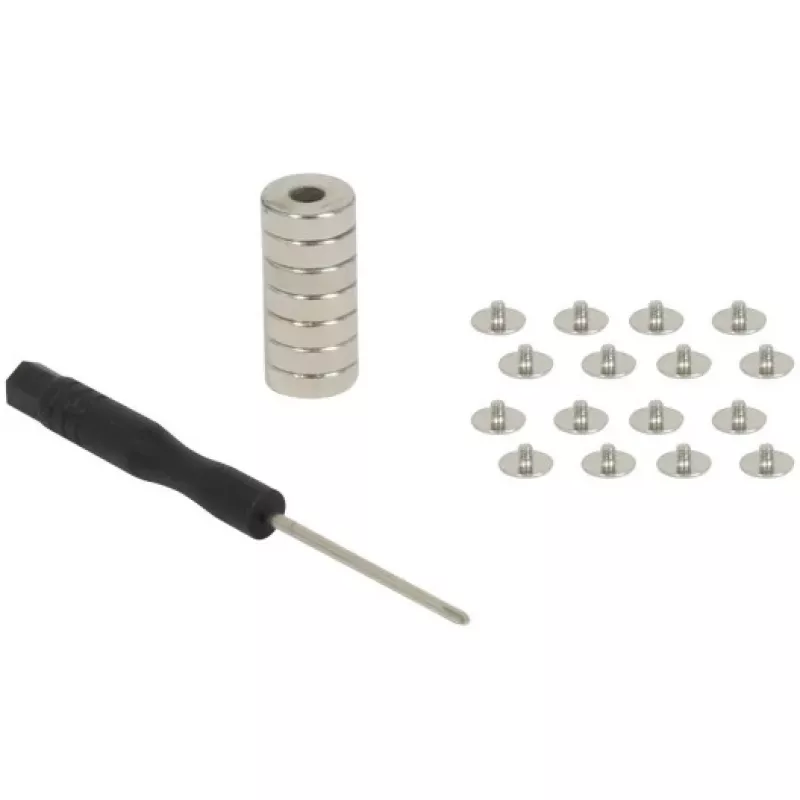

• Mounting method: magnetic attachment to installation frame; frame requires magnets to be mounted
• Installation frame external dimensions (for reference): 453 mm × 303 mm × 6 mm
• Intended environment: indoor wall or frame installation; drywall and wooden walls recommended

How to use

Fit the bezel to the matching installation frame by aligning the magnetic elements and allowing the bezel to sit flush over the tablet edge. The tablet is first secured to the installation frame via the VESA mounting points and then the combined unit is installed into a drywall or wooden wall opening of appropriate size. Ensure the magnets are positioned and fixed in the panel so the bezel mounts securely. Note that speakers located on the back of the tablet will have reduced sound quality and volume after recessed installation.

Recommendations

Use the bezel with compatible ALLNET 15" tablets and the specified installation frame dimensions. Prefer drywall or wooden mounting for reliable heat dissipation; full masonry walls are possible but may limit ventilation. Verify magnet placement in the frame before final installation and confirm VESA screw torque according to the tablet manufacturer’s mounting guidelines.
