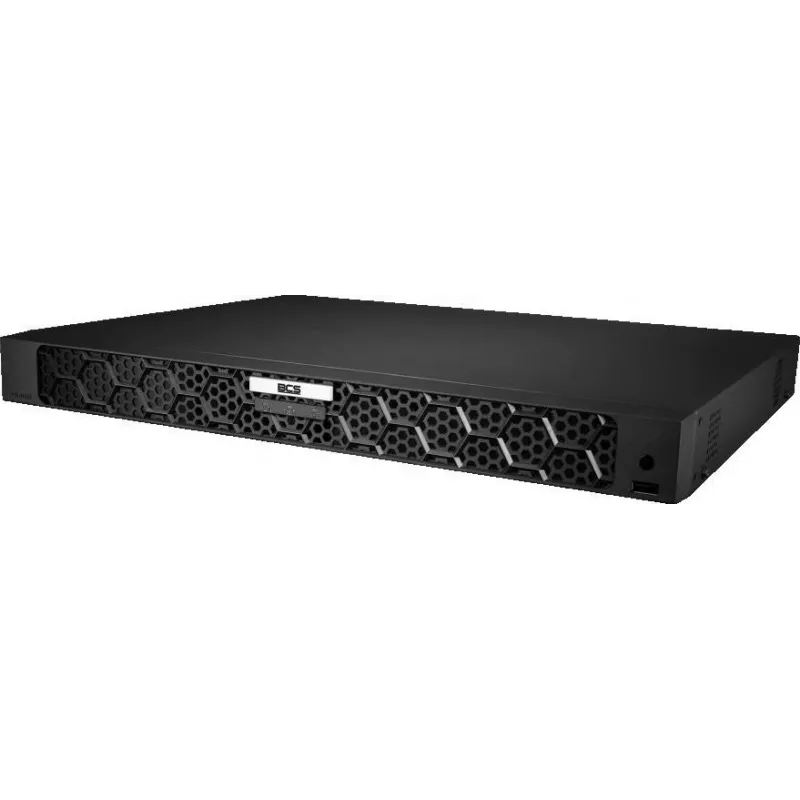

BCS POINT NVR1604-A-4K 16-Channel 4K NVR with 4 PoE Ports

The BCS POINT NVR1604-A-4K is a high-performance 16-channel network video recorder designed for professional surveillance systems. With support for up to 8MP (4K) resolution recording and H.265+ compression, it delivers exceptional video quality while saving bandwidth and storage. Equipped with 4 PoE ports, it simplifies installation by powering IP cameras directly. Ideal for small to medium-sized businesses, retail stores, and offices.

Advantages

Supports up to 16 IP cameras with 4 built-in PoE ports (IEEE 802.3af/at) for easy setup. H.265+ compression reduces storage requirements by up to 50% compared to H.264. HDMI output supports 4K resolution for crisp monitoring. Remote access via BCS Manager or DMSS mobile apps. Reliable embedded Linux operating system ensures stable 24/7 operation.

Suitable for

• Small to medium-sized businesses
• Retail stores and shops
• Office surveillance
• Warehouse monitoring
• Residential security systems

Key specifications

• Video Input: 16 IP channels
• PoE Ports: 4 (IEEE 802.3af/at)
• Max Recording Resolution: 8MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Bandwidth: 80 Mbps incoming / 60 Mbps outgoing
• HDD Bay: 1 SATA (up to 10 TB)
• Network: 1x RJ45 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: DC 48V / 1.25A
• Operating System: Embedded Linux
• Mobile App: BCS Manager, DMSS
• Decoding: 1ch@8MP (30fps) / 4ch@1080P (30fps)
• Recording Modes: Manual, Schedule, Stop
• Playback: 1/4/9/16 channels
• ONVIF: Profile S, T, G

Recommendations

For optimal performance, use with BCS POINT IP cameras and high-quality CAT6 Ethernet cables. Ensure adequate ventilation around the NVR. Regular firmware updates are recommended to maintain security and functionality.
