B-TECH AV SYSTEM X - Wall-to-Wall Mounting Brackets for BT8390 - 4pcs

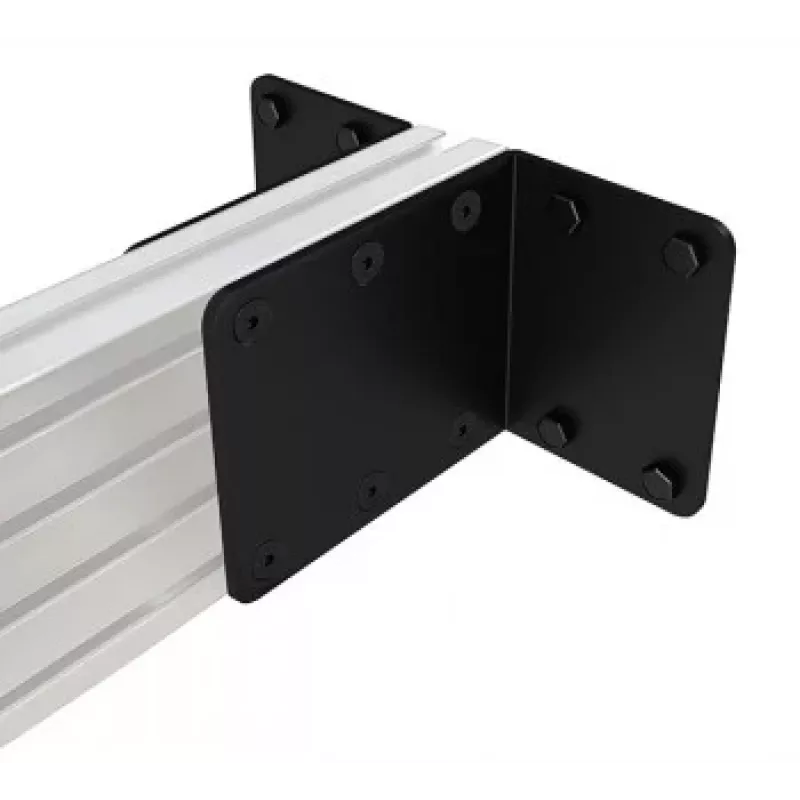

When installing System X columns in open spaces or between opposing walls, stability can be a challenge. These wall-to-wall mounting brackets solve that problem by securing BT8390 columns horizontally, creating a rock-solid framework for professional AV installations.

Who is it for

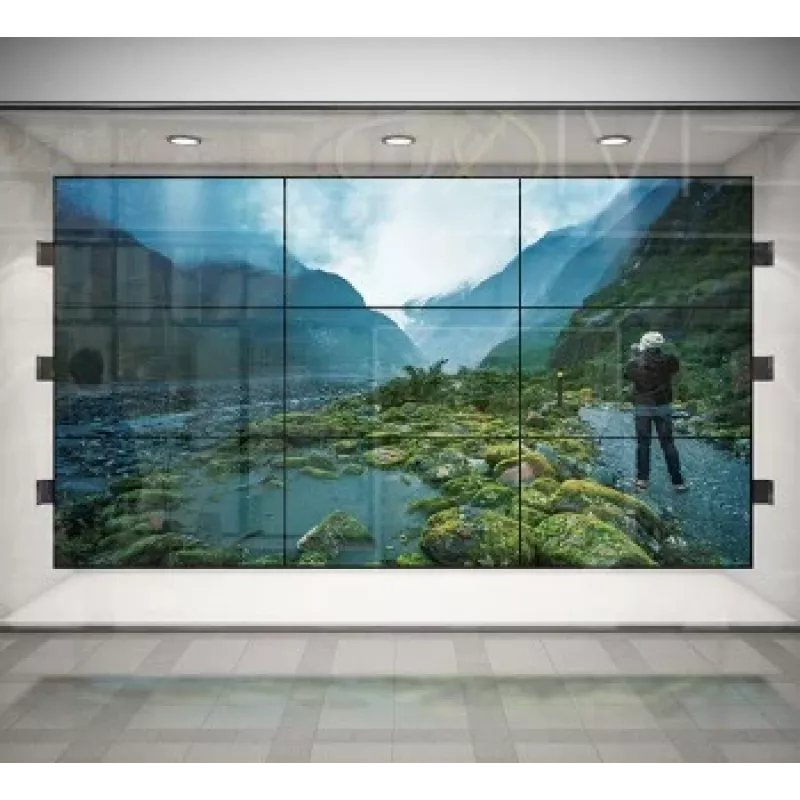

AV integrators and installers working on retail displays, commercial signage, or indoor digital signage projects that require a fixed, stable column setup between two walls. Ideal for modular System X configurations where columns must span a gap or be anchored at both ends.

Main features

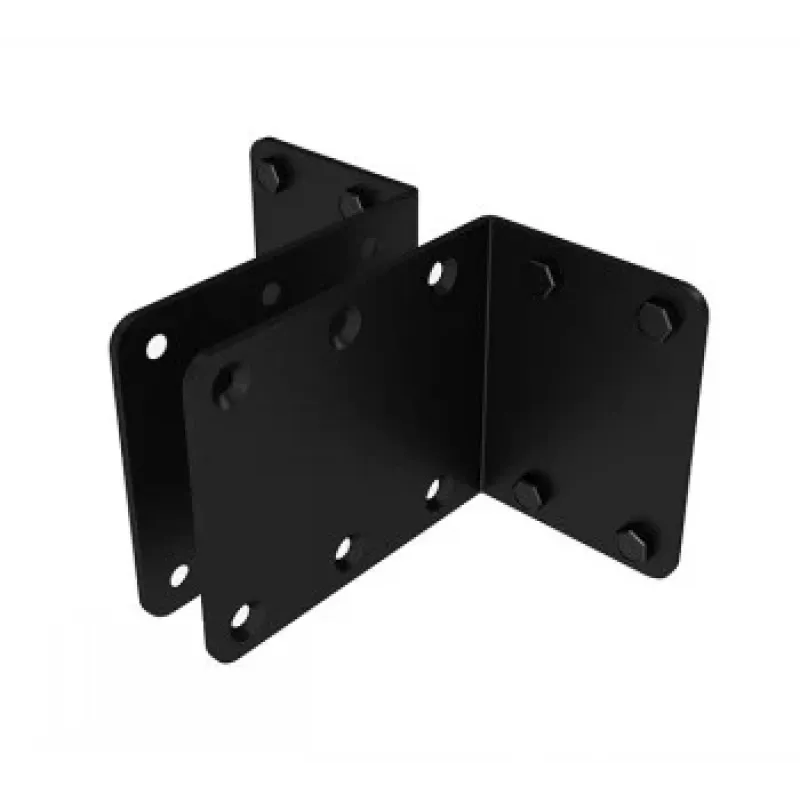

• Compatible with B-Tech System X BT8390 columns
• Pack of 4 steel brackets with durable black powder coat finish
• Simple 'hook-on' installation for quick column attachment
• Multi-point wall fixings included for enhanced security
• RoHS compliant, designed for indoor professional use

Specifications

• Product type: Wall-to-wall mounting brackets
• Compatible column model: B-Tech BT8390 System X
• Quantity per pack: 4 brackets
• Material: High-grade steel
• Colour: Black
• Finish: Durable powder coat
• Orientation: Horizontal (wall-to-wall setup)
• Mounting application: Secures System X columns between two opposing walls
• Installation: Fixed wall mounting
• Fixings: Supplied with wall fixings and column attachment hardware
• Weight per bracket: Approx. 0.21 kg
• Safety standard: RoHS compliant
• Application environment: Indoor

Tips

Ensure both walls are structurally sound and can support the load of the mounted equipment. For best results, use a spirit level during install.
