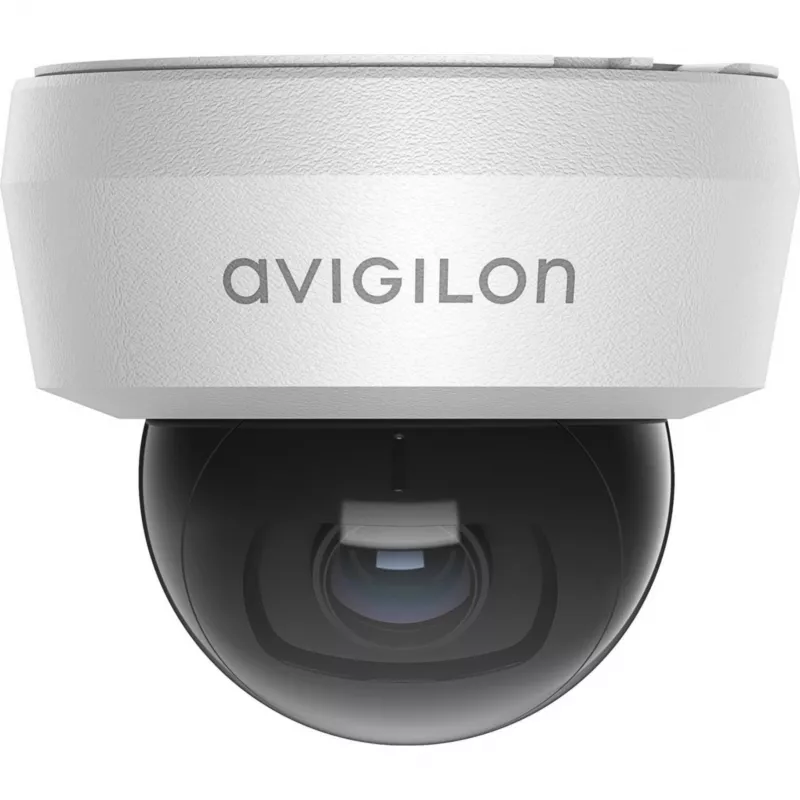

Avigilon 5.0MP H6 Mini Dome Camera WDR LightCatcher Day/Night - Network Camera

The Avigilon 5.0MP H6 Mini Dome Camera delivers exceptional image quality with 5.0 megapixel resolution and Avigilon's LightCatcher technology for superior low-light performance. Designed for indoor and outdoor surveillance, this vandal-resistant (IK10) and weatherproof (IP66) camera ensures reliable operation in demanding environments.

Advantages

With 120 dB Wide Dynamic Range, the camera captures clear details in high-contrast scenes. The built-in analytics, including Appearance Search and Unusual Motion Detection, enhance security monitoring. Power over Ethernet (PoE) simplifies installation, while the microSD slot supports local storage up to 256 GB.

Suitable for

• Retail stores and commercial buildings
• Office environments and warehouses
• Outdoor perimeters and parking lots
• Critical infrastructure requiring high-security surveillance

Key specifications

• Sensor: 5.0 MP, 1/2.7" Progressive Scan CMOS
• Lens: 2.8 mm fixed focal, 103° horizontal FOV
• Video Compression: H.265, H.264, MJPEG
• Max Frame Rate: 30 fps at 5MP
• Day/Night: Automatic IR cut filter
• Audio: Built-in microphone, audio line in/out
• Network: 10/100Base-T Ethernet (RJ-45)
• Power: PoE (IEEE 802.3af Class 3) or 12V DC
• Power Consumption: Max 6.5W (PoE)
• Environmental: IP66, IK10, -30°C to 60°C
• Analytics: Appearance Search, Unusual Motion Detection, Object Detection
• ONVIF: Profile S, G, T

Recommendations

For optimal performance, use a PoE switch or injector. The camera supports microSD cards up to 256 GB for edge storage. Pair with Avigilon Control Center software for advanced analytics and management.
