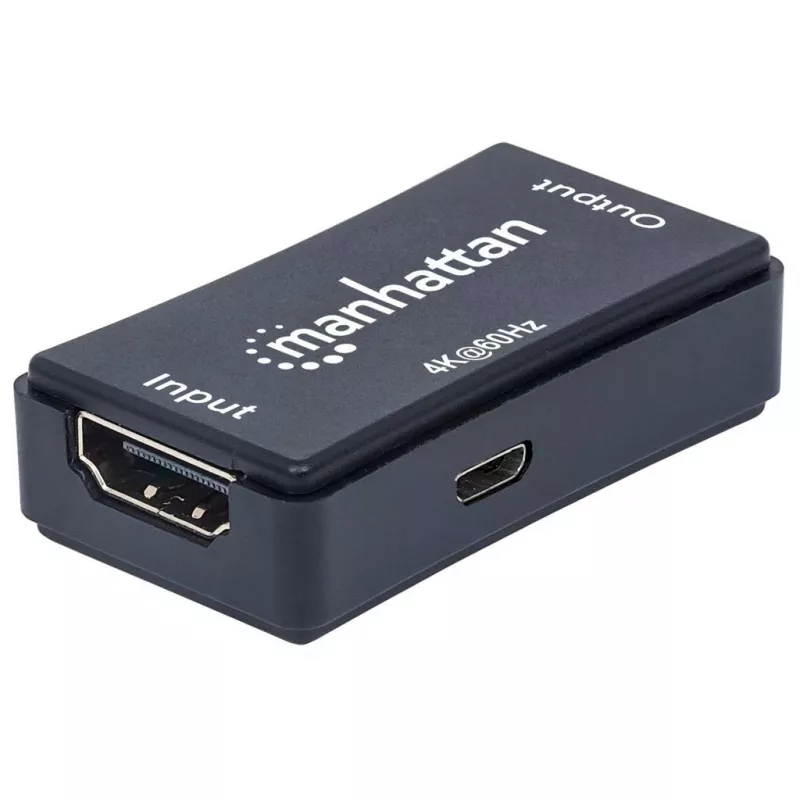

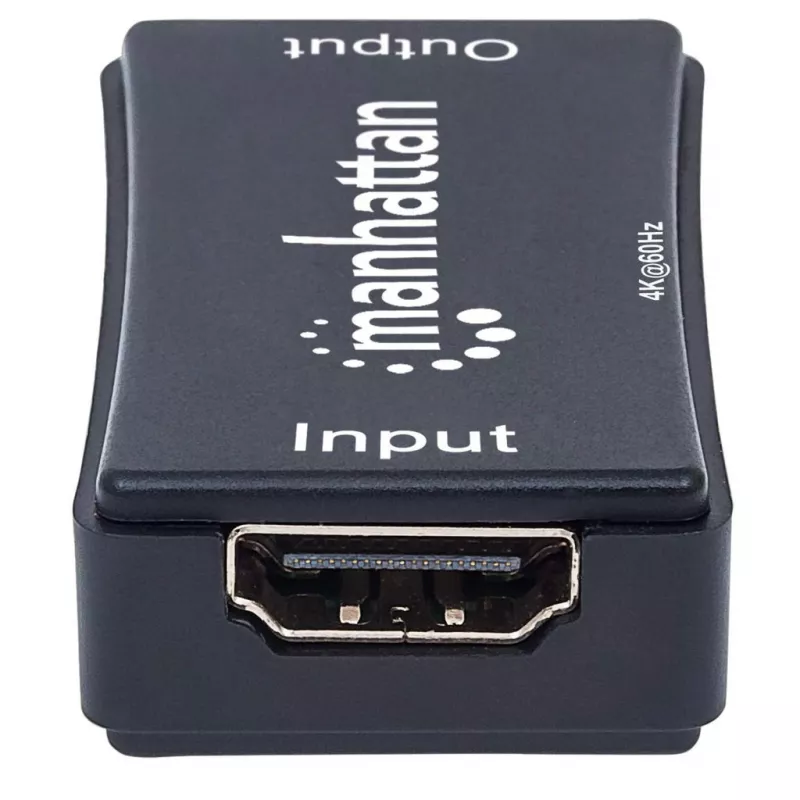

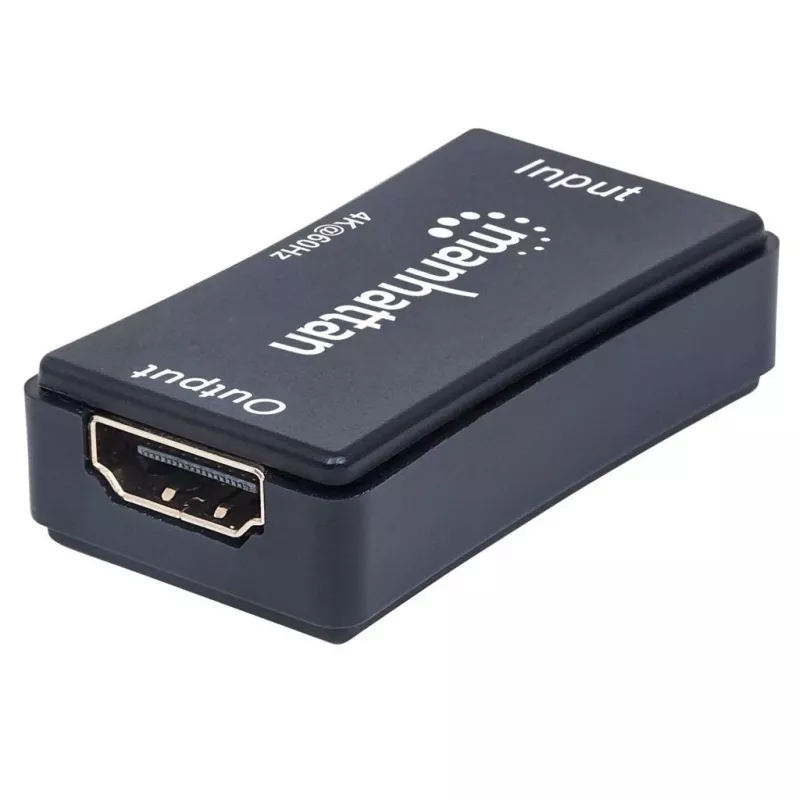

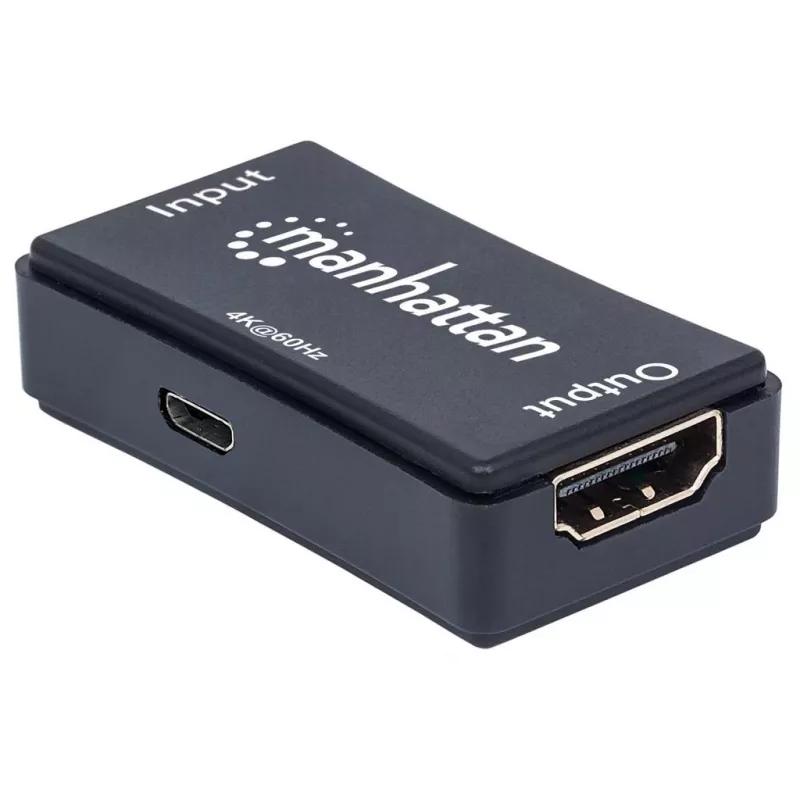

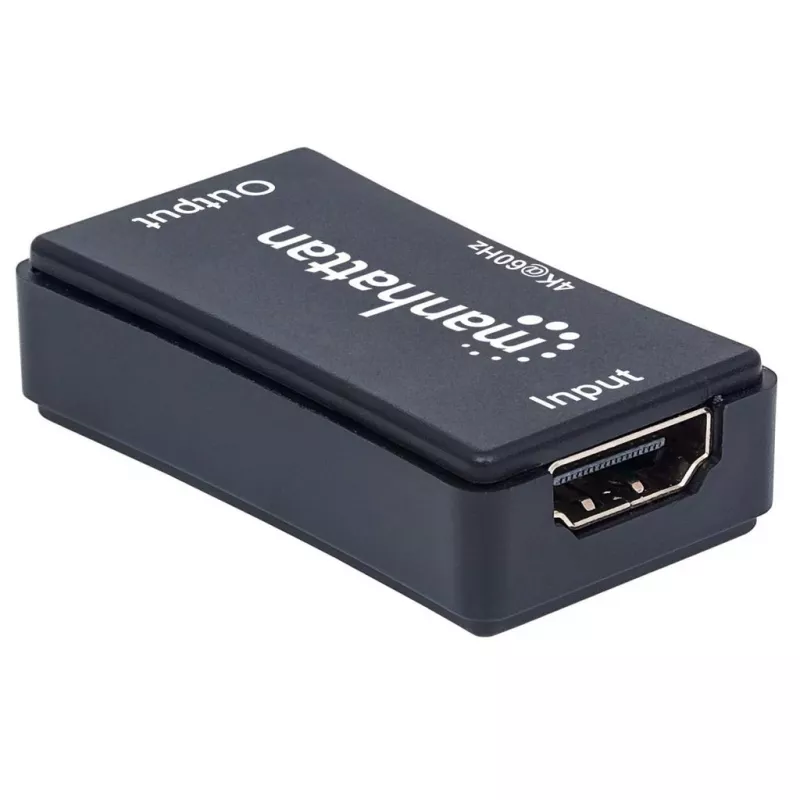

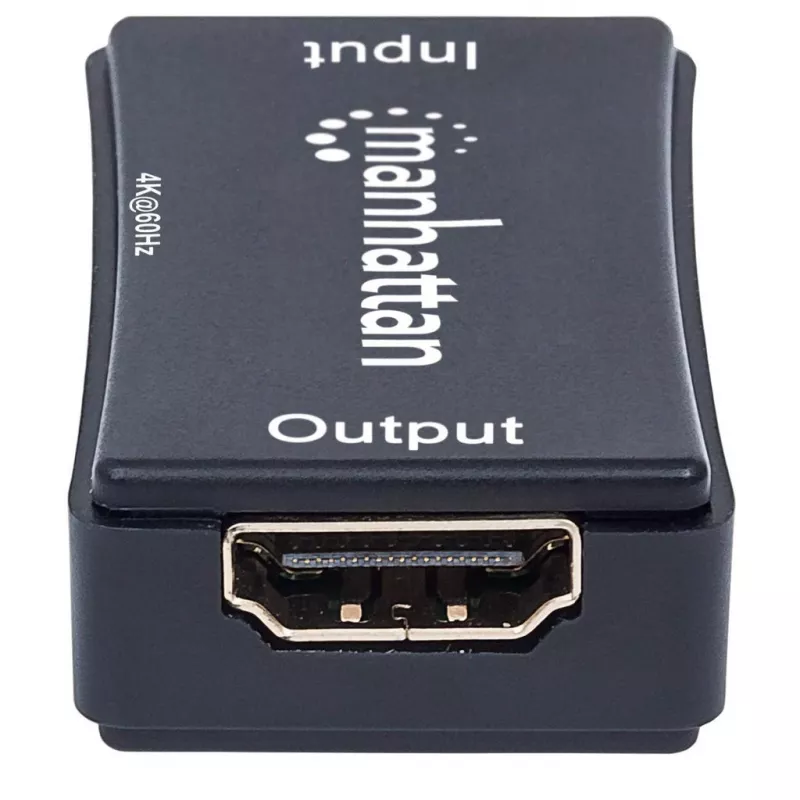

AV repeater Manhattan HDMI Repeater 4K@60Hz, 1xHDMI in/out, 600 MHz bandwidth, up to 40 m, micro‑USB power, black

The Manhattan AV Repeater HDMI Repeater 4K@60Hz extends HDMI connections by decoding and regenerating the signal to support resolutions up to 4096 x 2160 at 60Hz. Designed for plug-and-play use with most HDMI sources (game consoles, Blu-ray players, satellite receivers, digital recorders, etc.), it boosts weak signals to reduce picture noise and degradation when using existing HDMI cables. A Micro-USB port is provided to supply extra power to sources that need it for longer cable runs. The compact black unit measures 28 × 50 × 14 mm and supports a maximum transfer distance of up to 40 m.

Advantages

The repeater restores and amplifies HDMI signals to maintain 4K@60Hz quality over extended distances, reducing visual artefacts such as sparkles or signal dropouts. It is HDCP-compliant (HDCP 2.2) and compatible with HDMI and DVI 1.0 devices, requires no additional software, and installs quickly for most installations. Its small footprint and wired connectivity make it suitable for discreet placement near the midpoint of the cable run to optimise performance.

Suitable for

• Home theatre setups where displays must be placed far from the source
• Classrooms and lecture halls requiring reliable HDMI distribution
• Conference rooms and business offices for presentations
• Trade shows and retail displays with extended cable runs

Key specifications

• Type: AV repeater
• HDMI inputs: 1
• HDMI outputs: 1
• Maximum resolution: 4096 x 2160 @ 60Hz
• Maximum transfer distance: up to 40 m (131 ft.)
• Product colour: Black
• Dimensions: 28 × 50 × 14 mm
• Weight: 0.02 kg
• Compliance: HDMI, HDCP 2.2, DVI 1.0

How to use

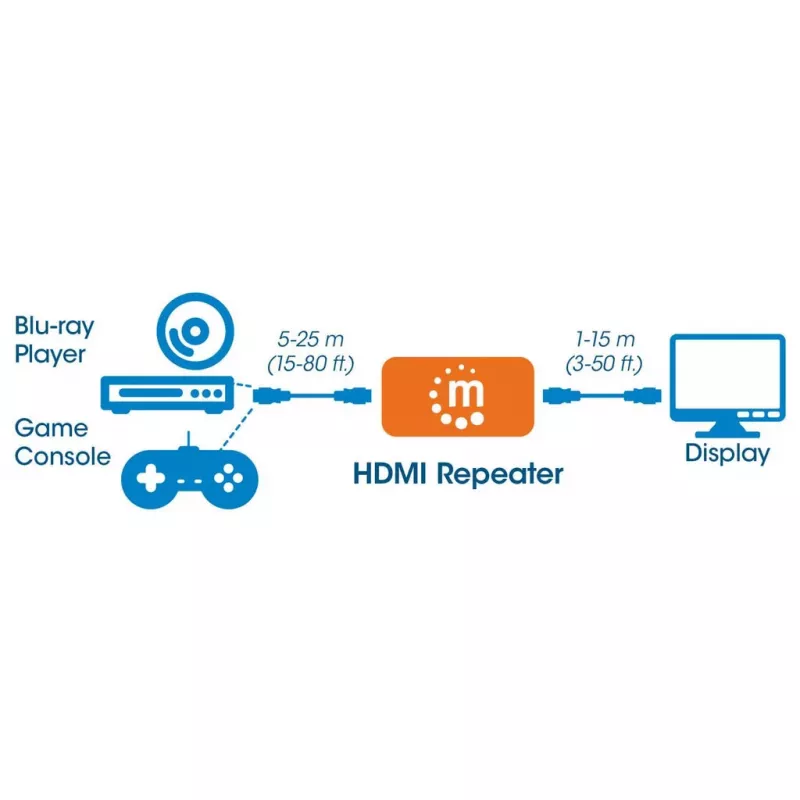

Connect the HDMI source to the repeater's HDMI input and plug the display into the HDMI output. Use high-quality HDMI cables for best results and position the repeater approximately midway along the total cable length (about 15–20 m) when extending to the maximum distance. If the source requires additional power over long runs, connect the included Micro-USB cable to the repeater's USB port and a USB power source.

Recommendations

For optimal performance, use high-quality, well-shielded HDMI cables and place the repeater near the middle of the cable run. Longer distances or low-quality cables can reduce signal quality; if issues persist, test with shorter cables and verify HDCP compatibility of connected devices.
