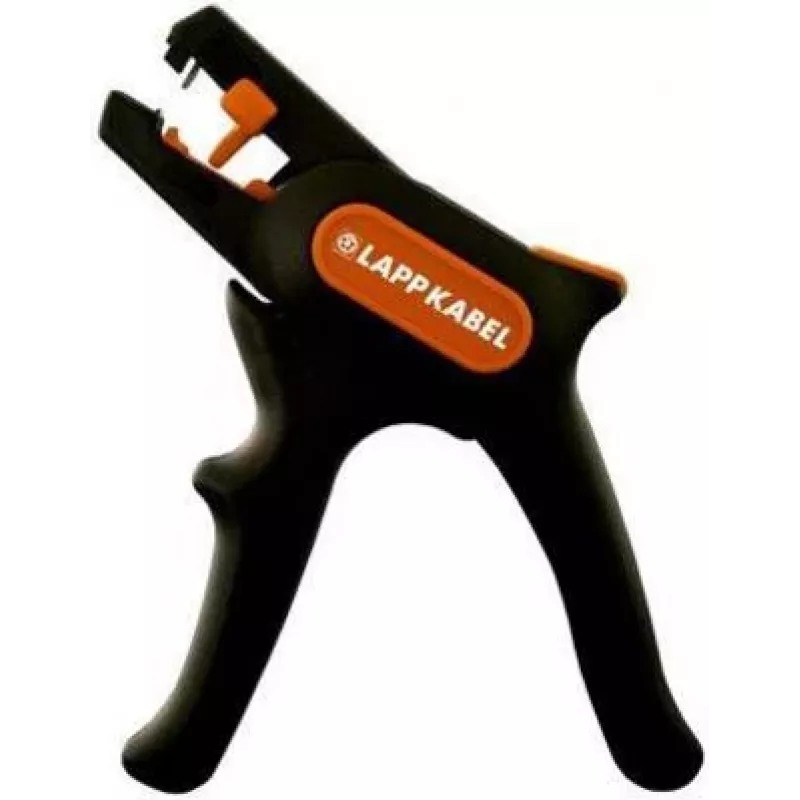

Automatic wire stripper Lapp 61725960 for conductors 0.2–6 mm², adjustable stripping length

Automatic wire stripper Lapp 61725960 is designed to remove PVC insulation from single- and multi-core conductors with cross-sections from 0.2 to 6 mm². The compact, hand-held tool offers an adjustable stripping length and consistent cutting action to speed up repetitive wiring tasks in electrical installation, control panel assembly and maintenance.

Advantages

The Lapp 61725960 provides reliable, repeatable stripping results for cables with PVC insulation and an adjustable stop to set the stripping length. Its automatic mechanism grips and strips conductors without manual scoring, reducing wire damage and saving time on repetitive jobs. The tool is compatible with a wide range of conductor sizes (0.2–6 mm²) to cover common installation needs.

Suitable for

Key specifications

How to use

Adjust the stripping length stop to the required dimension, insert the conductor into the stripper until it reaches the stop and operate the tool according to the built-in mechanism to grip and remove the PVC insulation. Check the stripped conductor for nicks or damage and re-strip if necessary. Follow usual safety procedures: disconnect power and ensure the conductor is de-energised before working.

Recommendations

Use the tool on PVC-insulated single- and multi-core conductors within the specified 0.2–6 mm² range. Do not attempt to strip conductors with non-PVC insulation or sizes outside the stated range. Regularly inspect the cutting elements for wear and replace the tool if stripping quality degrades.
