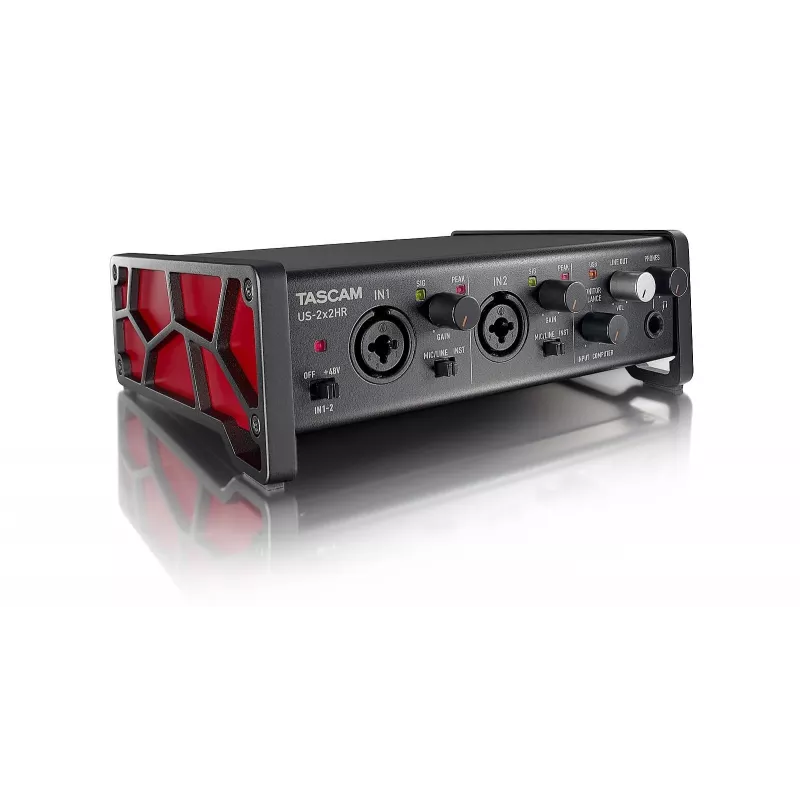

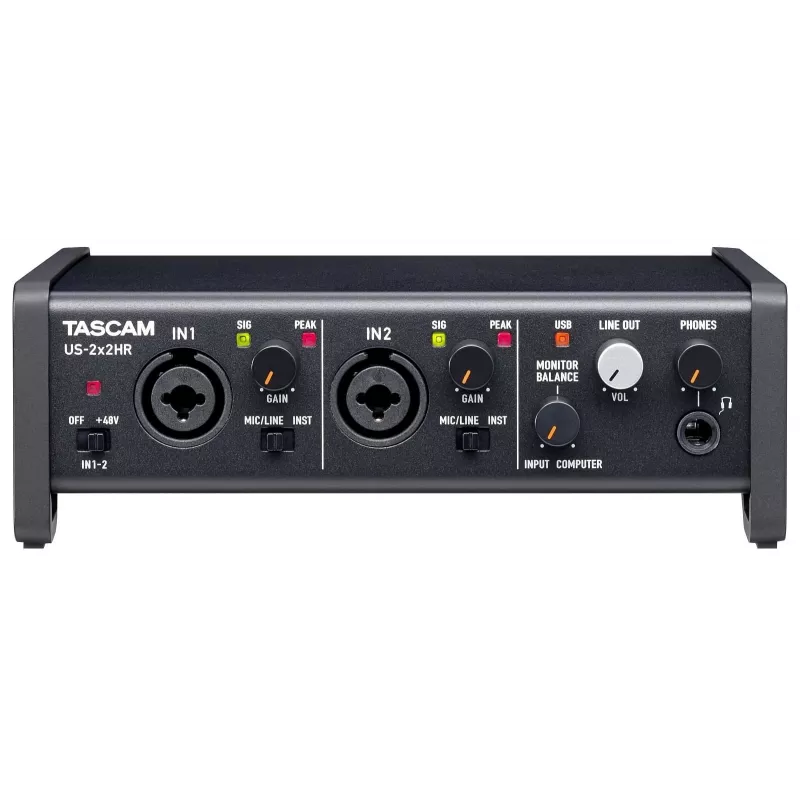

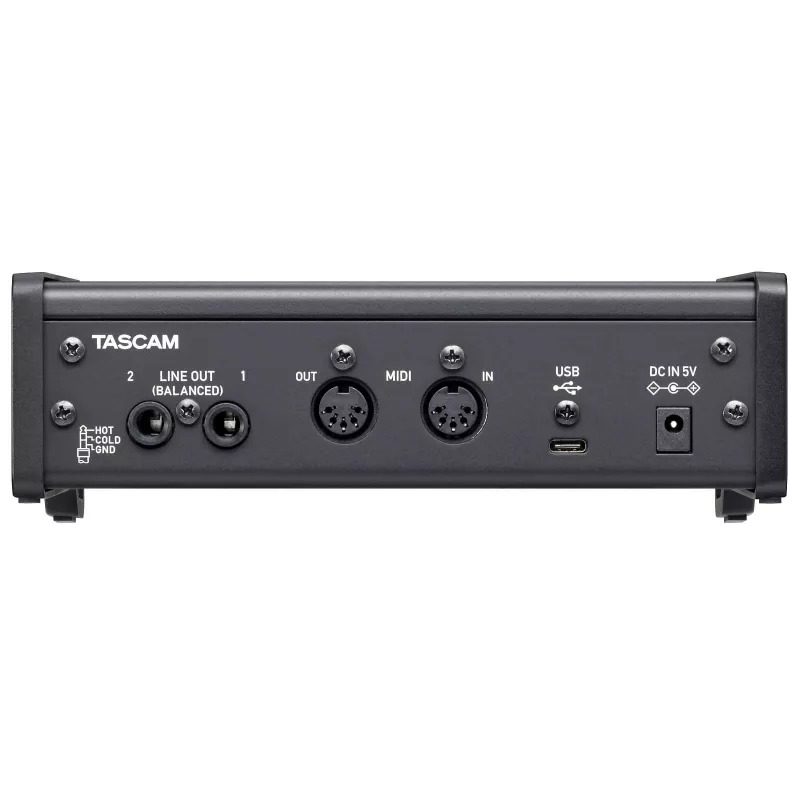

Audio interface Tascam US-2X2HR, 2 x XLR/combo inputs, 192 kHz, USB 2.0, MIDI In/Out, desktop, black

The Tascam US-2X2HR is a compact desktop audio interface offering two combo mic/line/instrument inputs, two balanced line outputs and MIDI I/O. It supports high-resolution audio up to 24-bit/192 kHz, features Ultra-HDDA mic preamps with 48 V phantom power and connects via USB Type-C to Windows, Mac, iPhone or iPad. Designed for home studios, mobile production and streaming, the unit includes a loopback function and bundled software for immediate use.

Advantages

The US-2X2HR delivers studio-quality sound with low noise and distortion thanks to Ultra-HDDA preamps and support for 24-bit/192 kHz resolution. Ultra-low latency operation (Windows buffer from four samples) and a robust USB Type-C connection enable reliable tracking and monitoring. The die-cast aluminum housing with an angled design provides stability and ergonomic access to controls. Included software and iOS compatibility make the interface versatile for music creation, podcasting and live streaming.

Suitable for

• Home recording for musicians and producers
• Mobile production with iPhone or iPad
• Podcast recording and live streaming (OBS Studio support, loopback)
• Small project studios requiring two inputs and MIDI connectivity

Key specifications

• Inputs: 2 x combo mic/line/instrument with Ultra-HDDA mic preamps (56 dB gain)
• Outputs: 2 x balanced line outputs
• Sample rate / bit depth: up to 24-bit / 192 kHz
• Power: USB bus powered, typical consumption 1.75 W
• Connectivity: USB Type-C, MIDI I/O
• Phantom power: 48 V on mic inputs
• Dimensions & weight: approx. 1.1 kg; colour: black

How to use

Connect the US-2X2HR to a computer or compatible iOS device using the provided USB Type-C cable (or appropriate adapter for iPhone/iPad). Plug microphones, instruments or line sources into the combo inputs and engage 48 V phantom power if using condenser microphones. Use the front-panel gain controls and monitor output to adjust levels and enable direct monitoring as needed. Install the bundled drivers and software on Windows or Mac, or use the included Cubasis LE on iPhone/iPad for mobile recording.

Recommendations

For best audio quality, set your DAW to the highest needed sample rate (up to 192 kHz) and use a low buffer size when tracking to benefit from the interface's ultra-low latency; increase buffer size for mixing to reduce CPU load. Ensure secure cable connections and place the interface on a stable surface to take advantage of the die-cast housing and angled design.
