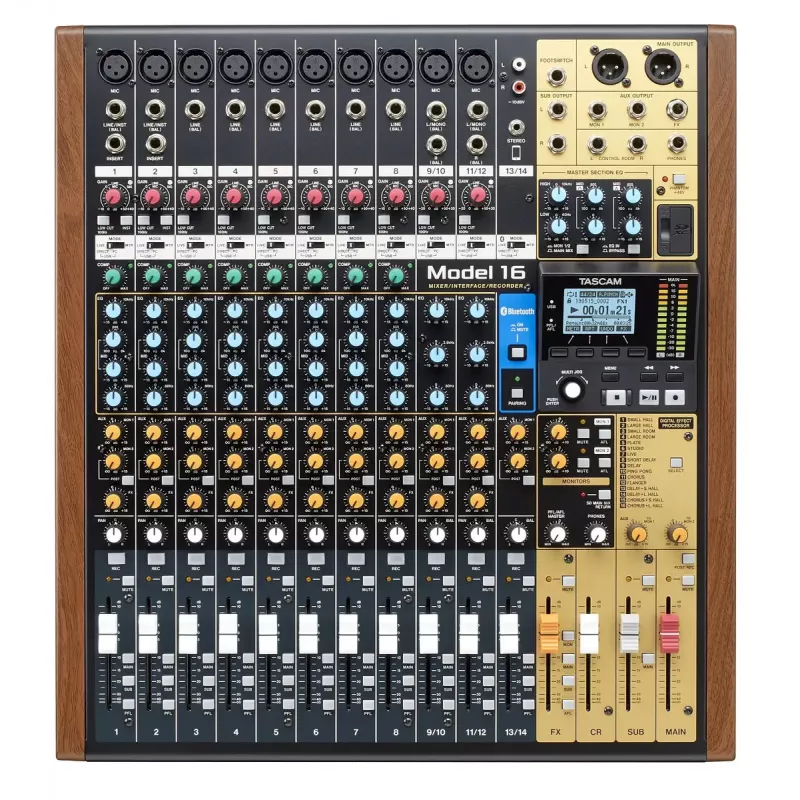

Audio mixer Tascam MODEL 16 — 16 channels, 24-bit DSP, 44.1/48 kHz, Bluetooth 5.0, USB Type-B, SD card reader

The Tascam Model 16 is an all-in-one analogue mixer, 16-channel USB audio interface and 16-track digital recorder designed for compact live performance, project-studio recording and production. It combines analogue mic preamps with an internal multi-track recorder, USB connectivity, Bluetooth input and built-in multi-effects to provide a complete mixing and recording solution in a single unit.

Advantages

The Model 16 offers 14 top-panel inputs that accept up to 10 microphones, 14 line signals or two instrument inputs, plus Bluetooth 5.0 and selectable RCA/stereo mini inputs for external playback devices. Inputs 1–8 use Tascam’s Ultra-HDDA mic preamp architecture for low-noise, transparent sound. A one-knob compressor, three-band EQ with sweepable mids and a push-button low-cut are provided per channel. Routing is flexible with three aux busses, PFL, a sub-group and a dedicated control-room output. The internal 16-track recorder captures 14 inputs plus the stereo mix to SD/SDHC cards at 48 kHz/24-bit, while the built-in USB audio interface provides 16 inputs and 14 outputs for DAW integration with low-latency drivers. Sixteen editable multi-effects and a four-band master EQ expand tonal shaping and monitoring options.

Suitable for

• Small live bands and stage mixes
• Project-studio tracking and overdubs
• Podcasting, spoken-word and meeting recording
• Rehearsals and worship services

Key specifications

• Channels: 16 (14 top-panel inputs accessible)
• Digital recorder: 16-track internal recorder, records 14 inputs + stereo mix to SD/SDHC card
• Sampling resolution: 24-bit / 48 kHz (supports 44.1 kHz as indicated in product title)
• Mic input impedance: 1800 Ω
• Nominal input level: 79 dBu
• USB audio interface: 16 in / 14 out, low-latency driver support
• Effects: 16 editable multi-effects (reverb, delay, chorus, flanger, etc.)
• Monitoring/routing: 3 Aux buses, PFL, Sub group, Control Room output, headphone 6.3 mm jack
• Storage: SD / SDHC card support up to 512 GB
• Power: AC 100–240 V, 50–60 Hz, 40 W
• MPN / EAN: MODEL 16 / 4907034131266

How to use

Connect microphones, instruments or line sources to the top-panel inputs and set each channel’s input selector (Live/PC/MTR) to choose the appropriate source. Use the Gain knob and the one-knob compressor on channels 1–8 to set input levels and control dynamics, and shape tone with the three-band EQ and low-cut filter. Route monitor mixes or external effects using the three Aux busses and assign sub-group or control-room outputs as needed. For multi-track recording, insert an SD/SDHC card, set the recorder channels and record at 48 kHz/24-bit; overdubs and punch-in/out are available from the recorder section. To record to a DAW, connect via USB and select the Model 16 as your audio device, then use the provided low-latency driver settings for minimal buffer size.

Recommendations

For stable recording sessions, use a high-quality SD/SDHC card (class 10 or higher) up to 512 GB, keep firmware and USB drivers up to date for lowest latency, and set appropriate gain staging on Ultra-HDDA mic preamps to maintain clean, low-noise recordings.
