Audio Intercom System DoorBird A1061W

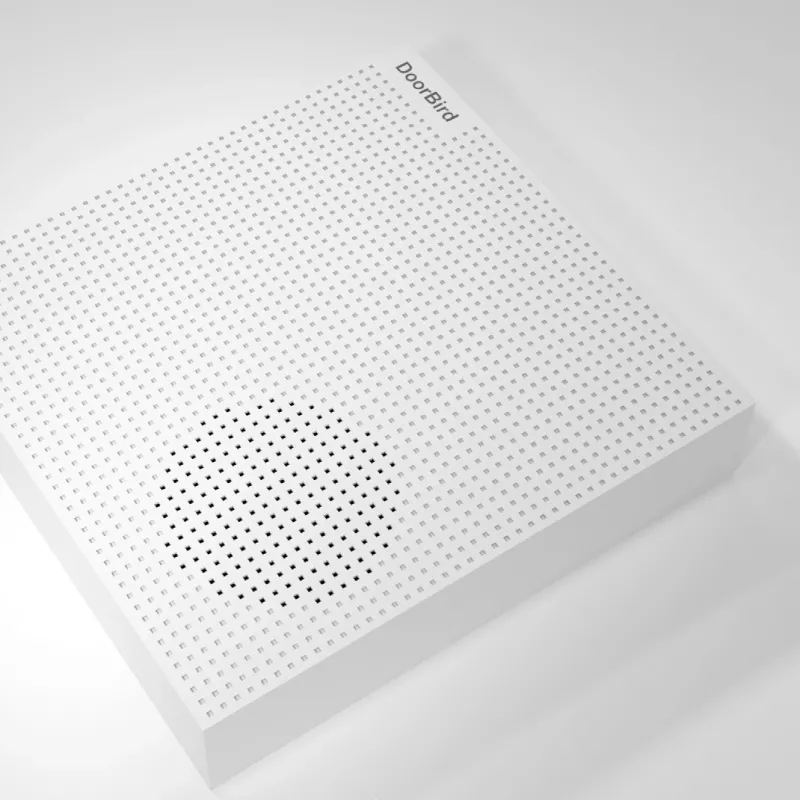

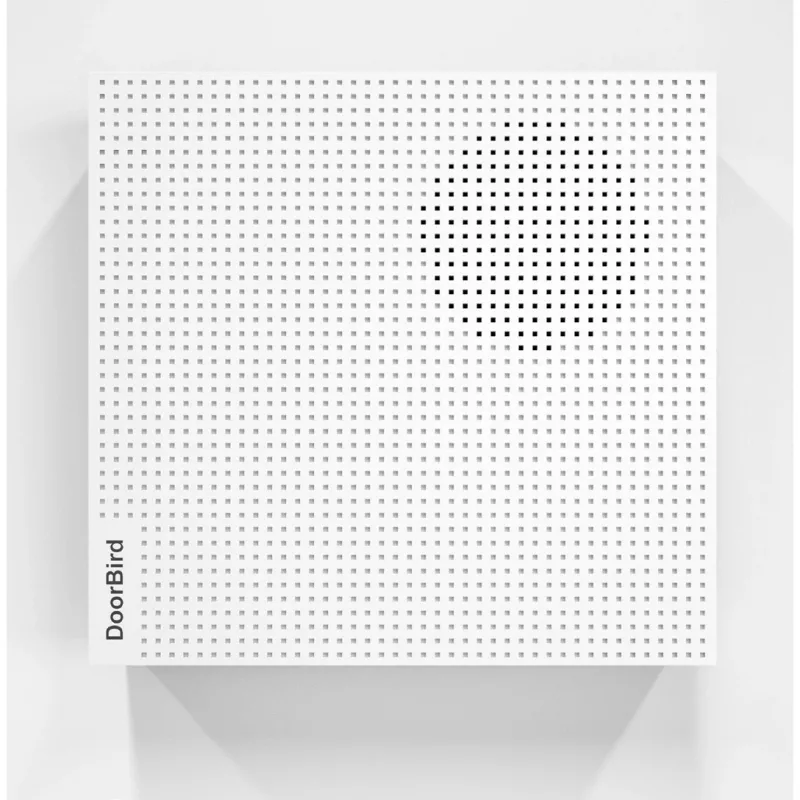

The DoorBird IP Door Chime (Audio Intercom System DoorBird A1061W) is a compact, network-capable chime designed to complement DoorBird door stations. The unit is finished in white polycarbonate and can be mounted on a wall or ceiling. It connects to the home network via Wi‑Fi or Ethernet (RJ‑45) and can be powered either by a separate power source or via Power-over-Ethernet (PoE). Configuration and control (volume, ringtones, do-not-disturb schedules) are performed in the DoorBird App.

Advantages

The DoorBird A1061W supports flexible network options (wireless or wired) and PoE power for simplified installation. It allows assigning separate ringtones per DoorBird door station and supports unlimited pairings between door stations and chimes. The device can function solely on the local network if the Internet connection is temporarily unavailable, and it accepts a two‑wire connection for a storey-call button with its own ringtone profile.

Suitable for

• Home entrances where a separate indoor chime is required
• Multi‑apartment buildings needing distinct ringtones per door or apartment
• Installations requiring PoE or flexible Wi‑Fi/Ethernet connectivity
• Setups that should continue operating locally when Internet is down

Key specifications

• Model: DoorBird A1061W (Audio Intercom System DoorBird A1061W)
• Material: Polycarbonate
• Color: White
• Network: IEEE 802.11b/g/n; RJ‑45 Ethernet
• Power options: Standard power supply or Power-over-Ethernet (PoE)
• Dimensions: 119 mm (W) × 26 mm (D) × 125 mm (H)
• Certifications: CE, FCC, IC
• MPN/EAN: A1061W / 4260423860353

How to use

Mount the chime on a wall or ceiling near the desired listening area and connect it to your network by Wi‑Fi or with an RJ‑45 cable. If PoE is available, connect via Ethernet to both power and network. Install the DoorBird App on a smartphone or tablet, add the chime in the app, and follow the in‑app steps to assign ringtones, adjust volume, and set do‑not‑disturb time ranges. Optionally, connect a two‑wire storey-call button and configure its ringtone profile in the app.

Recommendations

For reliable operation place the chime within good Wi‑Fi coverage or use a wired Ethernet/PoE connection; keep the DoorBird App updated and configure distinct ringtones to quickly identify which door station or apartment triggered the chime.
