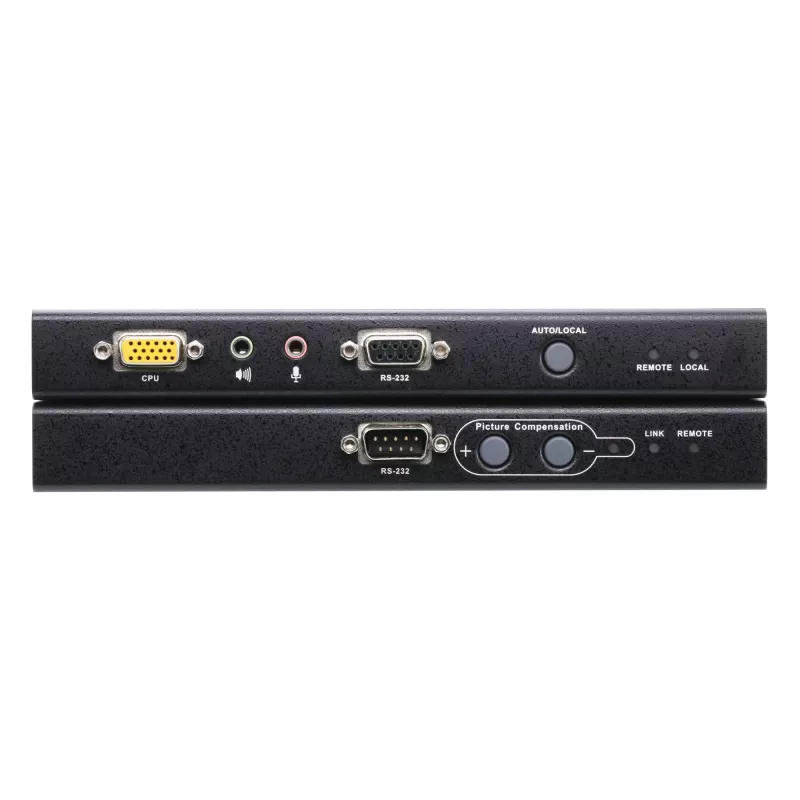

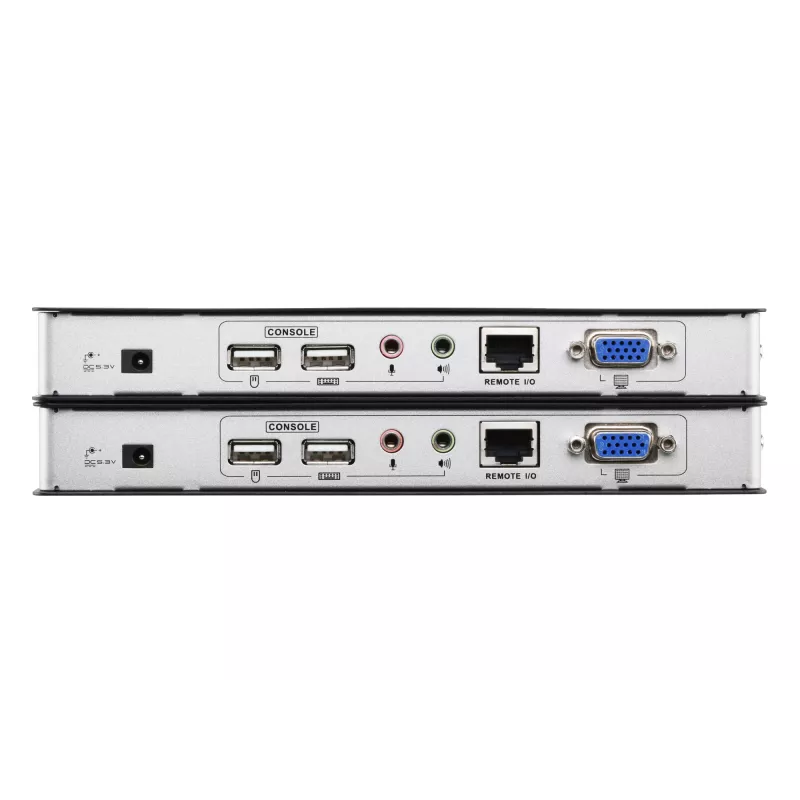

ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons

ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons
R6,794
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).Because it allows access to a computer system from a remote console, the CE750A is perfec... Read More
Stock 6 Code 1178266 Brand ATEN Model CE750A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).

Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.

The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).

ATEN USB VGA KVM Extender with Audio and RS-232 (200m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 200 m. Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. Transmitter width: 8.63 cm, Transmitter depth: 20.2 cm, Transmitter height: 2.5 cm

Key Highlights
  • Local and Remote units connect at distances up to 200 meters using Cat 5e cable
  • Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Built-in ASIC for greater reliability and compatibility
  • USB keyboard and USB mouse ports
  • RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
  • Supports stereo speakers and stereo microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes
  • Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
  • Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
  • High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install – no software required, simply connect cables to the devices
  • Supports wide screen formats*
  • * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays, connect the monitor to the local video output port or use an ATEN EDID emulator.
  • Transmitter & receiver
  • Wired Maximum transfer distance: 200 m
  • Maximum digital resolution: 1920 x 1200 pixels
  • Material: Metal
  • Transmitter local keyboard/mouse port type: USB
  • Receiver local video port type: VGA Receiver local keyboard/mouse port type: USB
  • Black
Specifications
Cable types supported
Cat5
Certification
RoHS
Connectivity technology
Wired
KVM port selection
Push-buttons
Material
Metal
Maximum digital resolution
1920 x 1200 pixels
Maximum transfer distance
200 m
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Product colour
Black
Receiver depth
20.2 cm
Receiver height
2.5 cm
Receiver local keyboard/mouse port type
USB
Receiver local video port type
VGA
Receiver weight
470 g
Receiver width
8.51 cm
Storage temperature (T-T)
-20 - 60 °C
Transmitter depth
20.2 cm
Transmitter height
2.5 cm
Transmitter local keyboard/mouse port type
USB
Transmitter local video port type
VGA
Transmitter weight
470 g
Transmitter width
8.63 cm
Type
Transmitter & receiver

Manual

Open Manual

Leaflet

Open Leaflet
