ATEN UC3310-AT-G video capturing device USB 3.2 Gen 1 (3.1 Gen 1)

The ATEN CAMLIVE MX (UC3310) is a video capturing device and seamless UVC matrix that converts up to two 4K@30 USB camera sources into a single HDMI output while simultaneously providing a 1080p@30 UVC stream for live broadcasting. Designed for video conferencing and streaming, the device supports popular platforms such as Microsoft Teams, Zoom, OBS, XSplit, YouTube, Facebook, GoToWebinar and Twitch. It features a metal housing, USB 3.2 Gen 1 connectivity and supports audio sampling at 48 kHz.

Advantages

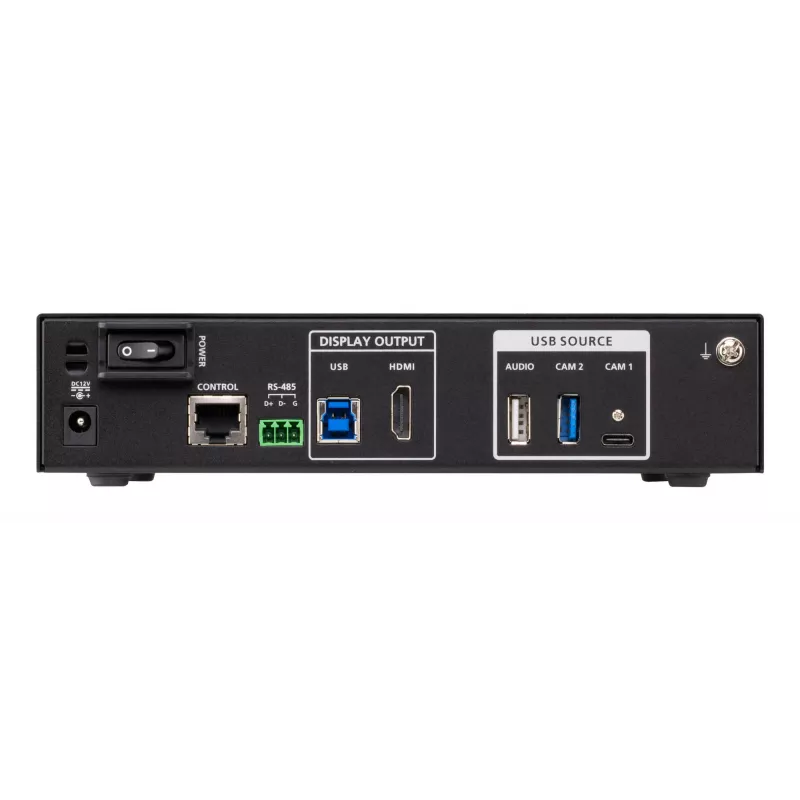

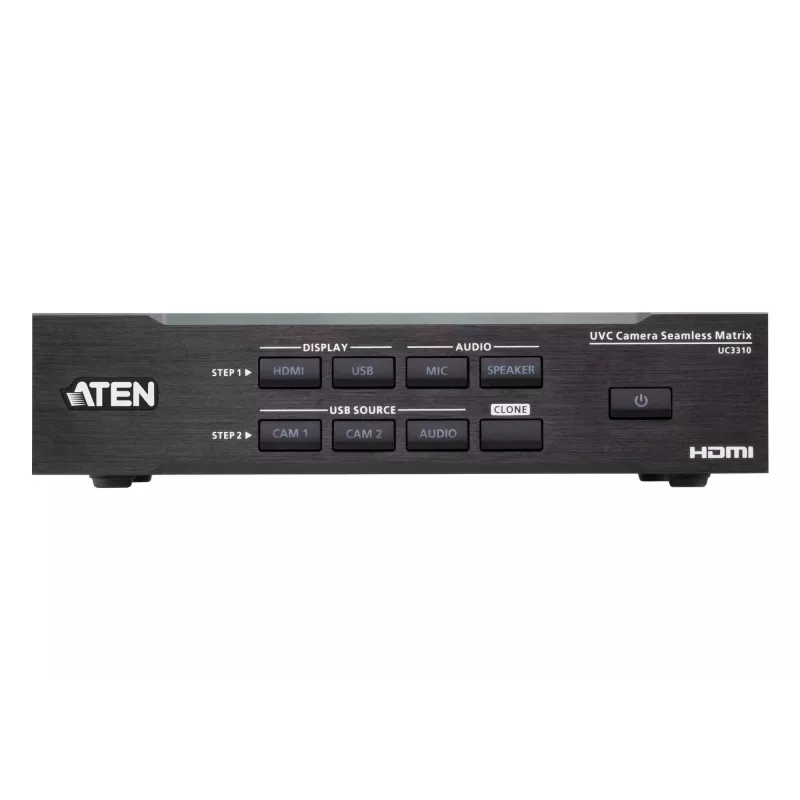

The CAMLIVE MX offers seamless source switching between two 4K USB cameras with pushbutton control on the front panel and provides a simultaneous 1080p@30 UVC output for streaming software without requiring additional drivers. It includes RS-232 for integration with ATEN VK series and other control systems, RS-485 with VISCA protocol support for PTZ camera control, and an optional rack mount kit for flexible installation. Plug-and-play operation on major operating systems (Windows 10 and macOS 10.1 and later) simplifies setup for professional and content-creator environments.

Suitable for

• Live streaming and content creation with multiple USB cameras
• Video conferencing and hybrid meetings on platforms like Teams and Zoom
• Educational broadcasting, webinars and online training
• PTZ camera setups requiring VISCA control

Key specifications

• Model: ATEN UC3310 (CAMLIVE MX)
• Inputs: up to two USB camera sources (supports 4K @ 30)
• Outputs: HDMI (single) and UVC 1080p @ 30 for streaming
• Interface: USB 3.2 Gen 1
• Audio: supports 48 kHz sampling rate
• Control: RS-232 integration; RS-485 with VISCA protocol for PTZ
• Housing: metal; colour: black
• Weight: 0.98 kg

How to use

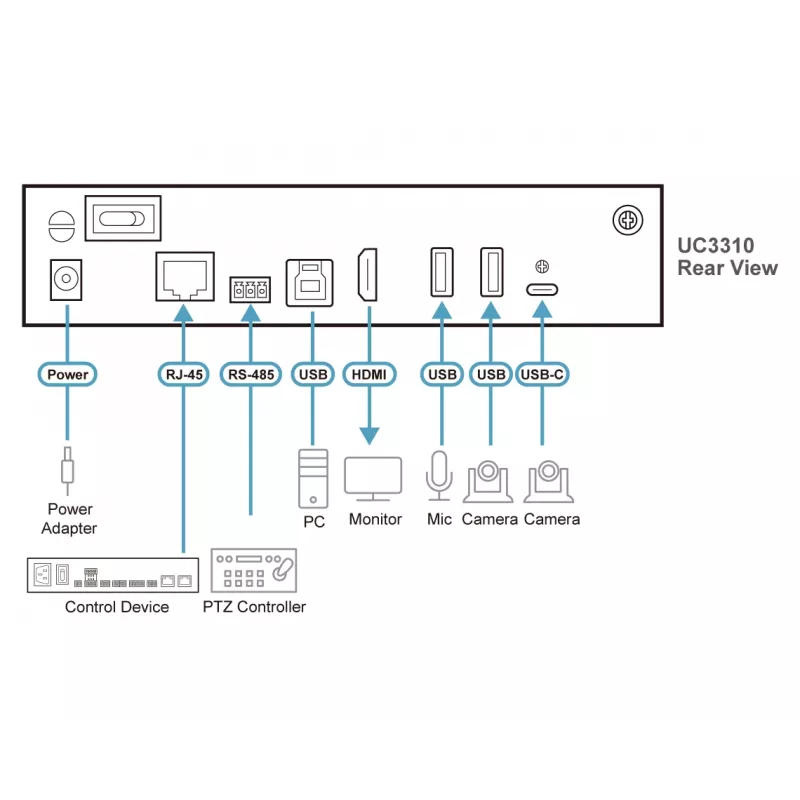

Connect up to two USB cameras to the CAMLIVE MX inputs and connect the HDMI output to a display or switcher. Use the front-panel pushbuttons to switch seamlessly between camera sources for the HDMI output. For streaming, connect the CAMLIVE MX to a host computer via USB 3.2 Gen 1 to enable the 1080p@30 UVC output, then select the device within your streaming or conferencing software. If needed, connect RS-485 for VISCA PTZ control and RS-232 for external control system integration. No driver installation is required for standard operation on supported operating systems.

Recommendations

For best results, use USB 3.2 Gen 1 compatible ports and high-quality 4K-capable USB cameras. Ensure your streaming PC meets recommended specifications for 1080p encoding and use shielded cables for HDMI and USB connections to reduce interference. When integrating PTZ cameras, verify VISCA settings and test RS-232/RS-485 control before live events.
