ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
R12,523

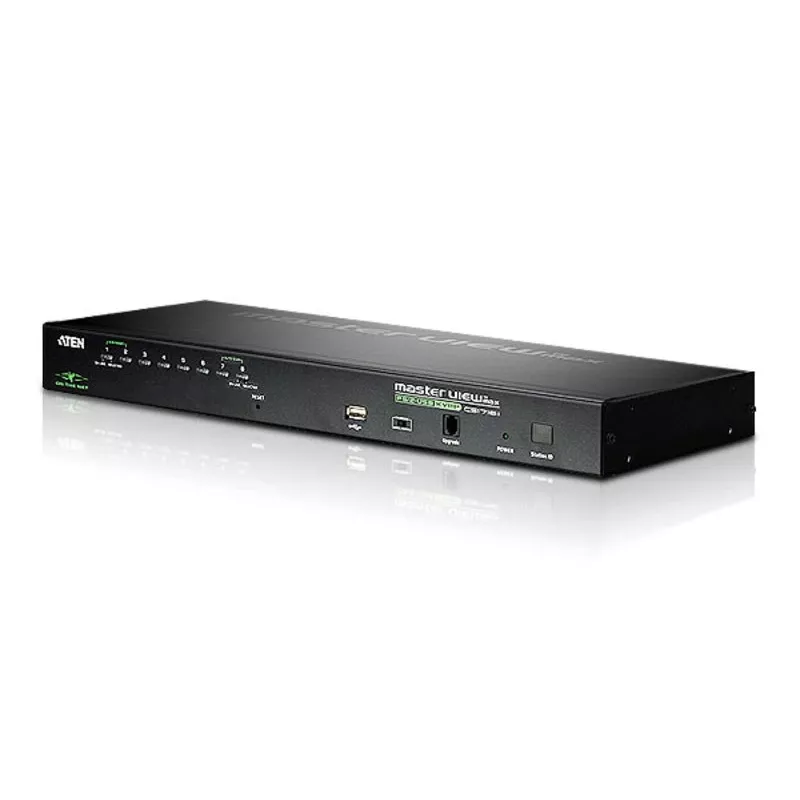

The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN The special KVM cables an... Read More
Stock 4 Code 1178636 Brand ATEN Model CS1708I-AT-G Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 128.
1x CS1708i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

ATEN 8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Security algorithms: 128-bit RC4, RSA, SSL/TLS. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 9.5 W

Key Highlights
  • Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
  • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
  • Rack mounting 1U Black
  • Number of computers controlled: 128
  • Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
  • QXGA 2048 x 1536 pixels
  • Housing material: Metal
  • Hot keys
  • DC 9.5 W
Specifications
Built-in display
No
Cables included
DC, KVM
Compliance certificates
RoHS
Console ports
VGA (D-Sub)
Console USB ports quantity
1
Daisy chain
Yes
DC-in jack
Yes
DDC2B support
Yes
Depth
159.6 mm
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Firmware upgradeable
Yes
Harmonized System (HS) code
85176200
HD type
QXGA
Height
44 mm
Hot keys
Yes
Hot-Plug support
Yes
Housing material
Metal
Input voltage
5.3 V
Keyboard port type
USB, PS/2
LED indicators
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Manual
Yes
Master (outer) case gross weight
12.1 kg
Master (outer) case height
258 mm
Master (outer) case length
565 mm
Master (outer) case net weight
10.3 kg
Master (outer) case width
375 mm
Maximum resolution
2048 x 1536 pixels
Mouse port type
USB, PS/2
Number of computers controlled
128
Number of users
32 user(s)
On Screen Display (OSD)
Yes
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Package depth
540 mm
Package height
233 mm
Package weight
3.83 kg
Package width
116 mm
Power consumption (typical)
9.5 W
Power source
DC
Product colour
Black
Products per master (outer) case
3 pc(s)
Push button
Yes
Quick installation guide
Yes
Rack capacity
1U
Rack mount kit
Yes
Rack mounting
Yes
Scan interval
1,255 s
Security algorithms
128-bit RC4, RSA, SSL/TLS
Software included
Yes
Storage temperature (T-T)
-20 - 60 °C
USB connector type
USB Type-A
Video port type
VGA
Weight
3.42 kg
Width
437.2 mm
Windows operating systems supported
Yes

Leaflet

Open Leaflet
