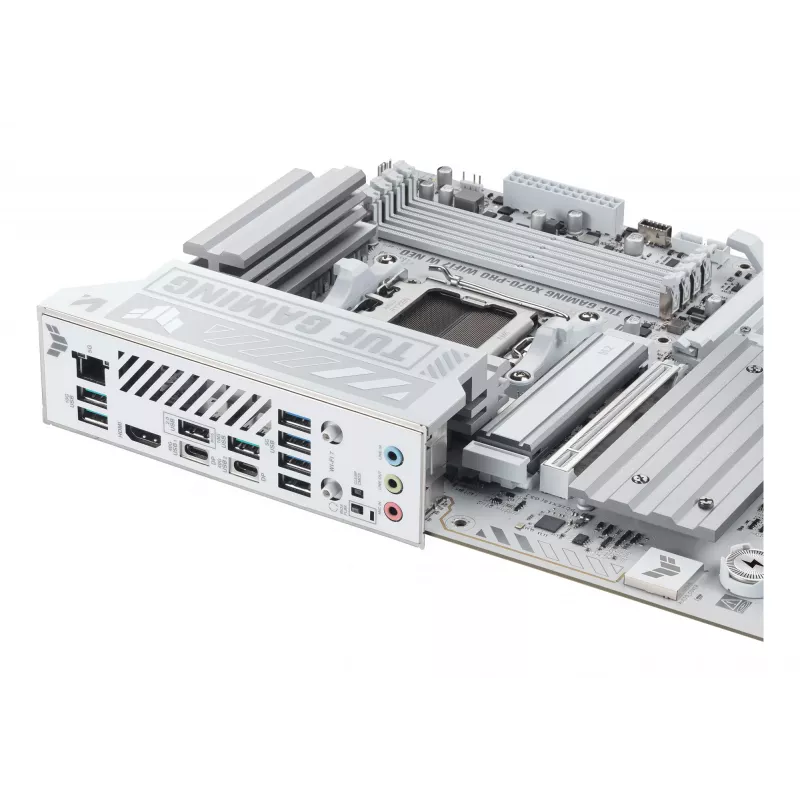

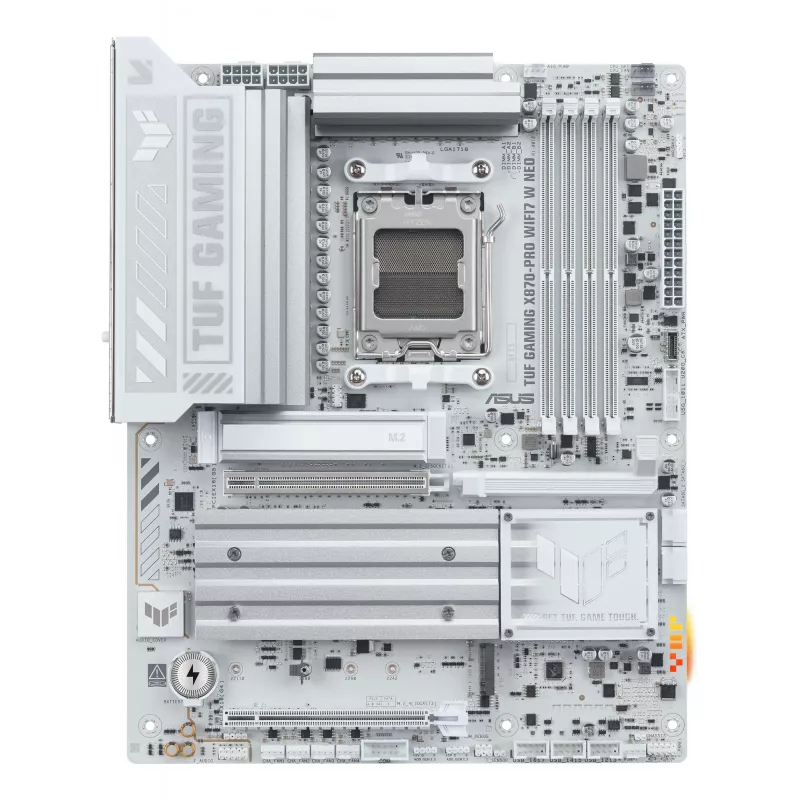

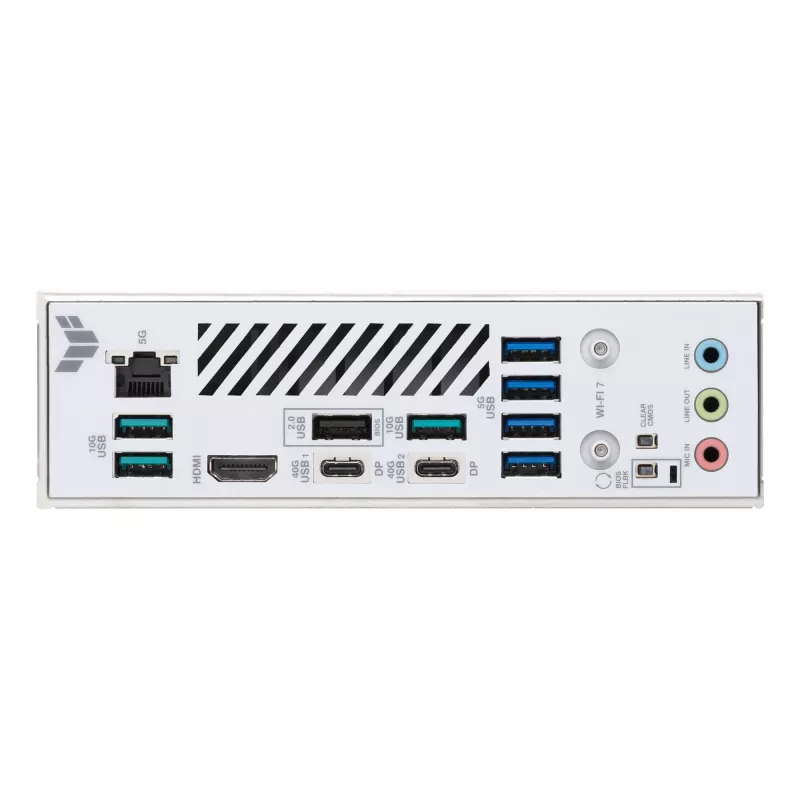

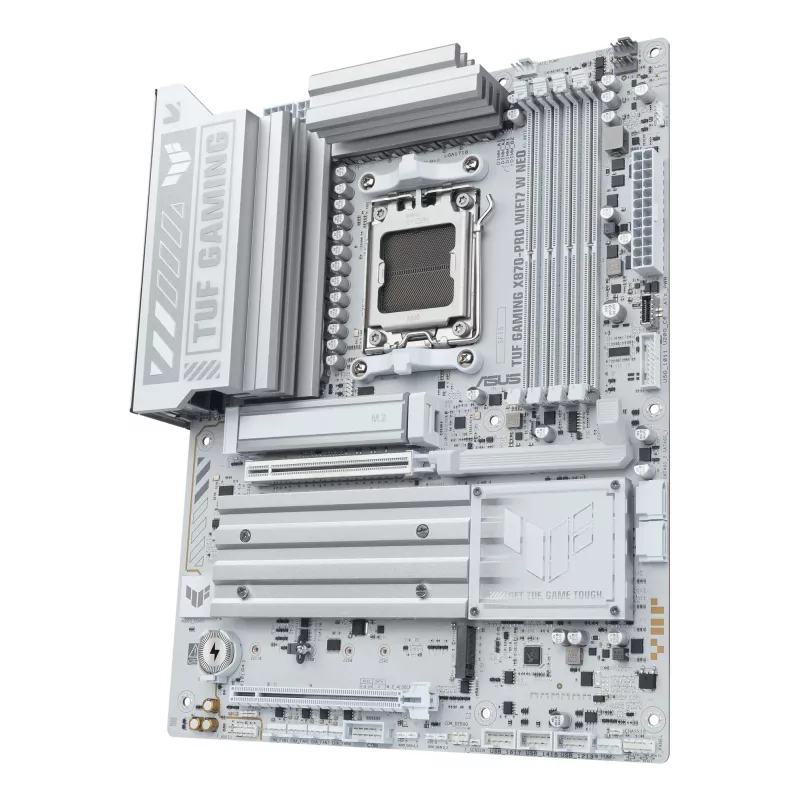

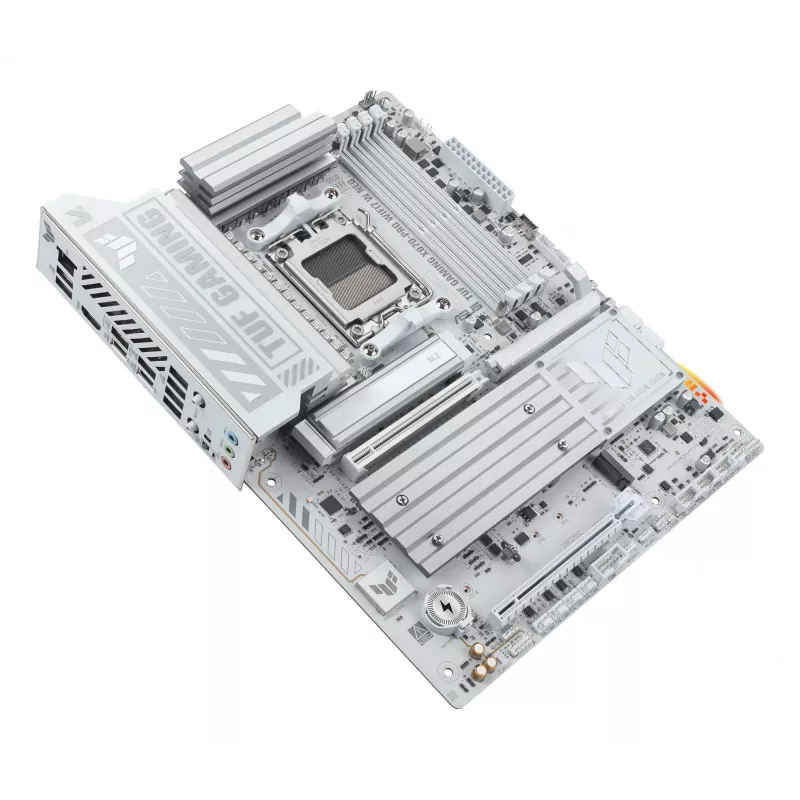

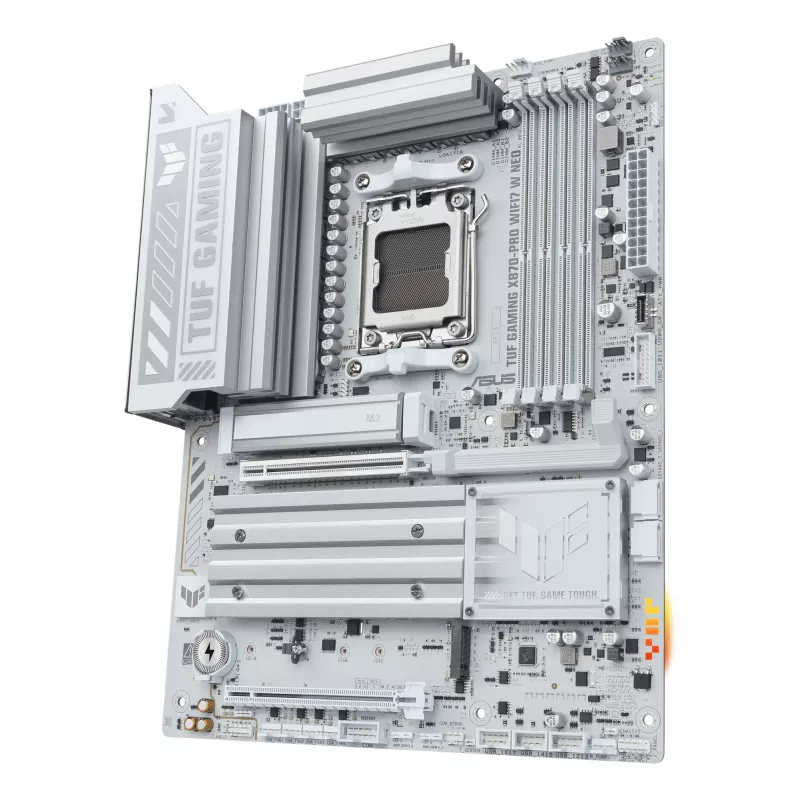

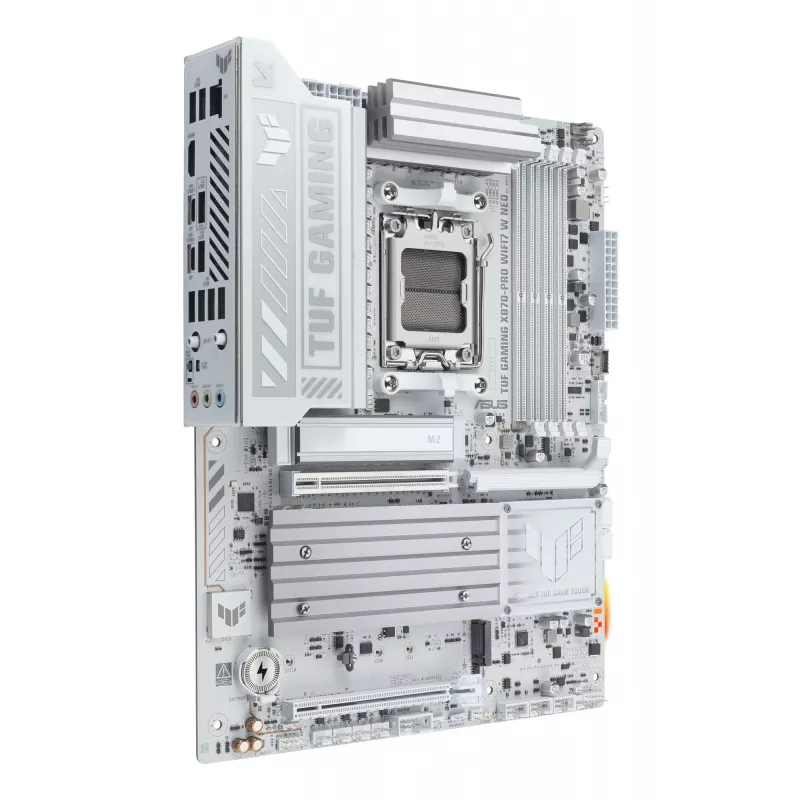

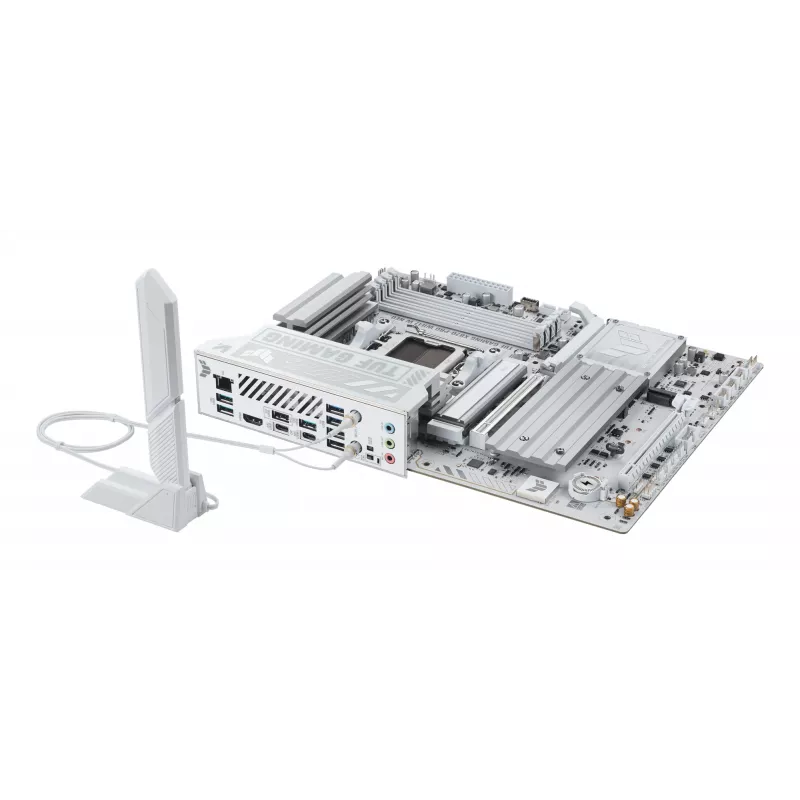

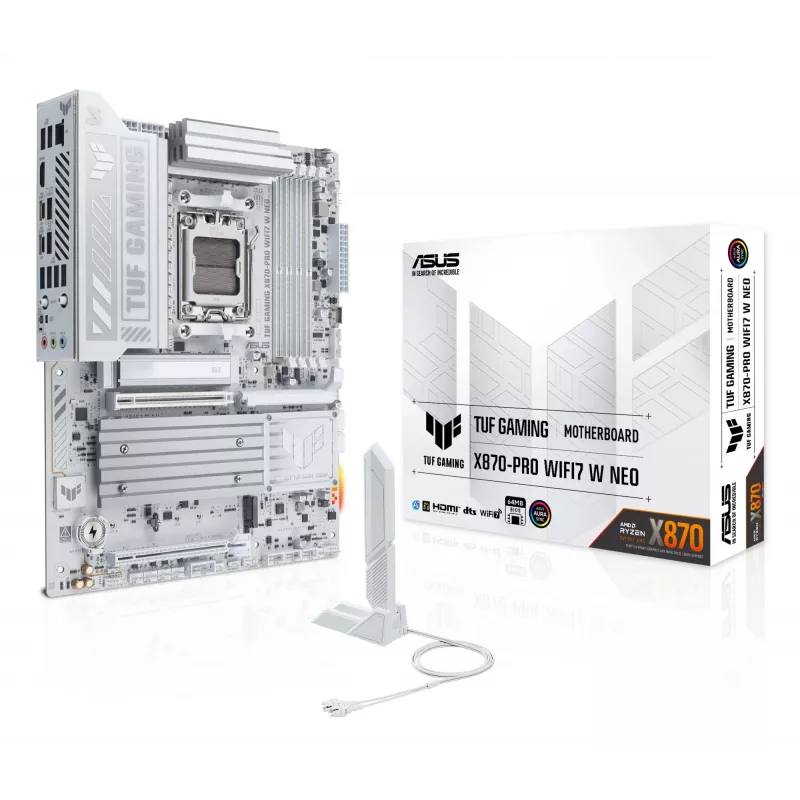

Motherboard ASUS TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, Socket AM5, ATX, DDR5, 4 DIMM, 256 GB, Wi‑Fi 7, 5Gb Ethernet

ASUS TUF GAMING X870-PRO WIFI7 W NEO is an ATX motherboard built on the AMD X870 chipset with Socket AM5, designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots up to 256 GB and provides modern storage and network options including multiple M.2 and SATA III connections with RAID 0/1/5/10 support, integrated Wi‑Fi 7 (802.11be) and a 5 Gigabit Ethernet port. The board features an upgraded power delivery and an extensive cooling design intended to deliver stable performance for gaming, content creation and AI-accelerated applications.

Advantages

The motherboard combines robust power delivery and an advanced thermal solution to sustain prolonged workloads, while TUF-tested components ensure long-term durability and system reliability. Native support for DDR5 memory and a full complement of storage interfaces enable high bandwidth and flexible drive configurations. Built-in Wi‑Fi 7 and 5 Gb Ethernet provide low-latency, high-throughput networking suitable for online gaming and large file transfers. UEFI firmware and onboard clear CMOS controls simplify system setup and firmware management.

Suitable for

• High-performance gaming rigs using AMD Ryzen 7000/8000/9000 CPUs
• Content creation and multitasking workstations
• AI-accelerated desktops and machine learning development
• Home or small office systems requiring fast wired and wireless networking
• Systems requiring multiple high-speed NVMe drives or RAID arrays

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
• Memory: DDR5, 4 DIMM slots, up to 256 GB
• Storage interfaces: M.2 and SATA III with RAID 0/1/5/10 support; up to 6 storage drives supported
• Audio: Multi-channel integrated audio (Realtek ALC1220P compatible implementation)
• Networking: Integrated Wi‑Fi 7 (802.11be), Bluetooth 5.4, 5 Gigabit Ethernet
• BIOS: UEFI AMI firmware with 512 Mbit storage and onboard Clear CMOS
• Weight: approximately 1.56 kg

How to use

Install the motherboard into a compatible ATX chassis and mount an AM5-compatible AMD Ryzen processor following standard ESD precautions. Populate DDR5 DIMM slots according to the motherboard manual to enable dual- or quad-channel memory modes and install storage devices into available M.2 slots and SATA connectors. Connect power supply cables to the 24-pin ATX and CPU power headers, and attach case front-panel connectors and cooling fans. Use the UEFI interface to configure boot order, enable RAID if required, and adjust memory and power settings. For wireless networking, enable Wi‑Fi 7 in firmware or install the operating system drivers provided by the vendor.

Recommendations

For stable high-load performance, use a high-quality CPU cooler and ensure adequate chassis airflow; update UEFI firmware and network drivers to the latest versions before heavy use. When configuring storage arrays, back up data and follow recommended RAID procedures. Use certified DDR5 memory modules and consult the QVL for optimal compatibility if building a mission-critical system.
