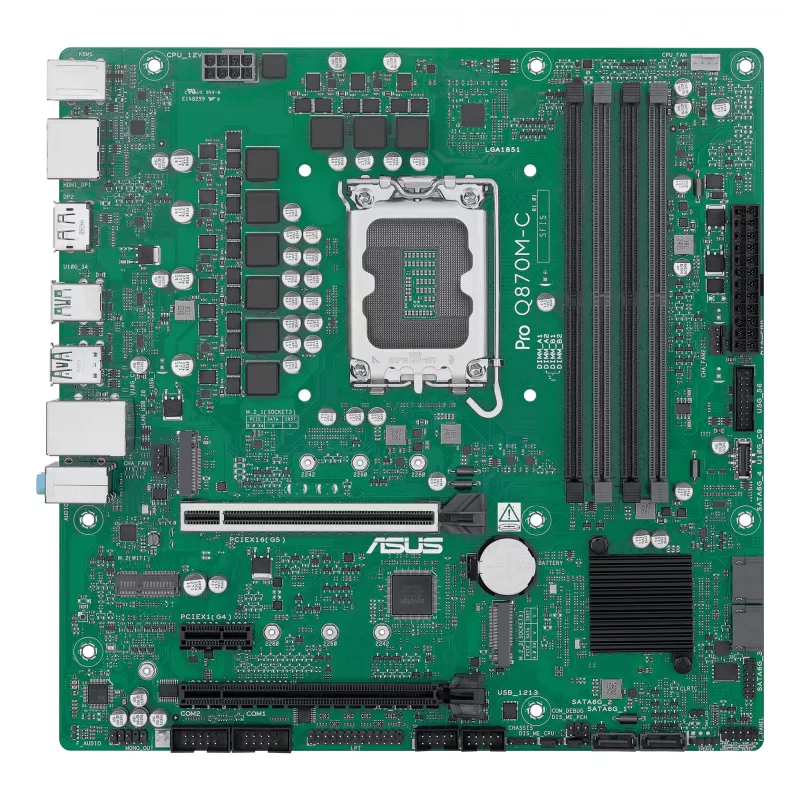

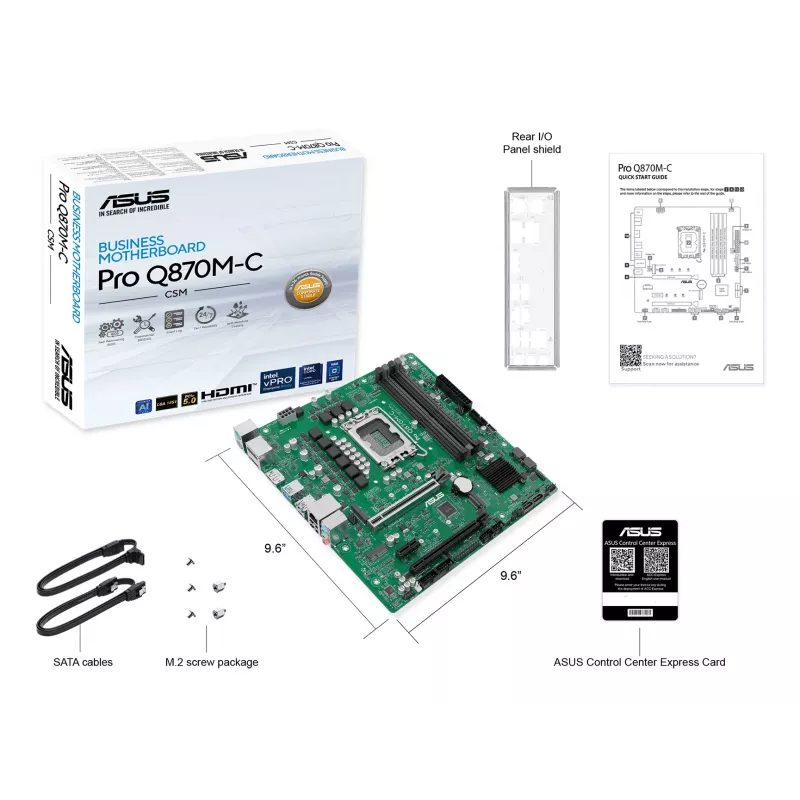

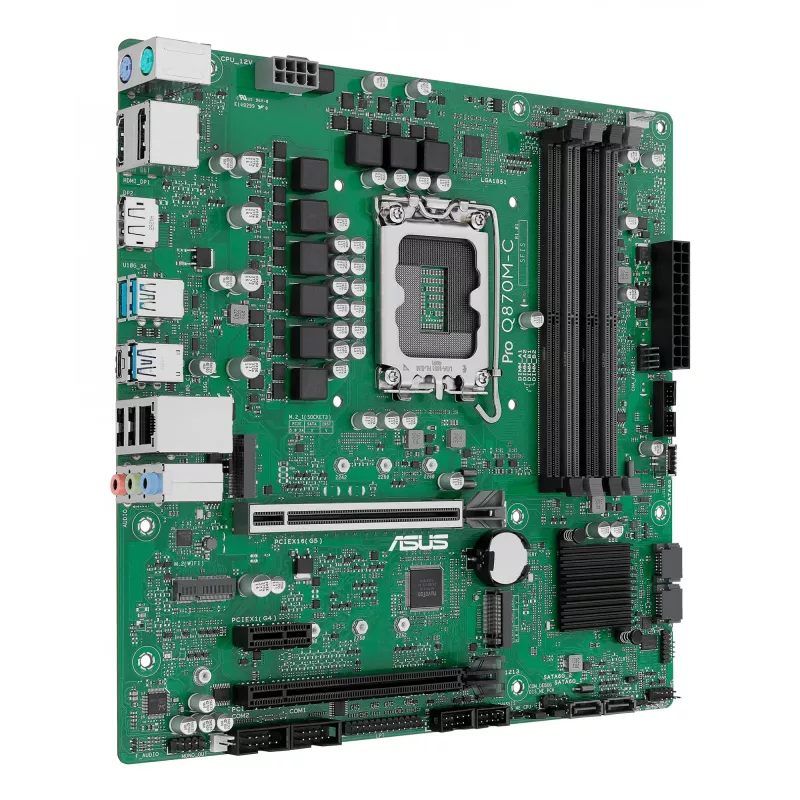

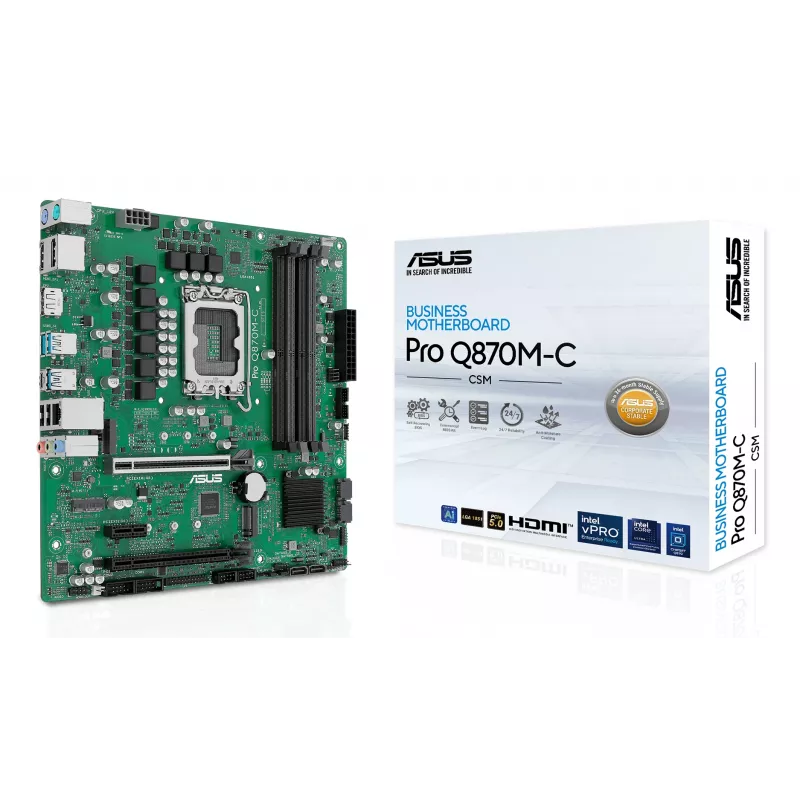

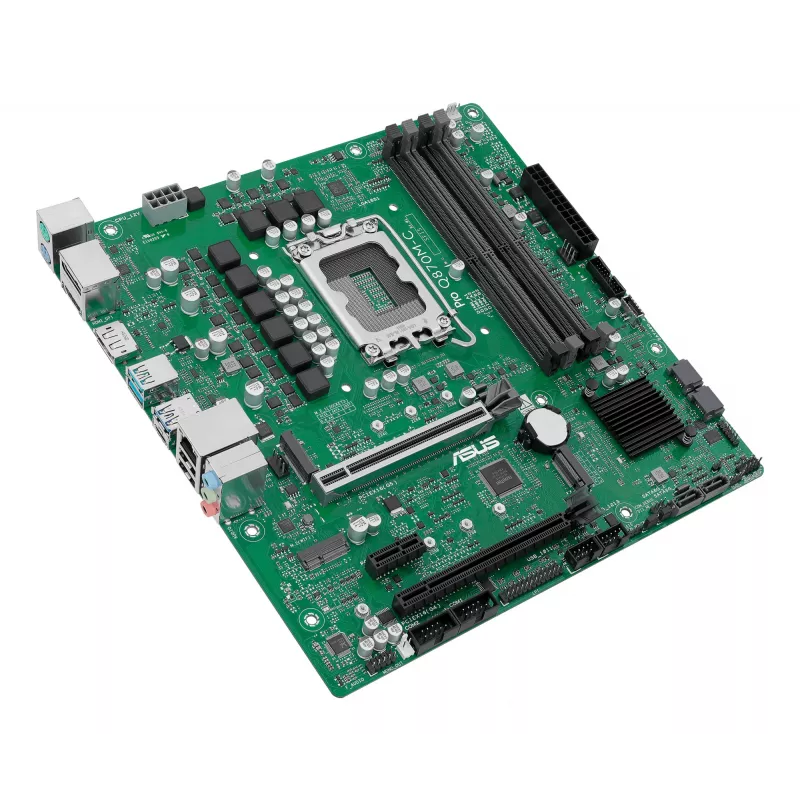

ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX

ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
36 mo.
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX
R4,492
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageabilityASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management... Read More
Stock 7 Code 112543 Brand ASUS Model 90MB1KEP-M0EAYC Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS PRO Q870M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-LM

Key Highlights
  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
  • ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
  • Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C®
  • DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
  • Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
  • PC micro ATX Intel® Q870 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • 256 Mbit
  • Gigabit Ethernet
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
Compatible processor series
Intel Core Ultra (Series 2)
Component for
PC
CPU fan connector
Yes
Depth
244 mm
DisplayPorts quantity
2
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
Height
50 mm
LAN controller
Intel® I219-LM
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel® Q870
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
mSATA ports quantity
0
Number of chassis fan connectors
2
Number of COM connectors
2
Number of CPU fan connectors
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
6
On-board graphics card
No
Package depth
263 mm
Package height
51.5 mm
Package weight
889.03 g
Package width
270 mm
Parallel processing technology support
Not supported
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
Multicolour
PS/2 ports quantity
2
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported memory clock speed (max)
6400 MHz
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB connector type
USB Type-A, USB Type-C
VGA (D-Sub) ports quantity
0
Weight
550.6 g
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10 x64, Windows 11
