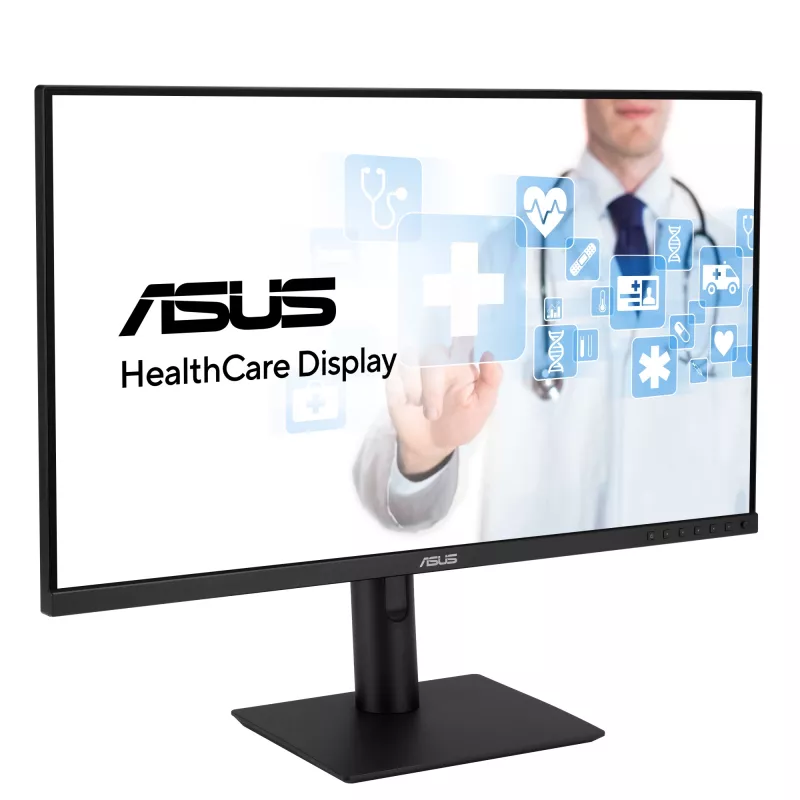

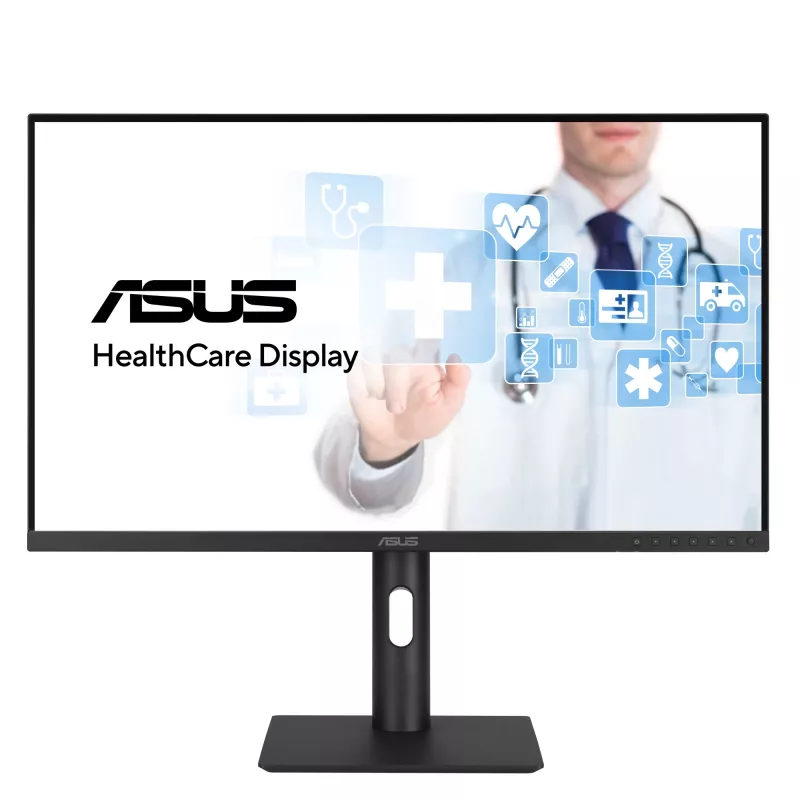

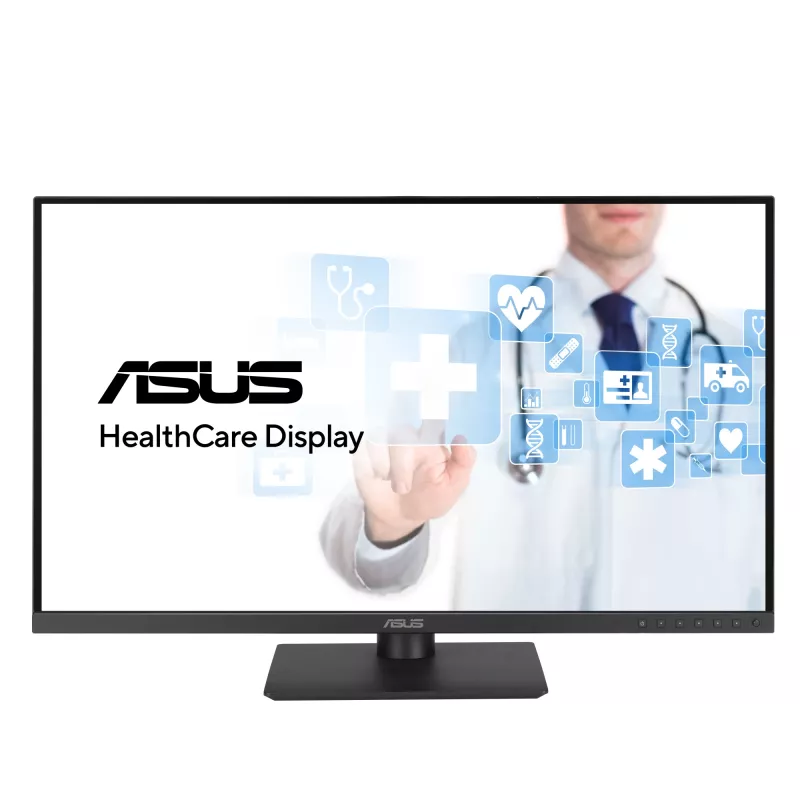

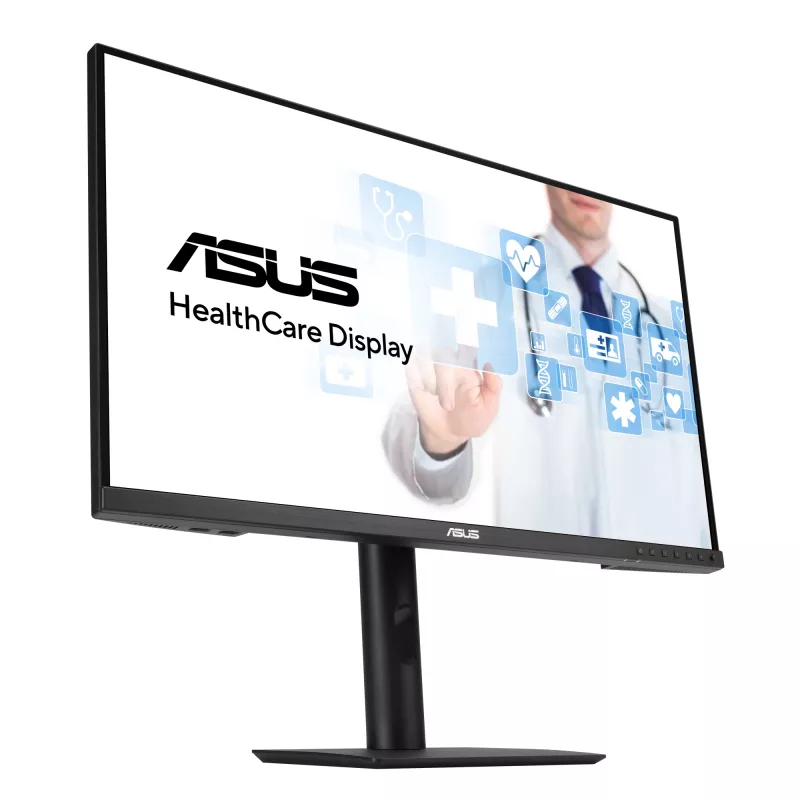

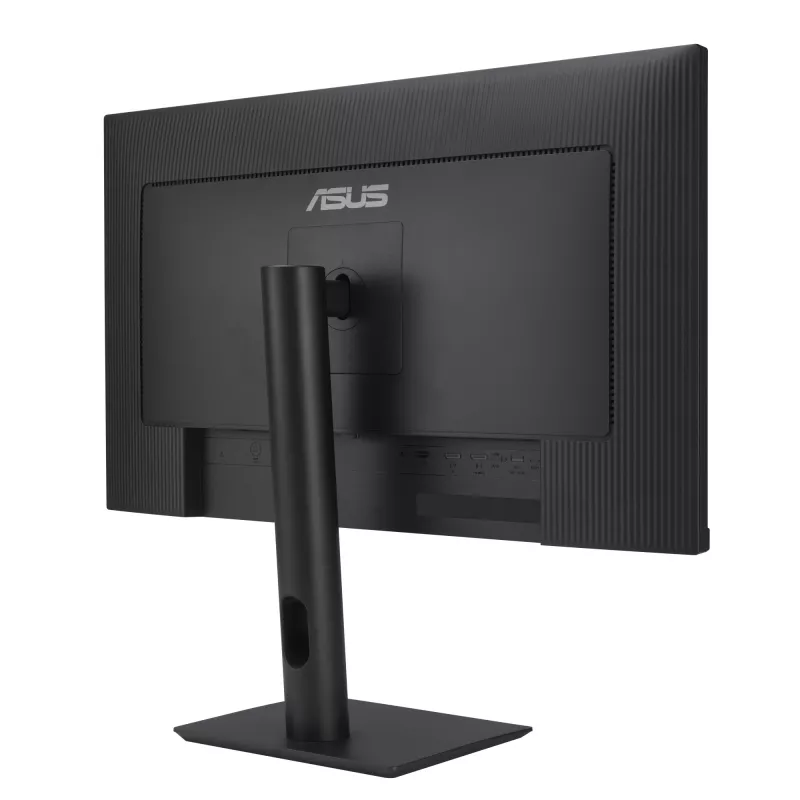

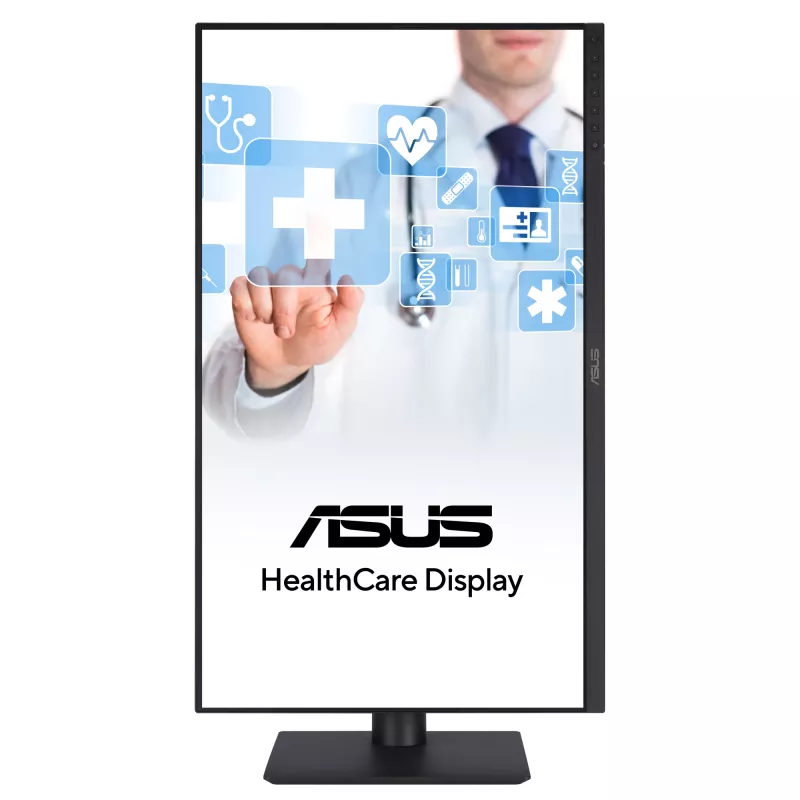

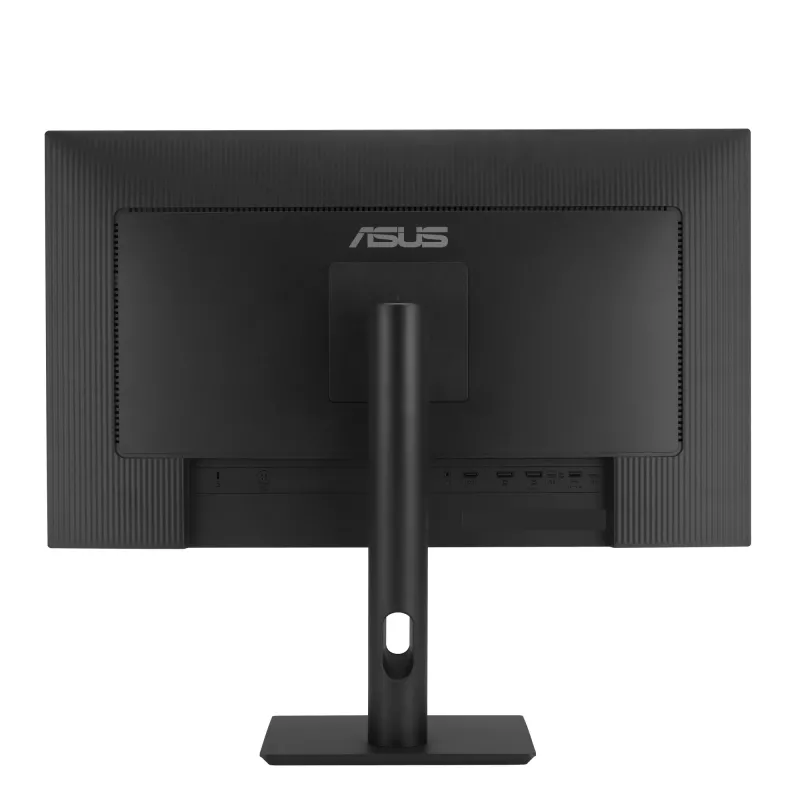

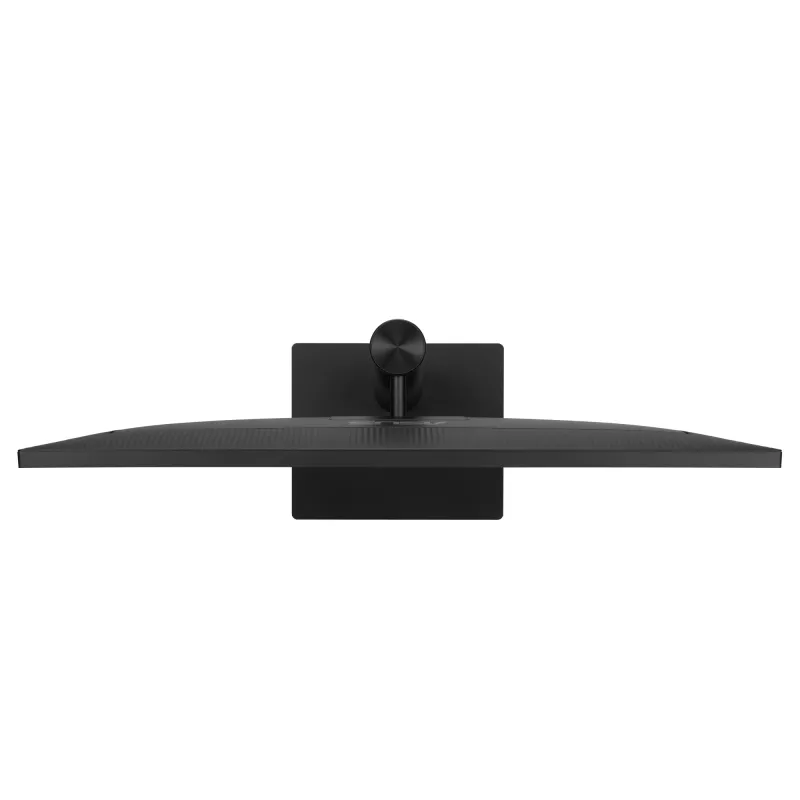

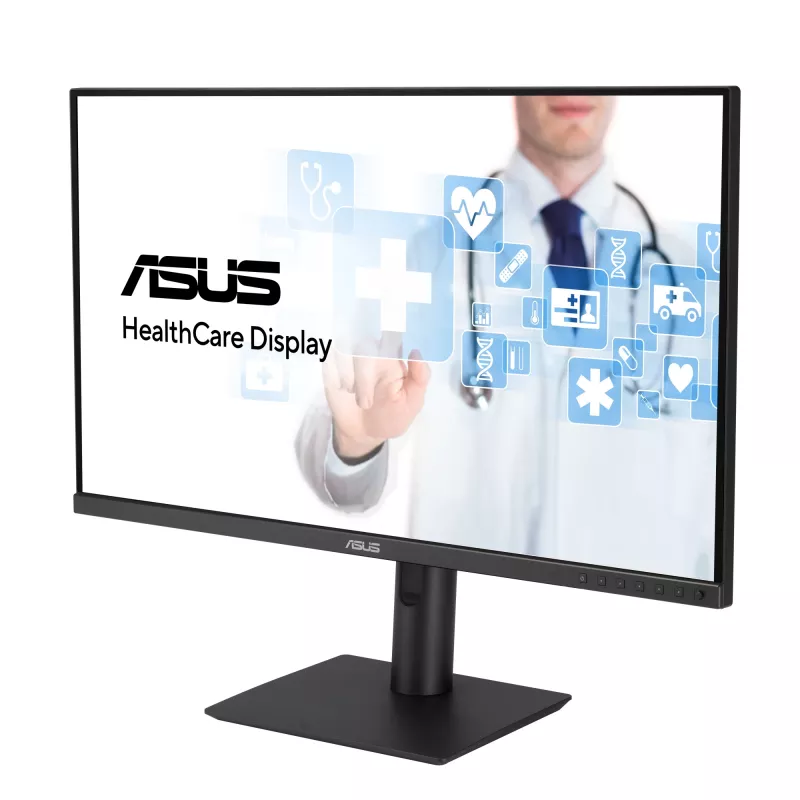

ASUS HA2441A computer monitor 60.5 cm (23.8 inch) 2560 x 1440 pixels Quad HD LCD Black

The ASUS HA2441A is a 23.8-inch Quad HD (2560 x 1440) medical-grade monitor designed for healthcare environments. Factory calibrated to DICOM Part 14 GSDF (Grayscale Standard Display Function) and equipped with ASUS Hardware Calibration technology, it maintains long-term grayscale accuracy. The IPS AGLR (Anti-Glare, Low-Reflection) panel delivers clear, consistent images with 178° wide viewing angles and a 5 ms response time, while integrated USB 3.2 Gen 1 connectivity and VESA mounting support adapt the HA2441A to clinical workstations and diagnostic setups.

Advantages

The monitor provides reliable DICOM Part 14 compliance for consistent grayscale reproduction and includes ASUS auto-calibration support to preserve image accuracy over time. Its 23.8-inch IPS panel offers wide 178° viewing angles and anti-glare coating for reduced reflections in clinical lighting. Quad HD resolution yields finer detail for medical images, and a built-in USB hub (USB 3.2 Gen 1) and ergonomic VESA/height-adjustable mounting options improve integration into healthcare workflows.

Suitable for

• Diagnostic review and interpretation of grayscale medical images
• Clinical workstations and nurse stations
• Medical imaging viewing where consistent grayscale accuracy is required
• Environments requiring VESA mounting or USB connectivity

Key specifications

• Display diagonal: 23.8"
• Resolution: 2560 x 1440 (Quad HD)
• Panel type: IPS with Anti-Glare, Low-Reflection (AGLR)
• Viewing angles: 178° horizontal / 178° vertical
• Response time: 5 ms
• Brightness (typical): 300 cd/m²
• Contrast ratio (typical): 900:1
• Pixel pitch: 0.206 x 0.206 mm

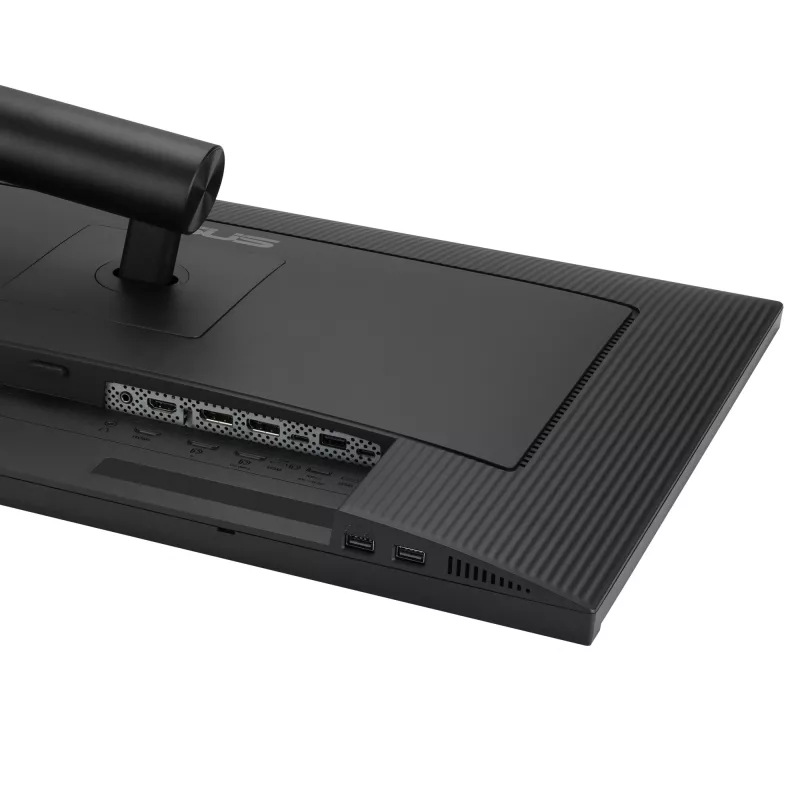

• Built-in USB hub: Yes (USB 3.2 Gen 1, includes 1 Type-C downstream)
• VESA mounting: Yes
• Speakers: No
• Color: Black
• Energy class (SDR/HDR): E / G

How to use

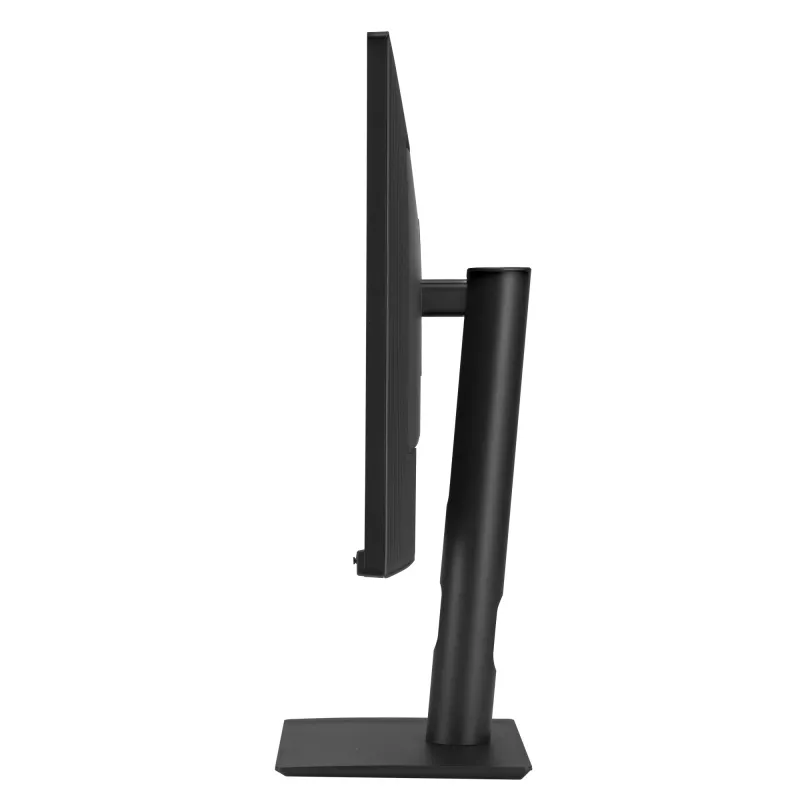

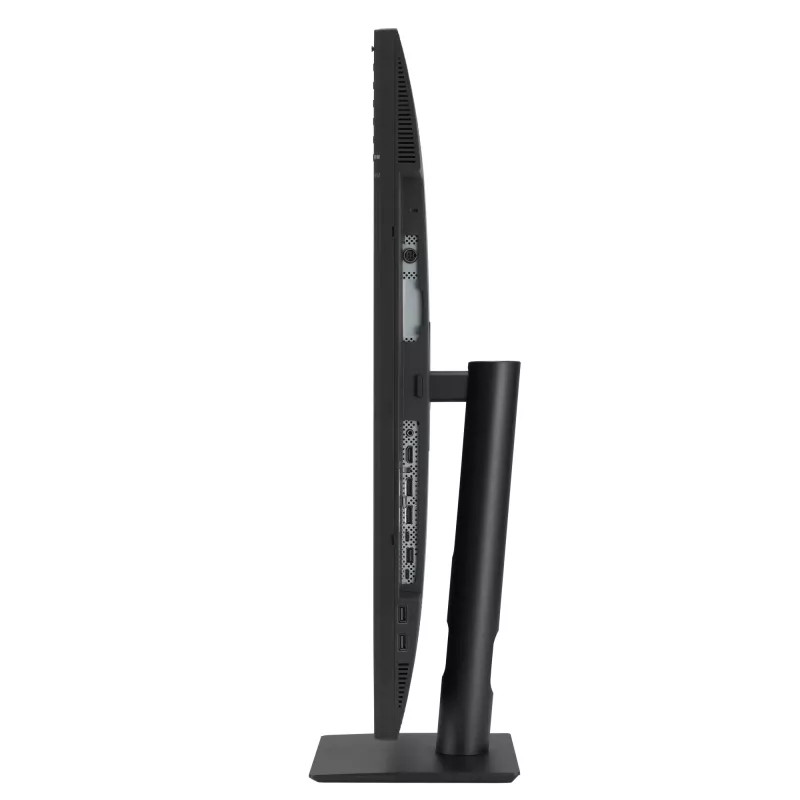

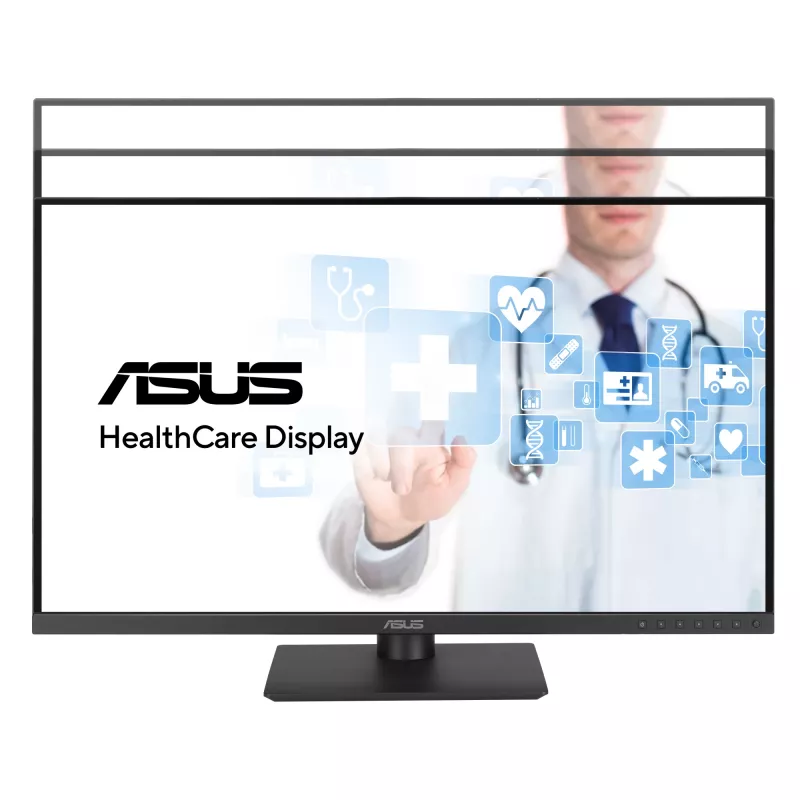

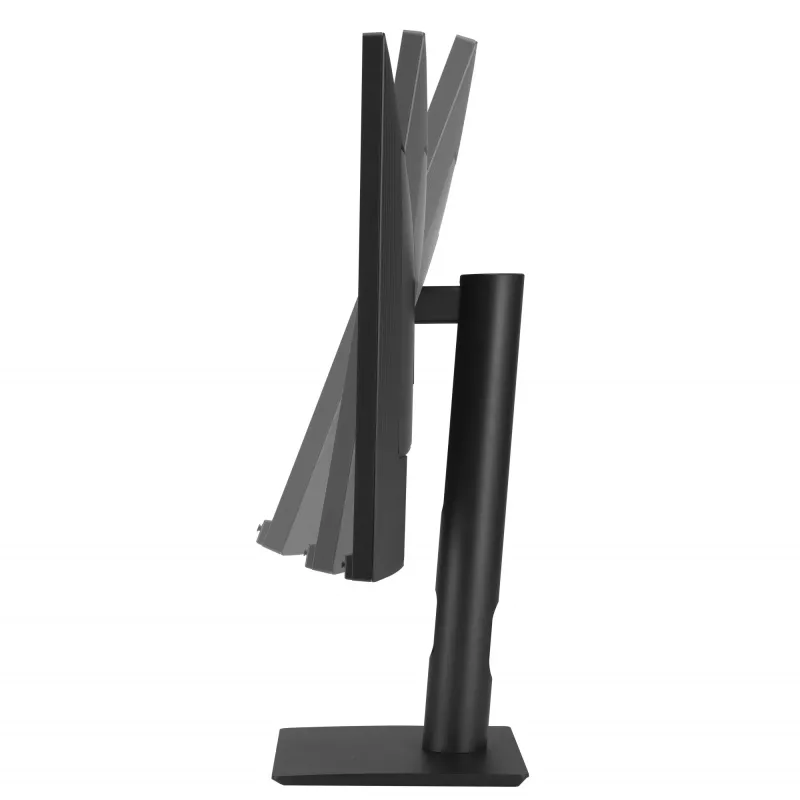

Install the monitor on a compatible stand or mount using the VESA holes and connect to a workstation via DisplayPort/HDMI (confirm supported input on the system) and the USB 3.2 Gen 1 port for hub functionality. Enable ASUS Hardware Calibration and run the factory calibration or scheduled auto-calibration to ensure DICOM Part 14 grayscale accuracy before clinical use. Adjust height and viewing angle to minimize reflections and position the screen for comfortable viewing during image review.

Recommendations

Use the built-in calibration routine regularly and keep ambient lighting controlled to maintain diagnostic grayscale consistency. Avoid placing the screen where direct strong light sources hit the panel despite the anti-glare coating.
