ASUS ASMB9-iKVM Remote Management Adapter for P11C Series

The ASUS ASMB9-iKVM is a dedicated remote management adapter designed for ASUS server and workstation motherboards, particularly the P11C series. It provides out-of-band management capabilities, allowing IT administrators to monitor, control, and troubleshoot systems remotely, even when the operating system is offline.

Advantages

With the ASMB9-iKVM, you gain full remote KVM over IP functionality, enabling BIOS-level access, virtual media mounting, and power control from anywhere. This reduces downtime and travel costs, making server management efficient and secure.

Suitable for

• ASUS P11C series motherboards
• ASUS WS C246M PRO and other compatible server/workstation boards
• Data centers and enterprise environments requiring remote server management

Key specifications

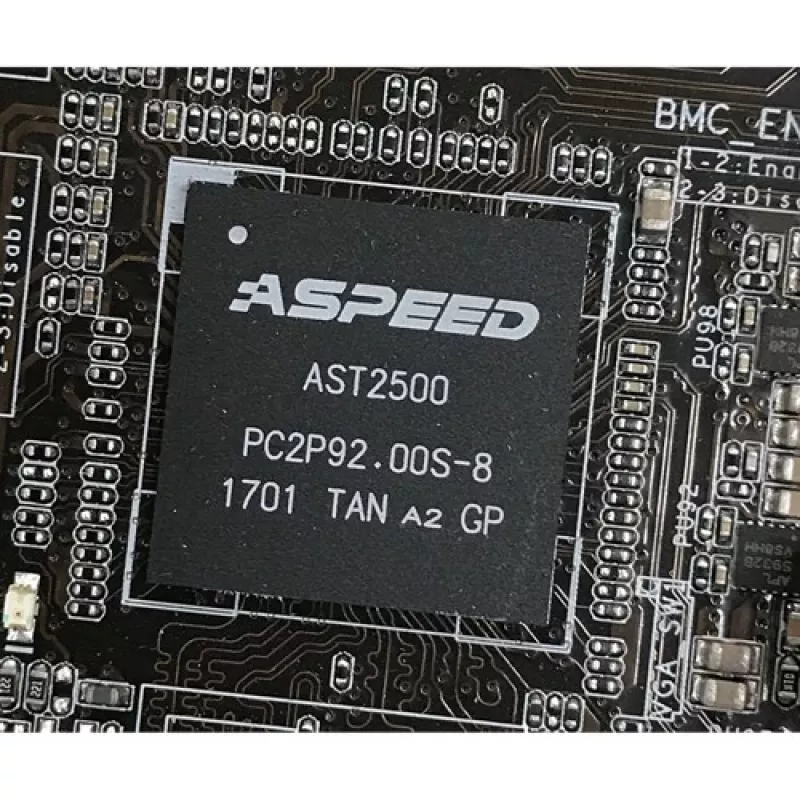

• Management Processor: ASPEED AST2500
• Network Interface: 1 x 10/100/1000 Mbps Ethernet
• IPMI Compliance: IPMI 2.0
• KVM over IP: Yes
• Virtual Media Support: Yes
• Remote Power Control: On/Off/Reset
• Security: SSL, AES, LDAP, RADIUS, SSH
• Supported Protocols: SNMP, SMTP, HTTPS
• Form Factor: Proprietary Add-on Module

Recommendations

For optimal performance, ensure your motherboard has the dedicated ASMB9-iKVM header. This module is essential for any ASUS server deployment requiring advanced remote management features.
