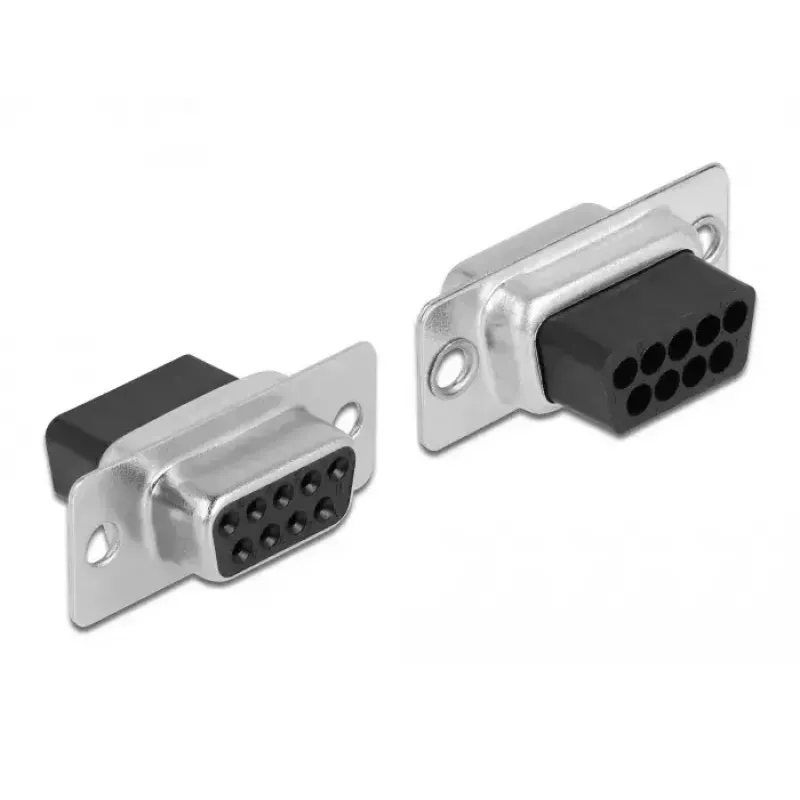

Assembly Kit D-Sub 9 pin female to RJ12 6P/6C DeLOCK 66759

This assembly kit by DELOCK provides a D-Sub 9 pin female connector to RJ12 6P/6C female adapter for creating custom serial connections using ISDN, telephone or RJ12 cabling. The kit includes a grey D-Sub 9 housing with individually assignable contacts and a matching RJ12 6P/6C female connector, allowing you to configure the pinout to your needs and assemble a reliable connection between devices.

Advantages

The contacts can be inserted into the D-Sub 9 housing according to the desired pin assignment and snap into place with a slight click to ensure secure contact. The kit’s components are designed for straightforward assembly, durable usage and compatibility with common RJ12 telephone and ISDN cables. Its neutral grey colour fits standard equipment racks and installations.

Suitable for

• Custom serial connections using RJ12 or telephone/ISDN cabling
• Repairing or building D-Sub 9 to RJ12 adapter cables
• Laboratory, industrial or telecom installations requiring configurable pinouts

Key specifications

• Brand: DELOCK
• Model / MPN: 66759
• EAN: 4043619667598
• Connector 1: D-Sub 9 pin (female)
• Connector 2: RJ12 6P/6C (female)
• Product colour: Grey

How to use

Select the required pin assignment, insert the contacts into the D-Sub 9 housing according to that assignment and press until they click into place. Connect the assembled D-Sub 9 female to the device requiring a serial interface and plug the RJ12 cable into the RJ12 6P/6C socket. Verify continuity and signal assignment before use.

Recommendations

For reliable operation, use quality RJ12 or telephone/ISDN cables, follow the intended pinout diagrams for your equipment and check connections with a multimeter before powering devices.
