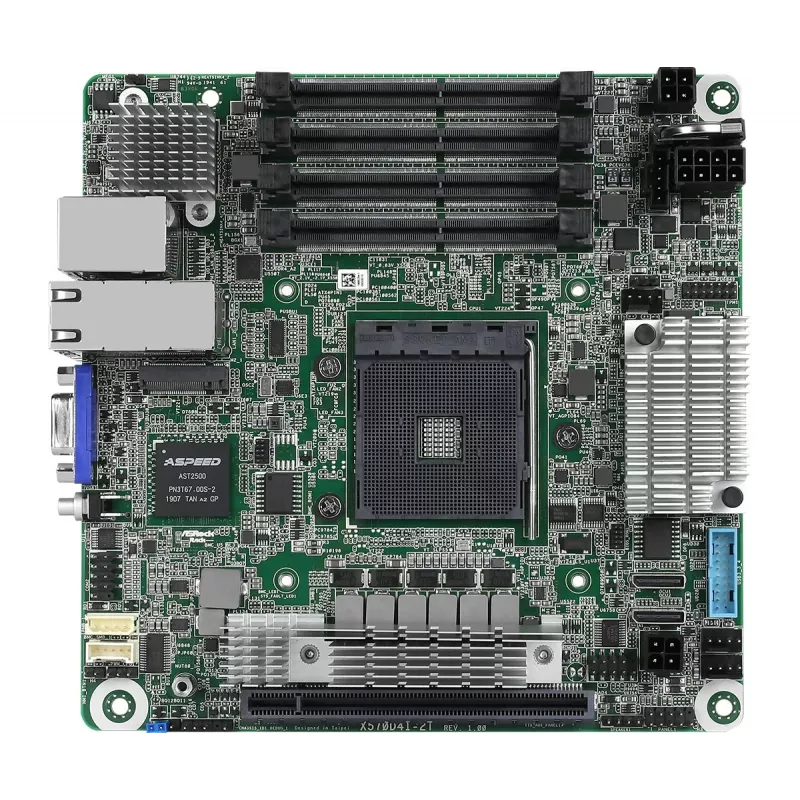

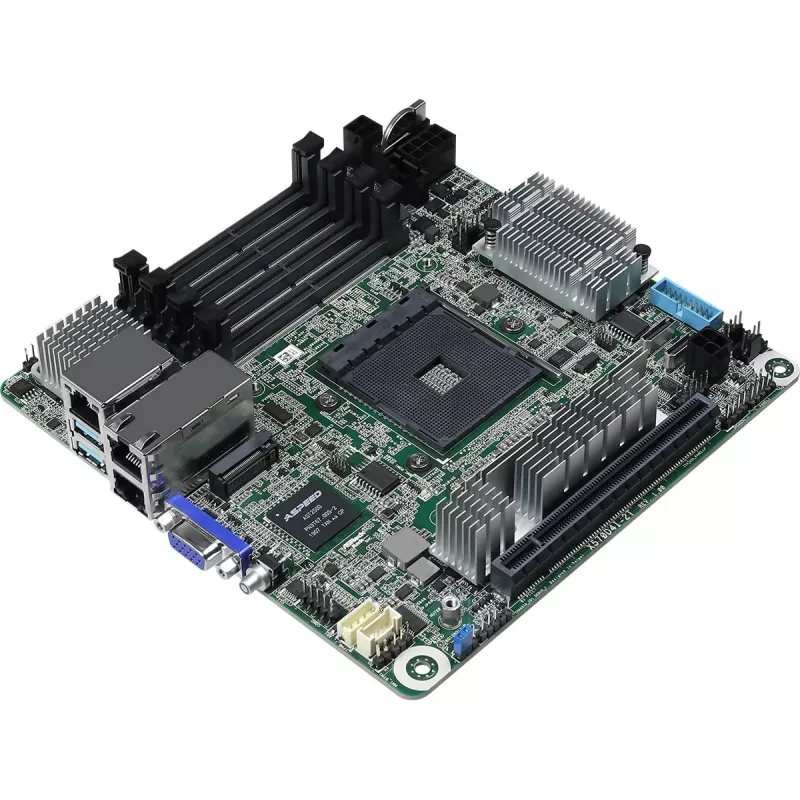

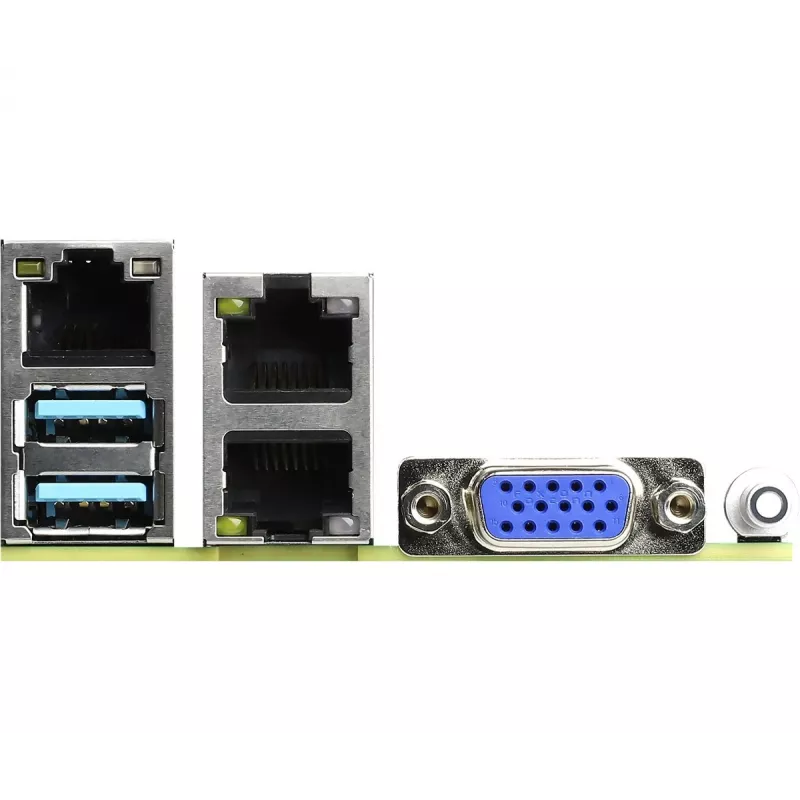

ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX

ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
ASRock X570D4I-2T Motherboard AMD X570 Socket AM4 Mini ITX
R13,889
The ASRock X570D4I-2T is a Mini ITX motherboard built on the AMD X570 chipset, designed for AMD Ryzen 3000 Series processors with an AM4 socket. It supports up to 64 GB of DDR4-SDRAM via SO-DIMM slots and features integrated graphics through the Aspeed AST2500 GPU. This board is engineered for compa... Read More
Stock 1 Code 1190276 Brand ASROCK Model X570D4I-2T Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock X570D4I-2T is a Mini ITX motherboard built on the AMD X570 chipset, designed for AMD Ryzen 3000 Series processors with an AM4 socket. It supports up to 64 GB of DDR4-SDRAM via SO-DIMM slots and features integrated graphics through the Aspeed AST2500 GPU. This board is engineered for compact, high-performance systems requiring robust networking and storage capabilities.

Key features

  • AMD X570 chipset with Socket AM4, compatible with AMD Ryzen 3000 Series processors
  • Supports up to 64 GB DDR4-SDRAM via SO-DIMM memory slots
  • Integrated Aspeed AST2500 graphics controller for display output
  • Dual 10 Gigabit Ethernet via Intel X550-AT2 controller, plus Realtek RTL8211E for additional connectivity
  • Storage interfaces include Serial ATA III and SATA III for high-speed drive connections
  • Compact Mini ITX form factor ideal for space-constrained builds
Key Highlights
  • Compact workstations and small server builds
  • Network-intensive applications requiring 10 GbE connectivity
  • Edge computing or remote-management systems using onboard graphics/management
  • Home labs and development rigs that need AM4 compatibility
  • Form factor: Mini ITX
  • Chipset: AMD X570
  • Processor socket: Socket AM4 (supports AMD Ryzen 3000 Series)
  • Memory type: DDR4-SDRAM, SO-DIMM slots
  • Maximum memory capacity: 64 GB
  • Number of memory slots: 4
  • Storage interfaces: Serial ATA III
  • Onboard graphics/management controller: ASPEED AST2500
  • Wired networking: Intel X550-AT2 10 Gigabit Ethernet controller with Realtek RTL8211E PHY
  • PCI Express x16 slots: none (0)
  • Weight: 0.76 kg
Specifications
ACPI version
2.0
BIOS memory size
32 Mbit
BIOS type
UEFI AMI
Component for
PC
Depth
170.2 mm
ECC сompatibility
ECC & non-ECC
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card
AST2500
Graphics card family
Aspeed
Harmonized System (HS) code
84733020
Height
285 mm
IPMI LAN (RJ-45) port
Yes
LAN controller
Intel X550-AT2, Realtek RTL8211E
Maximum internal memory
64 GB
Maximum number of SMP processors
1
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Memory voltage
1.2
Motherboard chipset
AMD X570
Motherboard chipset family
AMD
Motherboard form factor
Mini ITX
Number of chassis fan connectors
3
Number of COM connectors
1
Number of DIMM slots
4
Number of M.2 (M) slots
1
Number of memory slots
4
Number of processors supported
1
Number of SATA II connectors
0
Number of SATA III connectors
8
On-board graphics card memory
16 MB
On-board graphics card model
Aspeed AST2500
Operating temperature (T-T)
10 - 35
Parallel processing technology support
Not supported
PCI Express x16 (Gen 2.x) slots
0
PCI Express x16 (Gen 3.x) slots
0
PCI Express x16 slots
1
PCI Express x8 (Gen 2.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
0
Storage temperature (T-T)
-40 - 70
Supported memory clock speeds
2933
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III, Serial ATA III
System Management BIOS (SMBIOS) version
2.8
TPM connector
Yes
USB 2.0 connectors
0
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Weight
0.76 kg
Wi-Fi
No
Width
170.2 mm

Leaflet

Open Leaflet
