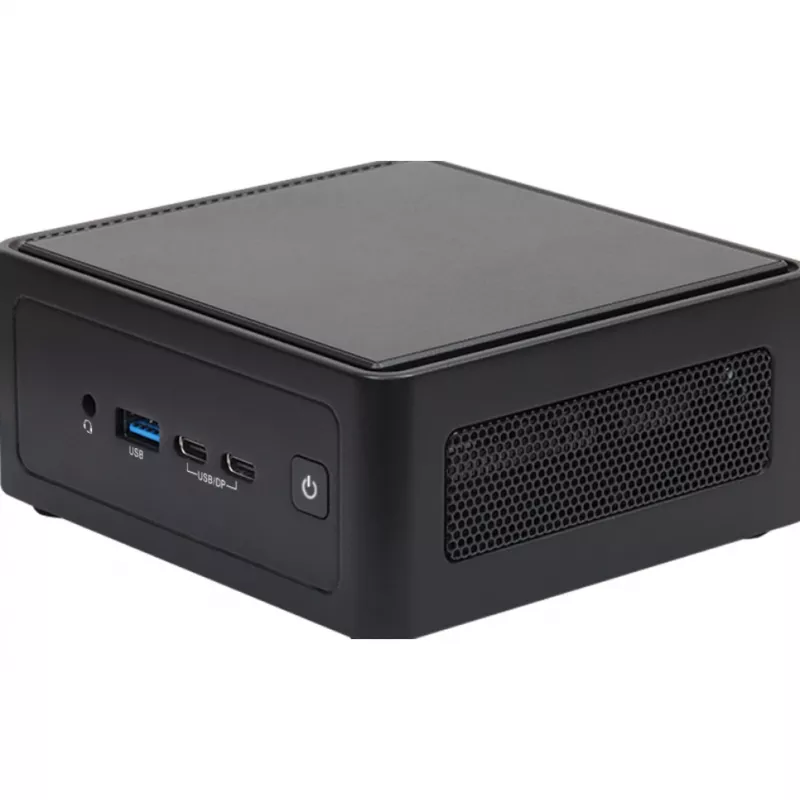

ASRock NUC BOX-125H Barebone Mini PC - Intel Core Ultra 5 125H, DDR5 SO-DIMM, M.2 NVMe, Wi-Fi 6E, 2.5GbE, HDMI 2.1, DP 1.4a, USB4

The ASRock NUC BOX-125H is a powerful and compact barebone mini PC designed for professionals and enthusiasts who demand high performance in a small form factor. Powered by the Intel Core Ultra 5 125H processor with 14 cores and Intel Arc Graphics, this system delivers exceptional computing and graphics capabilities for multitasking, content creation, and light gaming. As a barebone system, it allows you to customize memory and storage to fit your exact needs.

Advantages

Compact NUC form factor saves desk space while delivering desktop-class performance. Dual 2.5 Gigabit Ethernet and Wi-Fi 6E ensure fast and reliable network connectivity. Support for up to 96 GB DDR5 memory and dual M.2 PCIe Gen4x4 SSDs provides ample room for demanding applications. Versatile video outputs including HDMI 2.1 and DisplayPort 1.4a via USB4 enable multi-monitor setups up to 8K.

Suitable for

• Home and office productivity
• Digital signage and kiosks
• Media streaming and light content creation
• Edge computing and IoT gateways

Key specifications

• Processor: Intel Core Ultra 5 125H (14 cores, 18 threads, up to 4.5 GHz)
• Graphics: Intel Arc Graphics (integrated)
• Memory: 2x DDR5 SO-DIMM slots, up to 96 GB (5600 MHz)
• Storage: 2x M.2 2280 PCIe Gen4x4 slots
• LAN: 2x 2.5 Gigabit Ethernet (Intel I226-V)
• Wireless: Intel AX210 Wi-Fi 6E + Bluetooth 5.3
• Video Outputs: 2x HDMI 2.1, 2x DisplayPort 1.4a (via USB4)
• USB Ports: 2x USB4 Type-C, 3x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A
• Audio: Realtek ALC256, headphone/mic combo jack
• Power Supply: 120W AC adapter (19V/6.32A)
• VESA Mount Support: 75x75mm / 100x100mm
• Operating System: None (Barebone)

Recommendations

This barebone system is ideal for users who want a compact yet powerful PC. Pair with DDR5 SO-DIMM memory and an M.2 NVMe SSD for optimal performance. Perfect for a silent home server, a media center, or a space-saving workstation.
