The ASRock H670M Pro RS is a micro ATX motherboard built on the Intel H670 chipset, designed for 12th Gen Intel Core, Pentium, and Celeron processors using the LGA 1700 socket. It supports DDR4 memory and offers a balanced set of features for a reliable and expandable system.Key featuresIntel LGA 17... Read More
Stock 1 Code 125726 Brand ASROCK Model H670M PRO RS Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

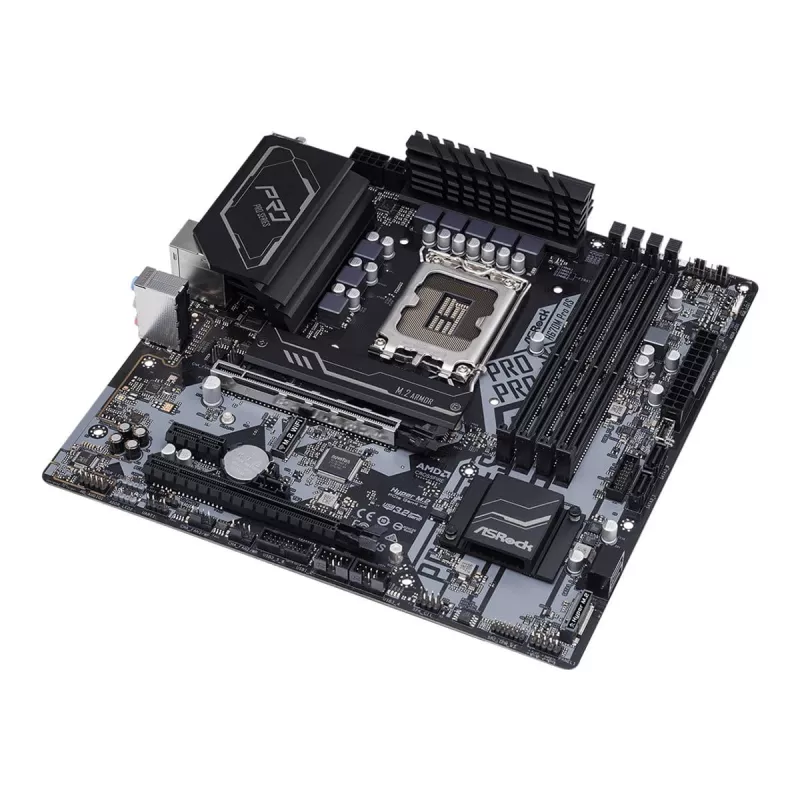

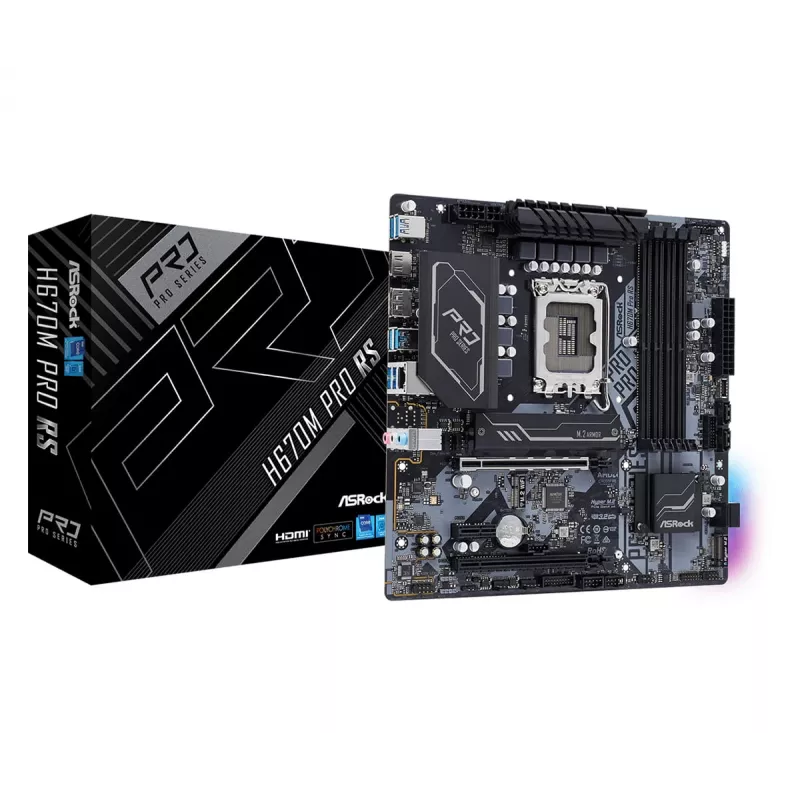

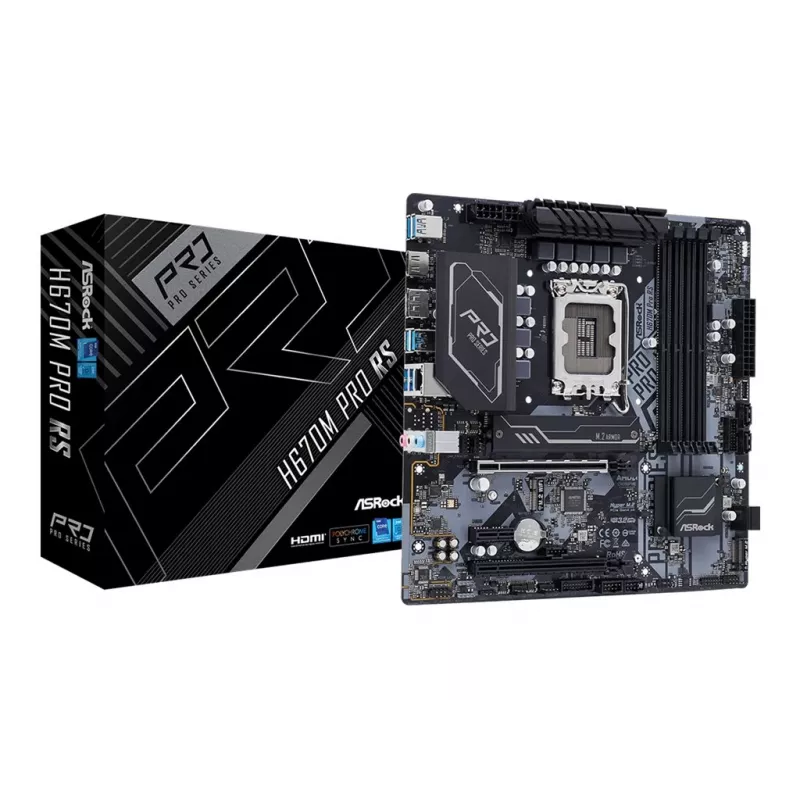

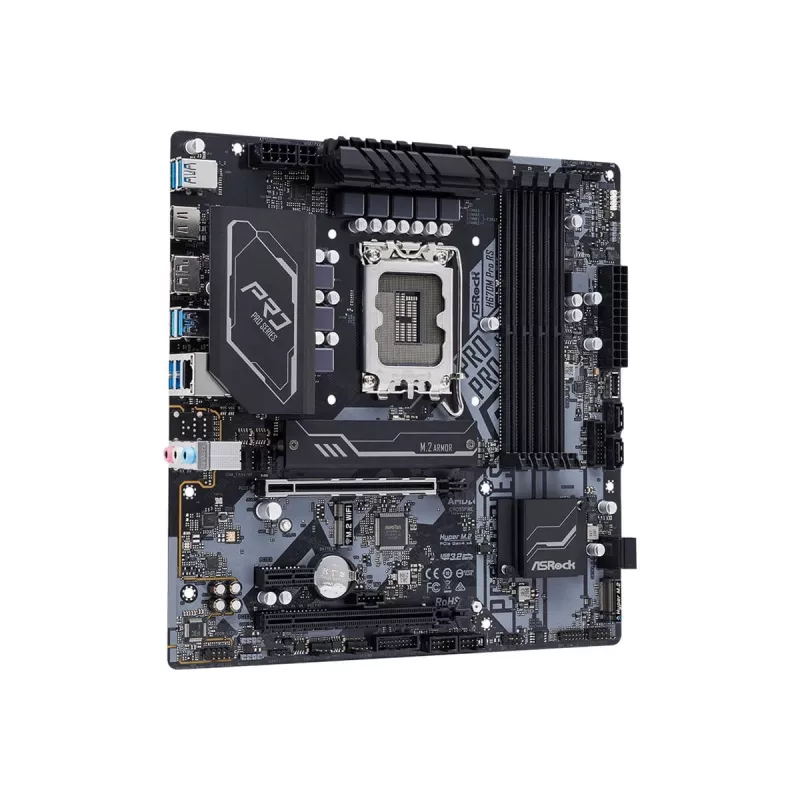

The ASRock H670M Pro RS is a micro ATX motherboard built on the Intel H670 chipset, designed for 12th Gen Intel Core, Pentium, and Celeron processors using the LGA 1700 socket. It supports DDR4 memory and offers a balanced set of features for a reliable and expandable system.

Key features

  • Intel LGA 1700 socket compatible with 12th Gen Intel Core i3/i5/i7/i9, Pentium, and Celeron processors
  • Intel H670 chipset with dual-channel DDR4 memory support, up to 128 GB across 4 DIMM slots
  • Two M.2 PCIe 4.0 slots for high-speed SSDs and four SATA III ports for HDDs and SSDs
  • RAID 0, 1, 5, and 10 support for flexible storage configurations
  • Rear I/O includes USB 3.2 Gen2 Type-C, USB 3.2 Gen2, four USB 3.2 Gen1 ports, DisplayPort, PS/2, and Gigabit LAN (Intel I219-V)
  • Onboard 8-channel HD Audio and integrated graphics support (requires compatible CPU)
  • Micro ATX form factor (244 mm x 244 mm) with standard ATX 24-pin power connector
Key Highlights
  • Reinforced Steel PCIe slot (PCIe 4.0 compatible)
  • Intel Gigabit LAN
  • Nahimic Audio support
  • Polychrome RGB with onboard and addressable RGB headers
  • Multiple M.2 slots supporting PCIe 4.0 SSDs
  • M.2 (Key E) slot for 802.11ac Wi‑Fi modules
Specifications
12V power connector
Yes
ACPI version
6.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Cables included
SATA
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Component for
Server
CPU fan connector
Yes
Depth
244 mm
DisplayPort version
1.4
DisplayPorts quantity
1
Drivers included
Yes
DVI-D ports quantity
0
ECC сompatibility
non-ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
LAN controller
Intel I219-V
Maximum internal memory
128 GB
Maximum number of SMP processors
1
Maximum resolution
7680 x 4320
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel H670
Motherboard chipset family
Intel
Motherboard form factor
Micro ATX
Number of chassis fan connectors
3
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA III connectors
4
PC health monitoring
Voltage, Temperature, FAN, CPU
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
2
Processor manufacturer
Intel
Processor socket
LGA 1700
RAID levels
1, 10, 5
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speeds
4800
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III, M.2
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt headers
1
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Wake-on-LAN ready
Yes
Wi-Fi
No
Width
244 mm
