Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX

Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Motherboard ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
R1,960
The ASRock B550M Phantom Gaming 4 is a micro ATX motherboard built on the AMD B550 chipset, designed to support AMD Ryzen 3000 series processors with the Socket AM4 platform. It offers a solid foundation for building a compact yet powerful gaming or productivity system, featuring support for high-sp... Read More
Stock 92 Code 31177 Brand ASROCK Model B550MPHANTOMGAMING4 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock B550M Phantom Gaming 4 is a micro ATX motherboard built on the AMD B550 chipset, designed to support AMD Ryzen 3000 series processors with the Socket AM4 platform. It offers a solid foundation for building a compact yet powerful gaming or productivity system, featuring support for high-speed DDR4 memory and modern connectivity options.

Key features

  • Socket AM4 compatible with AMD Ryzen 3000 series processors
  • AMD B550 chipset for enhanced performance and connectivity
  • 4 x DDR4 DIMM slots supporting up to 128 GB of memory, with speeds up to 4133 MHz (OC)
  • 1 x M.2 socket for high-speed SSDs and 4 x SATA III ports for HDDs and SSDs

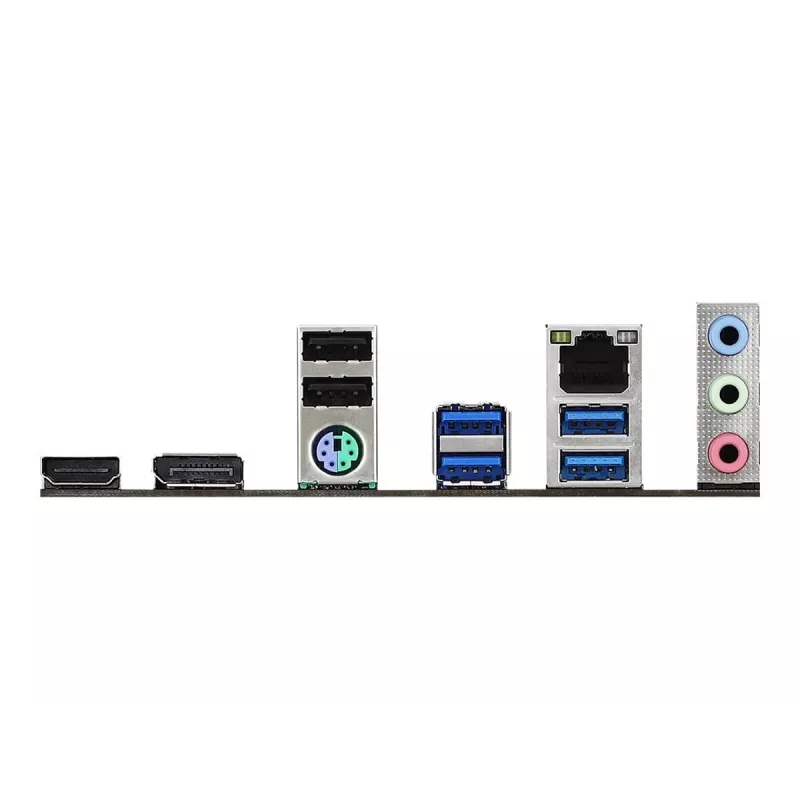

  • Rear panel includes 1 x HDMI, 1 x DisplayPort, 2 x USB, 1 x RJ45 Gigabit LAN (Realtek RTL8111H), 1 x PS/2, and audio jacks
  • 8-channel HD Audio for immersive sound
  • Micro ATX form factor (244 mm x 244 mm) for versatile builds
Key Highlights
  • Power design: 8 power phase with premium 50A power chokes
  • M.2: Dual M.2 slots, supports Type 2280; Hyper M.2 socket PCIe Gen4 x4; second M.2 PCIe Gen3 x2 / SATA3
  • PCB: 2oz copper inner layers; Sapphire Black PCB; High-density glass fabric PCB
  • Graphics outputs: HDMI + DisplayPort
  • HDMI: Supports 4K @ 60Hz
  • RGB headers: Onboard RGB and addressable RGB header (addressable: WS2812B, 5V, max 3A, up to 80 LEDs, max length 2 m; RGB: 5050 12V, max 3A, max length 2 m)
  • Storage tech: AMD StoreMI support
  • Protection: Full spike protection for sensitive onboard components
  • Software: ASRock Live Update & APP Shop for updates and utilities
Specifications
12V power connector
Yes
ACPI version
5.1
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC887 / Realtek ALC897
Audio output channels
7.1
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Cables included
SATA
Component for
PC
CPU fan connector
Yes
Depth
244 mm
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
1
Drivers included
Yes
DVI-D ports quantity
0
ECC сompatibility
ECC & non-ECC
eSATA ports quantity
0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Firewire (IEEE 1394) ports
0
Front panel audio connector
Yes
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Height
70 mm
LAN controller
Realtek RTL8111H
Maximum internal memory
128 GB
Maximum number of SMP processors
1
Maximum resolution
5120 x 2880
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD B550
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of chassis fan connectors
3
Number of M.2 (M) slots
1
Number of memory slots
4
Number of Parallel ATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Overclocking features
FCC, CE ErP/EuP
PC health monitoring
Voltage, Temperature, FAN
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
RGB LED pin header
Yes
Supported memory clock speeds
4466, 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4533
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.3
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Wake-on-LAN ready
Yes
Weight
0.465 kg
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10 x64

Leaflet

Open Leaflet
