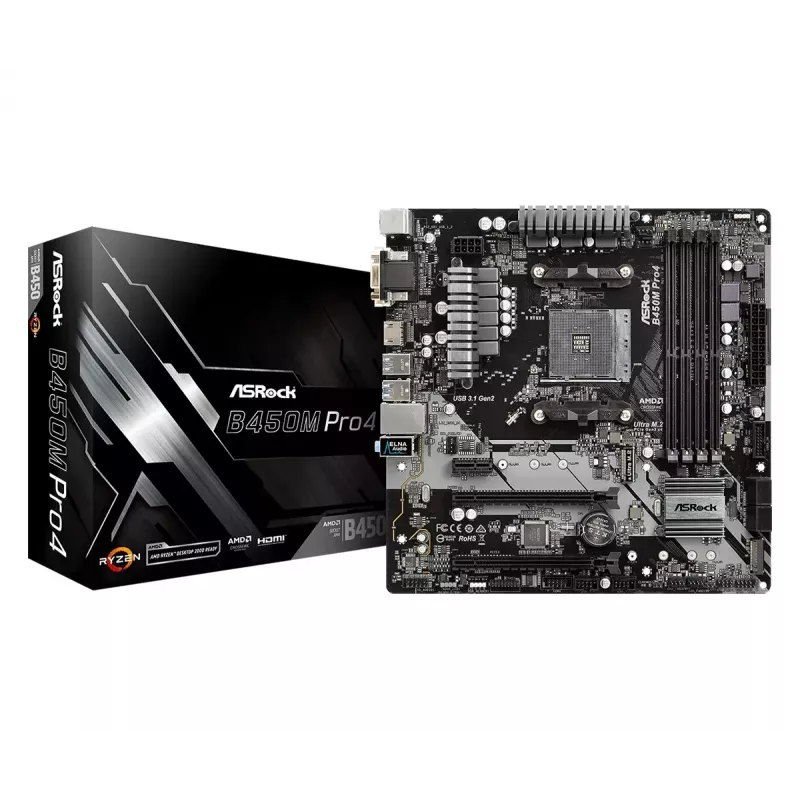

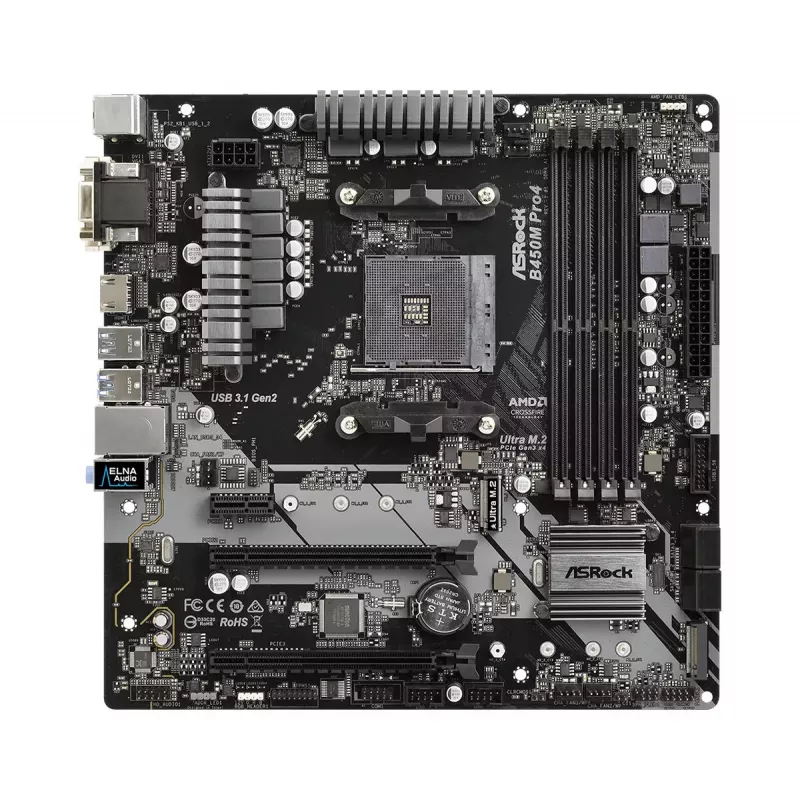

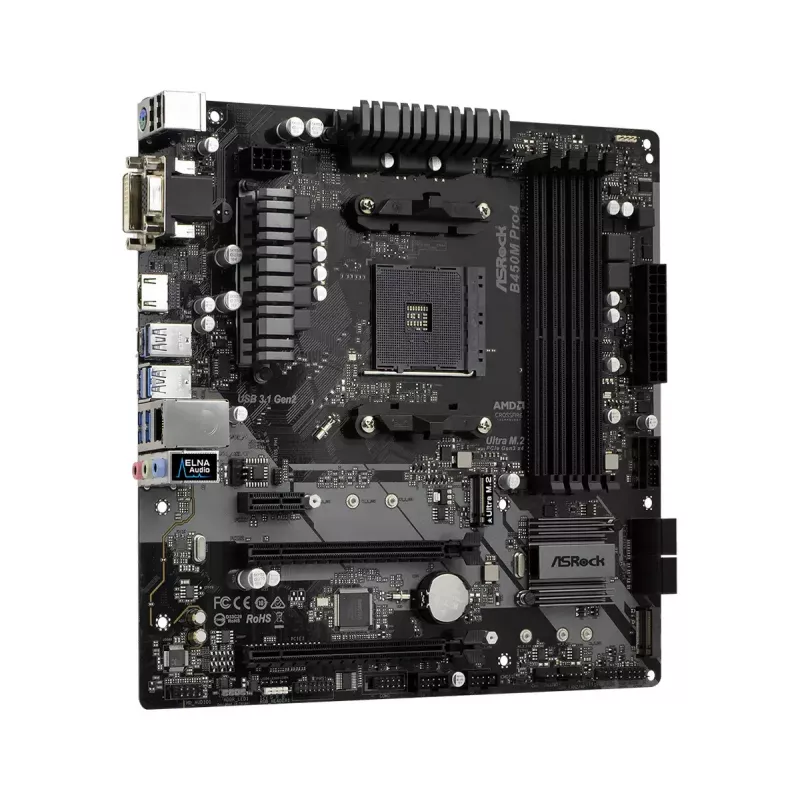

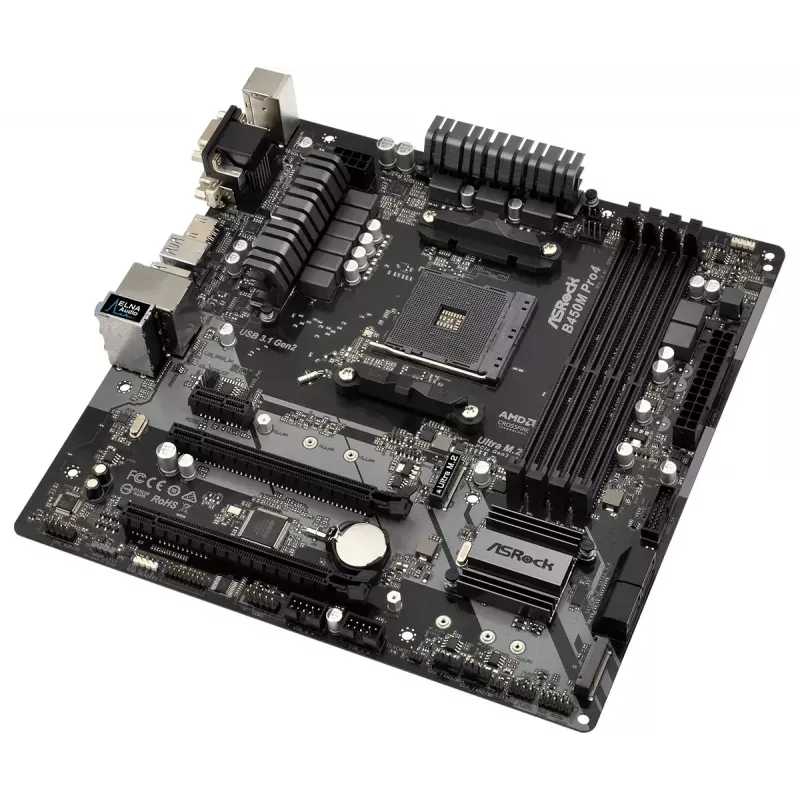

Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX

Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
Motherboard ASRock B450M PRO4 AMD B450 Socket AM4 micro ATX
R1,459
The ASRock B450M PRO4 is a reliable micro ATX motherboard built on the AMD B450 chipset, designed for Socket AM4 processors including AMD Ryzen 3, 5, and 7 series. It offers a solid foundation for a balanced desktop build with support for high-speed memory and modern storage options.Key featuresSock... Read More
Stock Out Of StockNo Stock Code 10428 Brand ASROCK Model B450M PRO4 R2.0 Warranty 2 Years

Shipping & Returns

The ASRock B450M PRO4 is a reliable micro ATX motherboard built on the AMD B450 chipset, designed for Socket AM4 processors including AMD Ryzen 3, 5, and 7 series. It offers a solid foundation for a balanced desktop build with support for high-speed memory and modern storage options.

Key features

  • Socket AM4 compatible with AMD Ryzen processors
  • AMD B450 chipset for stable performance
  • 4 x DDR4 memory slots supporting up to 128 GB capacity and overclocked speeds up to DDR4-3200
  • 2 x PCI-Express x16 slots for graphics and expansion cards
  • 1 x PCI-Express x1 slot for additional peripherals
  • 4 x Serial ATA III ports for storage drives
  • 2 x M.2 sockets for high-speed SSDs
Key Highlights
  • Storage acceleration: AMD StoreMI technology with optional up to 2 GB RAM cache
  • M.2: Dual M.2 slots supporting SATA3 6 Gb/s and PCIe Gen3 x4 Ultra M.2 (up to 32 Gb/s); compatible with ASRock U.2 Kit
  • USB: Dual USB 3.1 Gen2 rear ports (Type-A + Type-C), up to 10 Gbps
  • PCB: 2 oz copper inner layers for improved cooling and efficiency
  • Power delivery: Digi Power digital PWM design for stable CPU Vcore
  • Audio: ELNA audio capacitors (low leakage current) and solid capacitor design

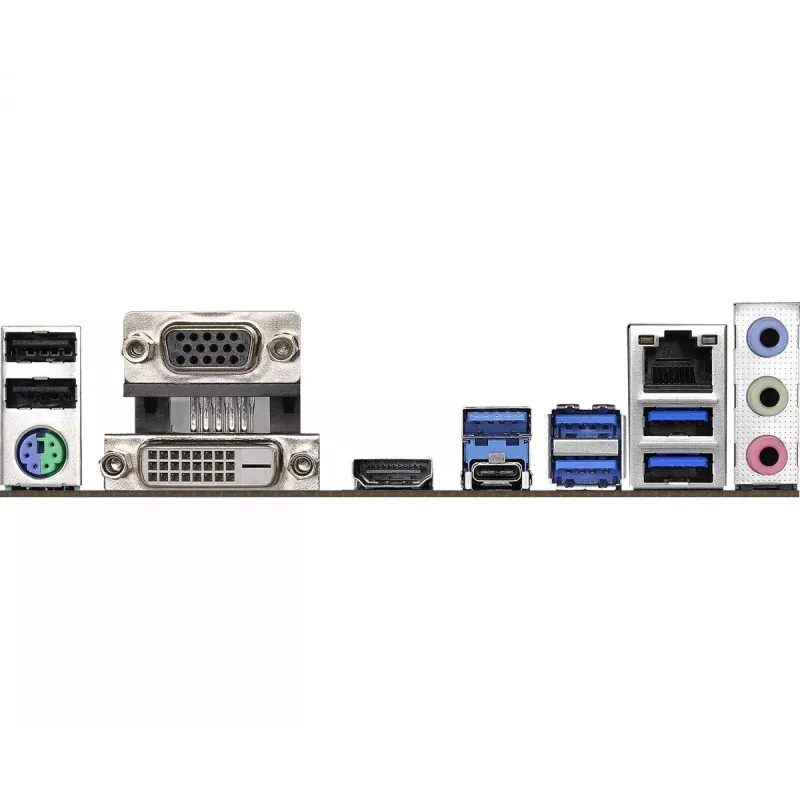

  • Display outputs: D-Sub, DVI-D and HDMI (HDMI supports 4K)
  • Display capability: Triple Monitor support from rear I/O
  • Software: A-Tuning utility; Live Update & APP Shop for drivers and apps
  • Protection: Full Spike Protection against voltage surges
Specifications
12V power connector
Yes
ACPI version
5.1
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC892
Audio output channels
7.1
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bundled software
ASRock A-Tuning, ASRock Polychrome RGB, ASRock XFast LAN, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Easy RAID Installer
Cables included
SATA
Certification
FCC, CE, ErP/EuP
Chassis intrusion connector
Yes
Compatible processor series
AMD Athlon
Component for
PC
CPU fan connector
Yes
Depth
244 mm
DirectX version
12.0
Discrete graphics support
Yes
Drivers included
Yes
DVI-D ports quantity
1
ECC сompatibility
ECC & non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
Harmonized System (HS) code
84733020
HDCP
Yes
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Maximum internal memory
128 GB
Maximum number of SMP processors
1
Maximum resolution
4096 x 2160
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B450
Motherboard chipset family
AMD
Motherboard form factor
Micro ATX
Number of chassis fan connectors
3
Number of COM connectors
1
Number of displays supported
3
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA III connectors
4
Parallel processing technology support
CrossFireX, Quad-GPU CrossFireX
PC health monitoring
Water cooling, Voltage, Temperature, FAN, CPU
PCI Express x1 (Gen 2.x) slots
1
PCI Express x16 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Plug and Play
Yes
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM4
PS/2 ports quantity
1
Quick installation guide
Yes
RAID levels
1, 10
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2133, 2400, 2667, 2933, 3200
Supported memory module capacities
32GB, 4GB, 8GB, 16GB
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Supported storage drive interfaces
SATA III, M.2
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.3
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
VGA (D-Sub) ports quantity
1
Wake-on-LAN ready
Yes
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
