AQARA Display Switch V1 (WS-K02D) - Zigbee switch with display

Highlights:

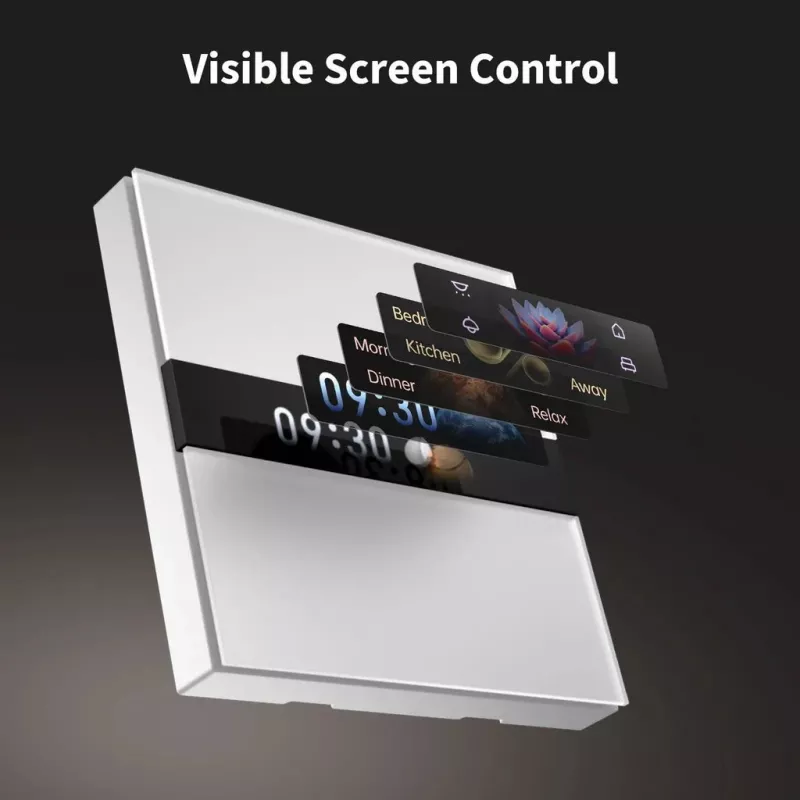

• Visible Screen: Buttons can be renamed via App to identify their functions①. This 4-button switch features a 2.08” LCD screen that can display user-defined text and icons, ensuring clear identification of the device controls by each button and the actual function. Users can also adjust text size②, color, and icons for a tailored and user-friendly experience.
• Flexible Control③: The 2 buttons on the left are designed as electrical switches (controlling wired loads), users can configure the device through Aqara Home and control it through switches. The 2 buttons on the right are wireless switches, and the 4 buttons can be used as wireless switches at the same time or directly used as customized scene triggers.
• Zigbee with Matter over Bridge④Support: With Matter over Bridge Support, it can integrate the switch with other third-party ecosystem such as Apple Home, Amazon Alexa, Google Home, Samsung SmartThings, Home Assistant and Homey. With Zigbee, it can be used as a Zigbee repeater to maintain stable communication among sub-devices, and has ultra-low standby power consumption, reducing electricity costs.
• Proximity Activation⑤: Built-in presence sensor, the switch allowing users to trigger the screen based on distance. The switch's default automation allows users to set automation according to their preferences when someone approaches, bringing users a convenient experience.
• Power Monitoring⑥: The switch monitors the power consumption of connected devices and provides daily/weekly/monthly energy consumption reports in Aqara Home. Users can use these data reports to optimize their daily electricity usage to reduce consumption and increase sustainable energy use.
• Premium Texture and Fingerprint Resistance: The AG glass panel gives the switch an outstanding appearance and comfortable texture. The fingertips feel warm and comfortable like skin, and the micro switch brings a smooth control feel like a dragonfly touching the water. The switch panel adopts anti-fingerprint technology to effectively reduce fingerprints and stains, keeping the surface smooth and clean as new.

Disclaimers:

• ① This function will be available Only in Aqara Home.
• ② When large text is enabled, only text can be displayed, without icons.
• ③ This function will be available only in Aqara Home, and requires a compatible Aqara hub. But Wireless Switch display (exposed buttons) in third-party Matter apps may be unavailable by the time of launch (only Apple Home & Home Assistant now), which will depend on the third-party app's future OTA updates.
• ④Matter over Bridge support requires a compatible Aqara hub (all Aqara hubs for sales except G2H Pro by the date of the product's launch). Matter over bridge support requires a Matter controller for the corresponding ecosystem.
• ⑤Proximity activation distance can be set within five different settings from near to far (0.2-0.6-1-1.5-2 meters). This distance setting function will be available only in Aqara Home.
• ⑥This function will be available Only in Aqara Home.

Specifications:

• Product Name: Display Switch V1 EU
• Model: WS-K02D
• Product Dimensions: 86 × 86 × 42.2 mm (3.39 × 3.39 × 1.66 in.)
• Operating Temperature: -10°C ~ 40°C (14°F ~   104°F)
• Operating Humidity: 0 ~ 95% RH, no condensation
• Wireless Protocols: Zigbee, Bluetooth
• Electrical Parameters: 200–240 VAC, 50/60 Hz, Max 8 A (Resistive Load), µ

What is in the Box:

• Display Switch V1 EU × 1,
• User Manual × 1,
• Compliance Statement × 1,
• Screw Kit × 1
