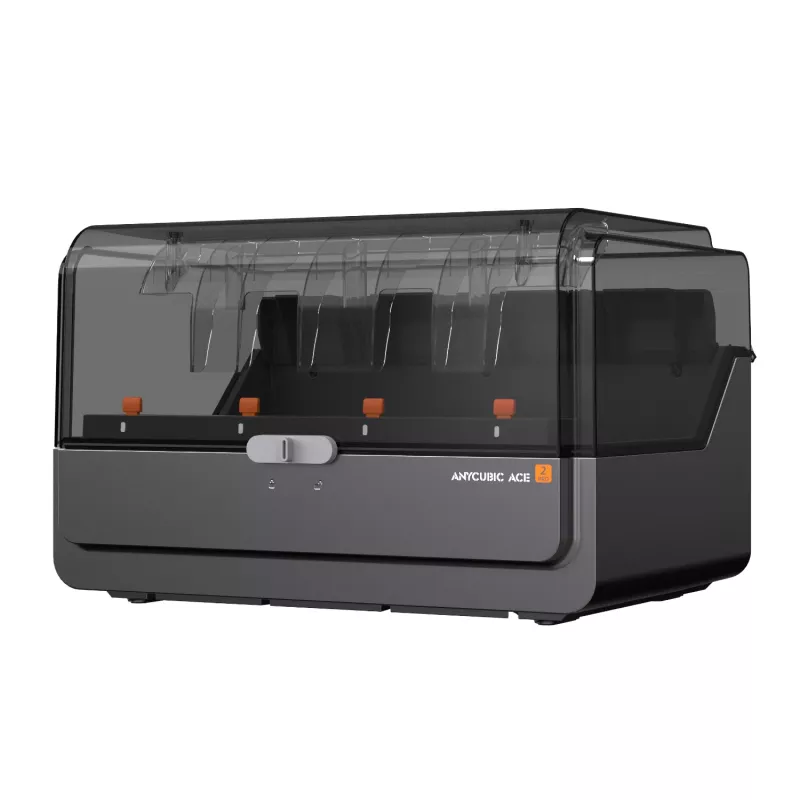

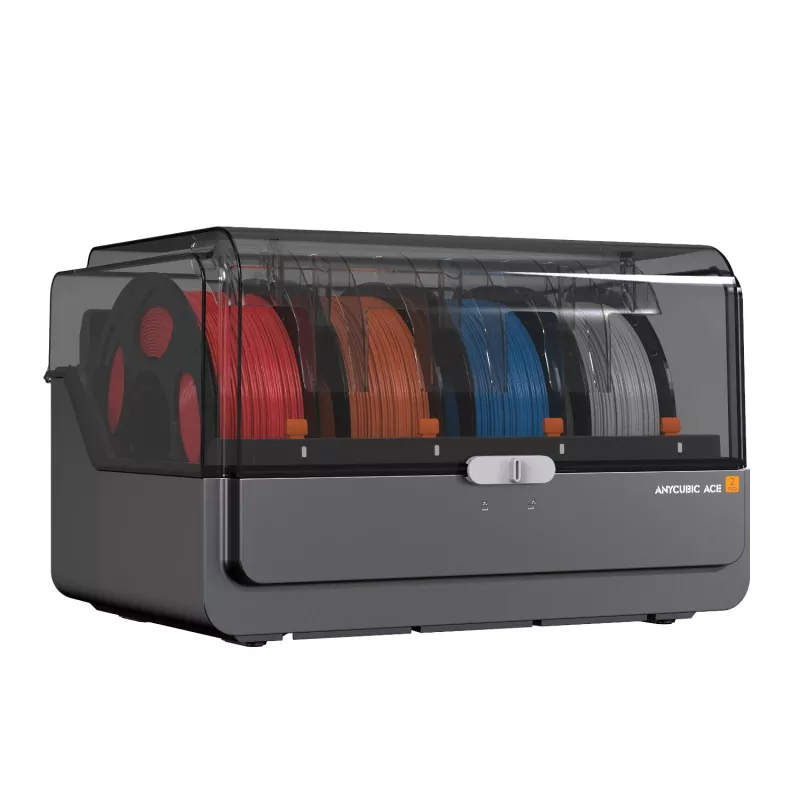

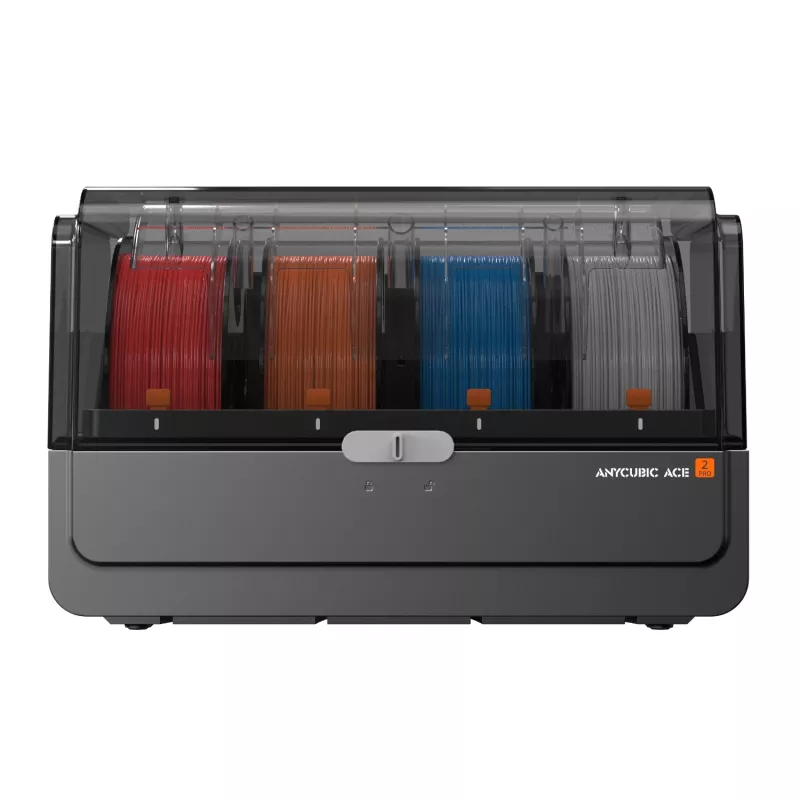

Anycubic Ace 2 Pro Multi-Filament System for Kobra 3 Max, 3V2, 3

The Anycubic Ace 2 Pro Multi-Filament System is an advanced external unit designed to enable multi-color and multi-material 3D printing with compatible Anycubic Kobra 3 series printers. It supports automatic filament switching, run-out and tangle detection, and features a sealed design for moisture resistance. This system expands creative possibilities by allowing up to four different filaments to be used in a single print job.

Advantages

Seamless integration with Anycubic Kobra 3, Kobra 3 V2, and Kobra 3 Max printers. Automatic filament switching reduces manual intervention. Run-out and tangle detection ensure print reliability. Moisture-resistant sealed design helps maintain filament quality. Compatible with a wide range of filament types including PLA, PETG, ABS, ASA, PVA, HIPS, PA, PC, and TPU.

Suitable for

• 3D printing enthusiasts seeking multi-color or multi-material prints
• Users of Anycubic Kobra 3, Kobra 3 V2, or Kobra 3 Max printers
• Applications requiring support materials (PVA, HIPS) or flexible filaments (TPU)

Key specifications

• System Type: Multi-Filament System (MFS)
• Number of Filament Slots: 4
• Compatible Filament Diameter: 1.75 mm
• Compatible Filament Types: PLA, PETG, ABS, ASA, PVA, HIPS, PA, PC, TPU
• Printer Compatibility: Anycubic Kobra 3, Anycubic Kobra 3 V2, Anycubic Kobra 3 Max
• Filament Switching: Automatic
• Filament Detection: Run-out detection, Tangle detection
• Moisture Control: Sealed design for moisture resistance
• Connectivity to Printer: Dedicated data/power cable
• Power Input: DC 24V (typically supplied by printer)
• Operating Temperature: 15°C - 30°C
• Operating Humidity: 20% - 80% RH (Non-condensing)
• Construction Material: High-strength ABS plastic, metal components
• User Interface: Integrated with 3D printer's touchscreen
• Function: Enables multi-color and multi-material 3D printing
• Installation: External, connects to the 3D printer
• Included Accessories: Connection cables, filament guide tubes

Recommendations

For optimal performance, use high-quality 1.75 mm filament and ensure the printer firmware is up to date. The Ace 2 Pro is designed to work exclusively with Anycubic Kobra 3 series printers; verify compatibility before purchase.
