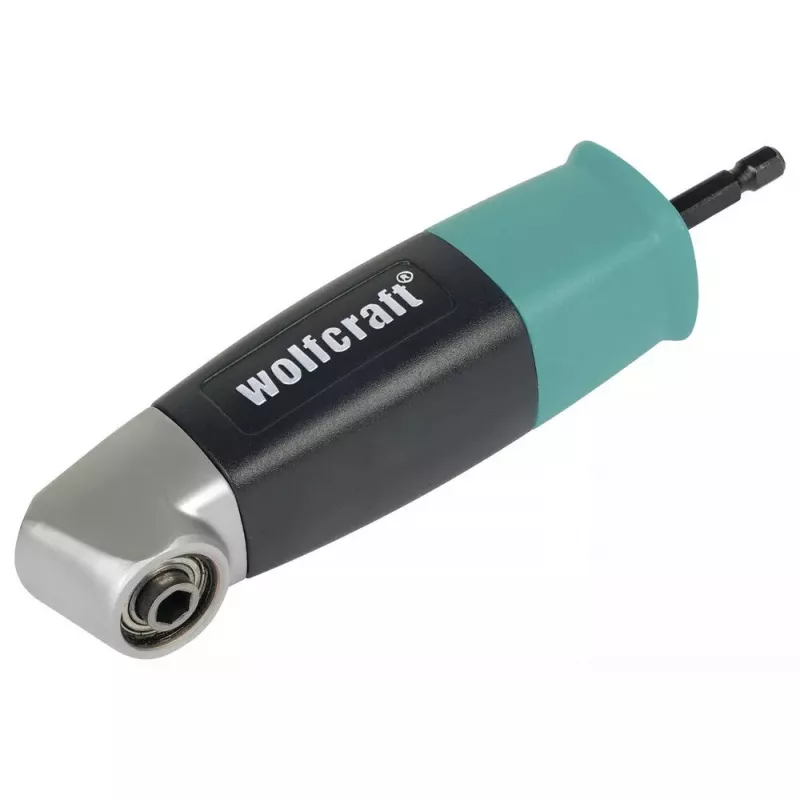

Angle gear for screwdriver Wolfcraft 4688000, hex shank 6.35 mm, max torque 13 N·m, 400 RPM, black

The wolfcraft 4688000 angular gear is an adapter designed to convert cordless screwdrivers into a compact right-angle driver. With an overall corner dimension of 52 mm (including a 25 mm bit) and a ball-bearing gear, it provides smooth rotation and stable performance. The unit supports reversible right/left rotation, reaches up to 400 RPM and delivers a maximum torque of 13 Nm. The accessory is intended for installation onto compatible cordless screwdrivers to enable access to confined spaces.

Advantages

The angular gear offers a very small head size for working in tight corners while preserving reliable transmission through its ball-bearing gear. Its reversible rotation and rated top speed of 400 RPM combined with a torque capability of up to 13 Nm make it suitable for both delicate screwdriving and more demanding fastening tasks. The compact design accommodates a 25 mm bit and allows convenient attachment to standard cordless screwdriver chucks.

Suitable for

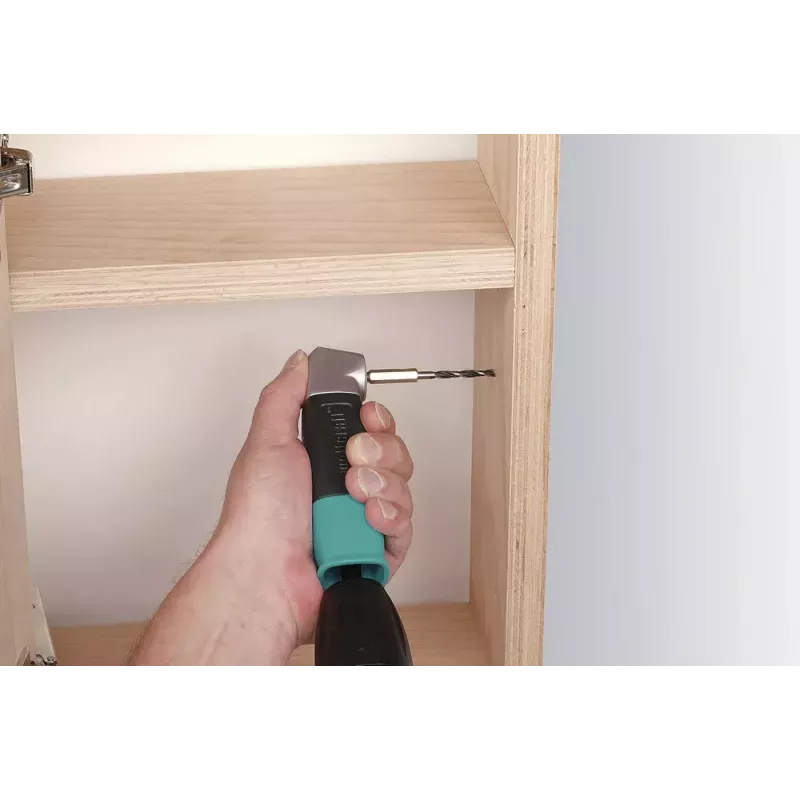

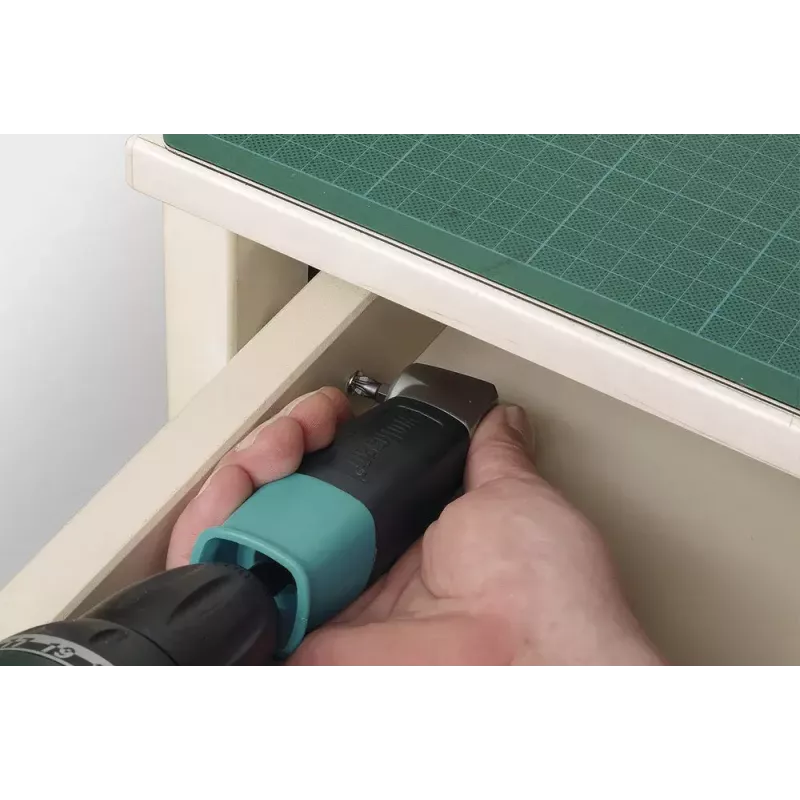

• Accessing screws in narrow or confined spaces

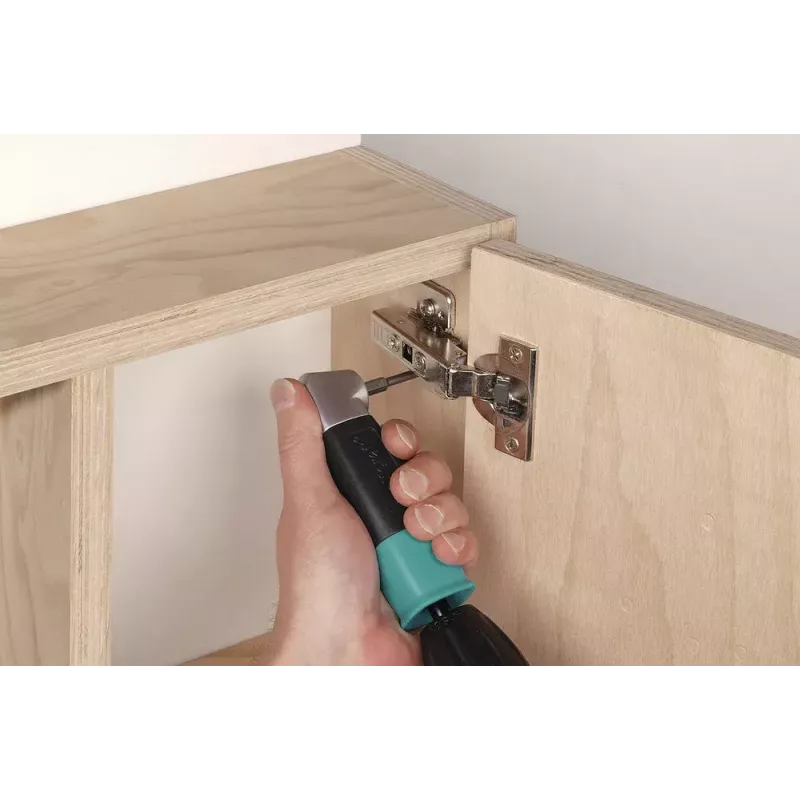

• Furniture assembly and cabinet installation
• Woodworking and joinery where angled screwdriving is required
• General DIY fastening tasks with cordless screwdrivers

Key specifications

• Brand: Wolfcraft
• Model / MPN: 4688000
• EAN: 4006885468801
• Type: angular gear / right-angle adapter
• Corner dimension (with 25 mm bit): 52 mm
• Drive compatibility: cordless screwdrivers (standard 1/4" hex bits)
• Maximum speed: 400 RPM
• Maximum torque: 13 Nm
• Rotation: right/left (reversible)
• Gear: ball-bearing supported

How to use

Attach a compatible 25 mm 1/4" hex bit to the angular gear, then connect the adapter to the chuck or bit holder of a compatible cordless screwdriver. Use the screwdriver as usual, selecting forward or reverse for tightening or loosening. Keep the angular gear aligned with the screw axis when driving screws to ensure proper engagement and to avoid side loads on the bit or fastener. After use, remove the adapter and store it in a dry place.

Recommendations

Do not exceed the specified maximum torque of 13 Nm and avoid using the adapter with high-impact or high-torque impact drivers. For optimal lifespan, operate at moderate speeds, avoid side bending loads, and regularly check the bit and adapter for wear.
