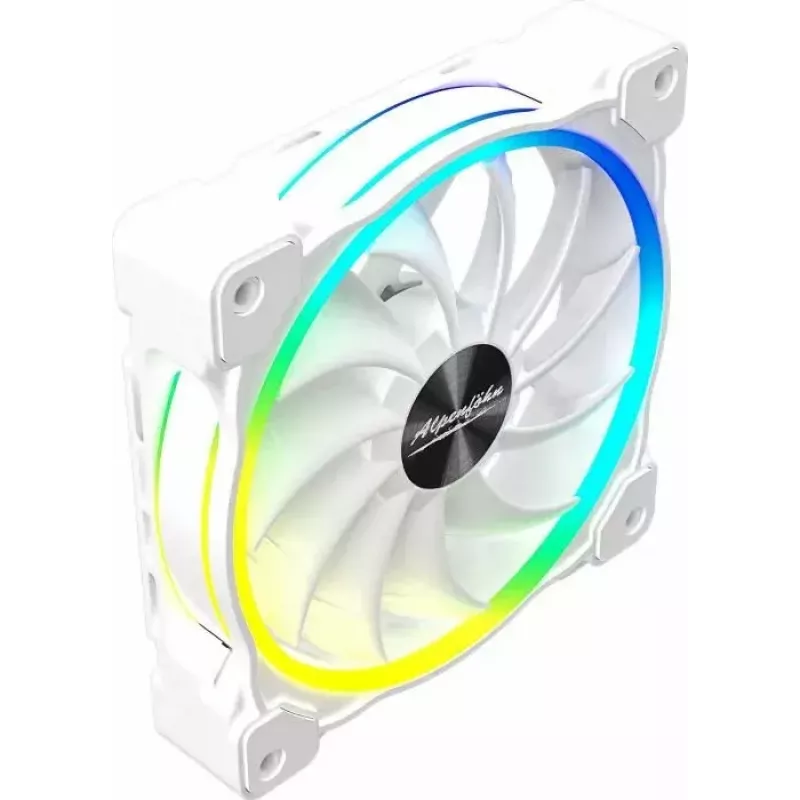

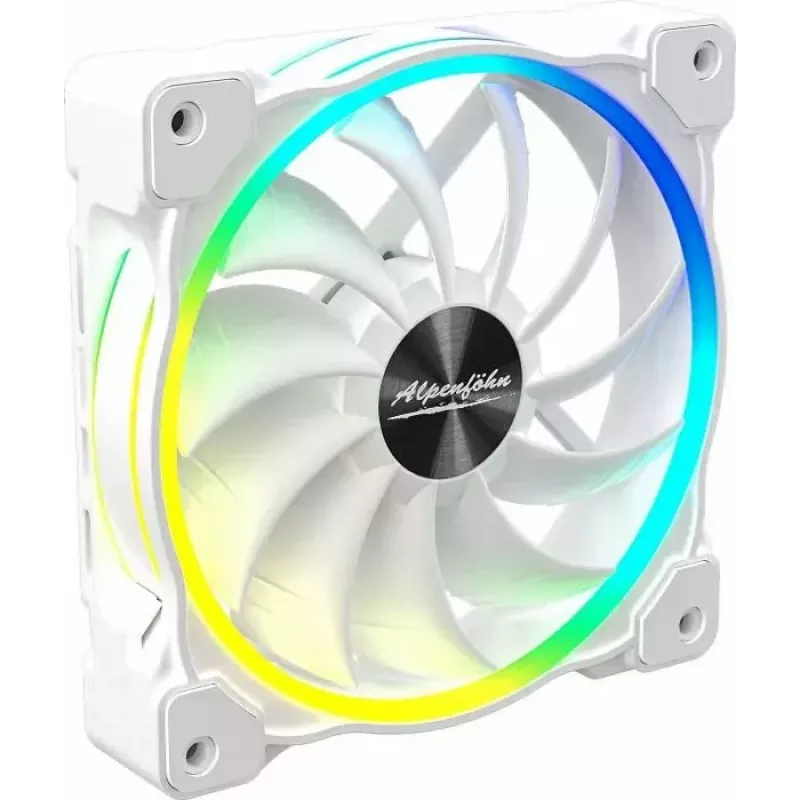

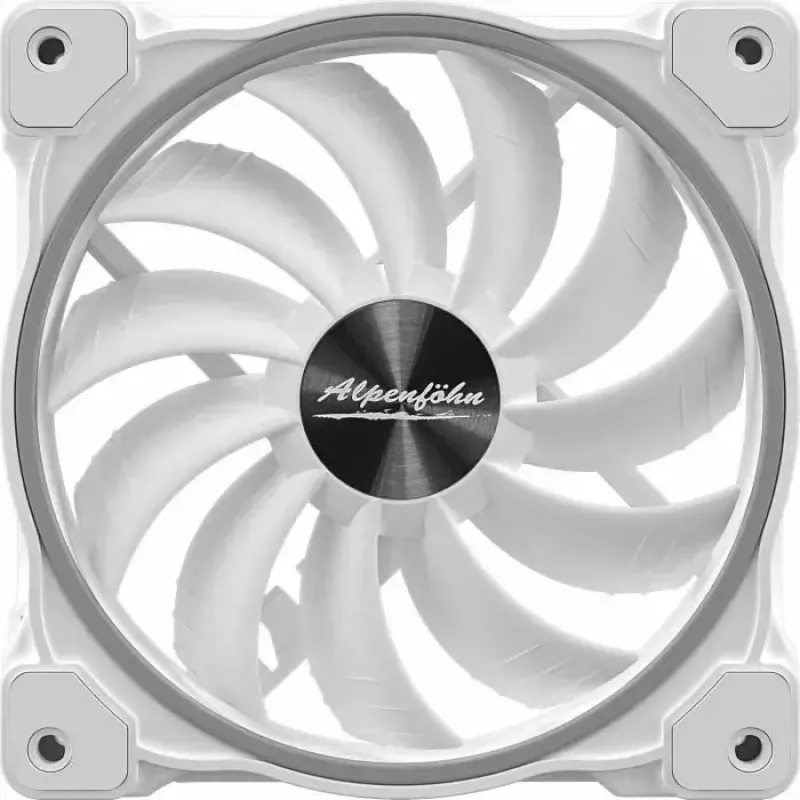

Case fan Alpenföhn Wing Boost 3 ARGB High Speed 120 mm, 36.8 dB (max noise)

Alpenföhn Wing Boost 3 ARGB High Speed 120 mm is a case fan for PC cooling that combines a high-speed motor with ARGB illumination. The fan is intended for airflow-focused cooling in desktop systems and can be used on radiators, as chassis intake or exhaust, or for spot cooling to improve component temperatures while providing customizable lighting effects.

Advantages

The fan delivers adjustable airflow with a speed range of 700–2200 rpm and a maximum rated noise level of 36.8 dB(A). It uses a hydrodynamic slide bearing (FDB) for reduced wear and reliable operation, offers a 4‑pin PWM connector for precise speed control, and includes vibration dampers to minimize transmitted vibrations. ARGB lighting is supported via a 3‑pin +5V header compatible with ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion and MSI Mystic Light Sync.

Suitable for

• Chassis intake or exhaust
• Radiator cooling in liquid-cooled systems
• Spot cooling of hot components (VRM, GPU area)
• Systems requiring ARGB lighting synchronization

Key specifications

• Size: 120 x 120 x 25 mm
• Speed: 700–2200 rpm
• Airflow: 132.4 m3/h
• Air pressure: 3.24 mmH2O
• Noise level: 36.8 dB(A) (max)
• Bearing: Hydrodynamic slide bearing (FDB)
• Connector: 4‑pin PWM
• Voltage range: 7–13.2 V
• Power consumption: 3.84 W
• RGB header: 3‑pin +5V (DATA, GND)

How to use

Install the fan into a 120 mm mounting position in the case or on a compatible radiator using the supplied screws or mounting hardware. Connect the 4‑pin PWM power cable to a motherboard fan header for speed control. Attach the ARGB 3‑pin +5V cable to a compatible motherboard ARGB header or to a supported controller to enable lighting control and synchronization. Ensure airflow orientation matches your intended intake or exhaust direction.

Recommendations

For best results, configure fan curves in the motherboard BIOS or fan control software to balance airflow and noise; use vibration-damping mounts if available and verify ARGB compatibility with your motherboard’s 5V addressable RGB header before connecting.
