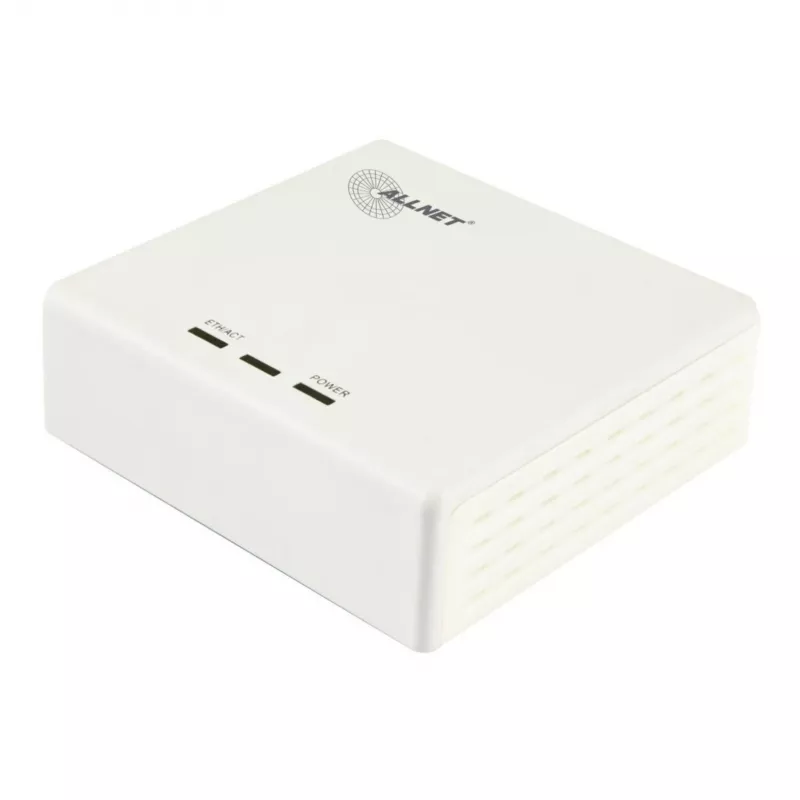

ALLNET CoaxNet ALL168607 - Bridge - GigE, HomePlug AV (HPAV), HomePlug AV 2.0, IEEE 1901

The ALLNET CoaxNet ALL168607 is a high-performance coaxial network bridge that extends your home network over existing coaxial cables, delivering reliable Gigabit Ethernet connectivity. It supports HomePlug AV and HomePlug AV 2.0 standards, ensuring compatibility with a wide range of powerline devices.

Advantages

Leverage your existing coaxial wiring for a stable, high-speed network without the need for new cables. Enjoy data rates up to 1200 Mbps over coax, with a range of up to 400 meters. The bridge supports up to 16 devices on the same network and coexists with TV signals, making it ideal for whole-home coverage.

Suitable for

• Home users wanting to extend network coverage to rooms with coaxial outlets
• Small offices needing reliable wired connections without drilling new cables
• IPTV and streaming applications requiring high bandwidth and low latency

Key specifications

• Device Type: Coaxial Network Bridge
• Connectivity Technology: Wired
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV 2.0 (HPAV2)
• Powerline/Coax Data Rate: Up to 1200 Mbps
• Ethernet Data Rate: 10/100/1000 Mbps
• Network Standards: IEEE 1901, HomePlug AV, HomePlug AV2, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Interfaces: 1 x 10/100/1000Base-T RJ-45, 1 x Coaxial F-Type Input, 1 x Coaxial F-Type Output
• Encryption: 128-bit AES
• Features: Quality of Service (QoS), Plug and Play, LED indicators, IGMP snooping, Coexistence with TV signals
• Max. Range (Coaxial): Up to 400 meters
• Max. Devices per Network: Up to 16
• Power Supply: External Power Adapter (DC 12V, 1A)
• Power Consumption: Typically 3.5W (operating)
• LED Indicators: Power, Coax Link, Ethernet Link
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity Range Operating: 10 - 90% (non-condensing)

Recommendations

For optimal performance, connect the bridge directly to a coaxial wall outlet and avoid splitters if possible. Use with other HomePlug AV/AV2 devices for seamless integration.
