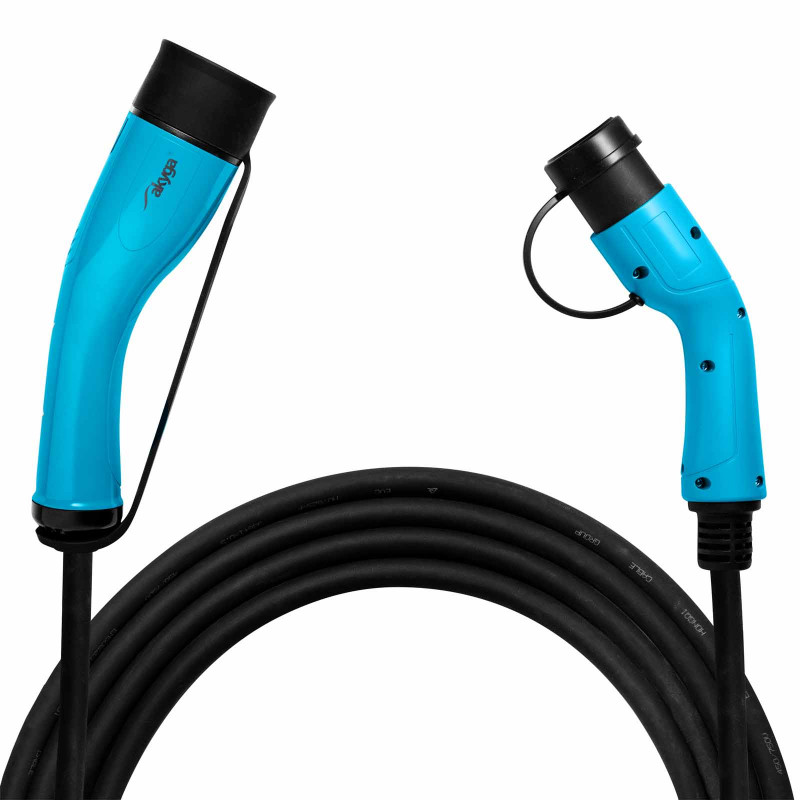

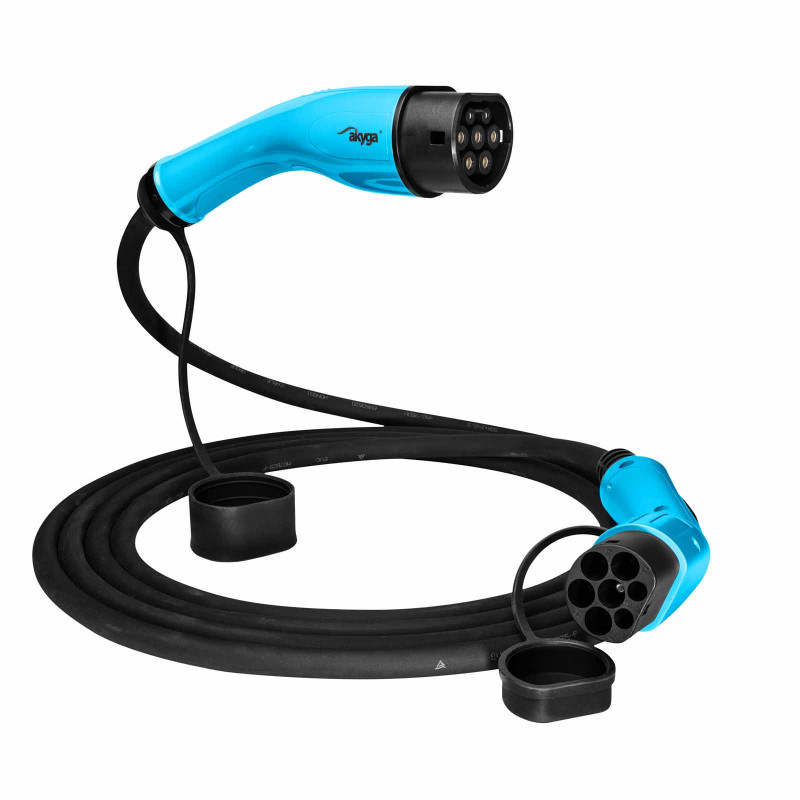

Akyga AK-EC-16 EV Charging Cable Type 2 / Type 2, 3-phase 32 A 22 kW, 6 m

The Akyga AK-EC-16 is an electric vehicle charging cable with Type 2 (Mennekes) plugs on both ends, allowing safe and efficient 3-phase charging.

Key features

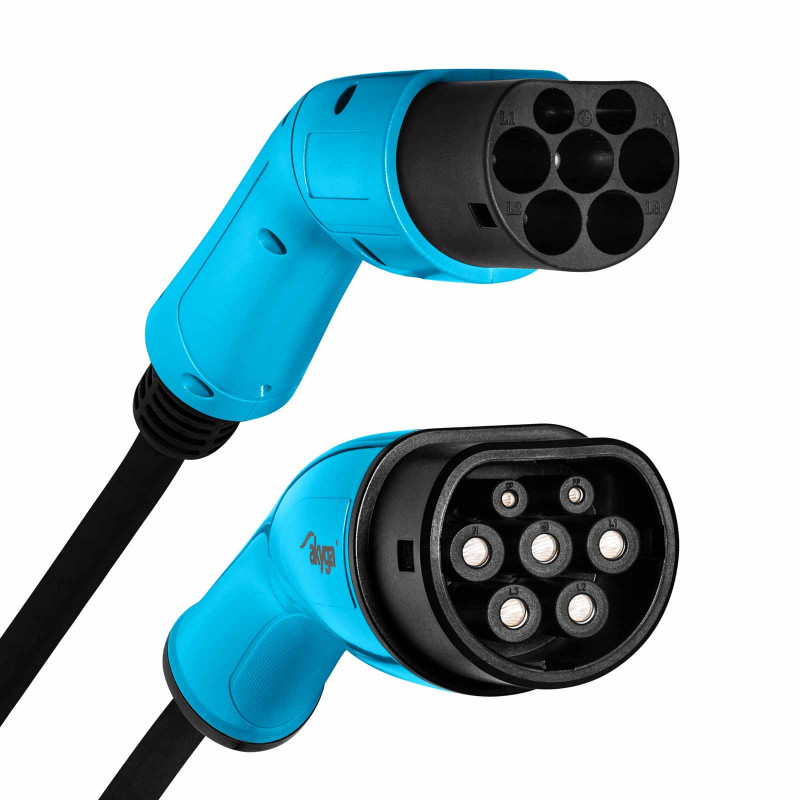

• Type 2 plugs with a comfortable handle
• 3-phase charging with a current of up to 32 A
• Power of 22 kW
• 6 m cable

Specifications

• Brand: Akyga
• Model: AK-EC-16
• Standard: Type 2 / Type 2
• Output current: 32 A
• Power: 22 kW
• Cable length: 6 m

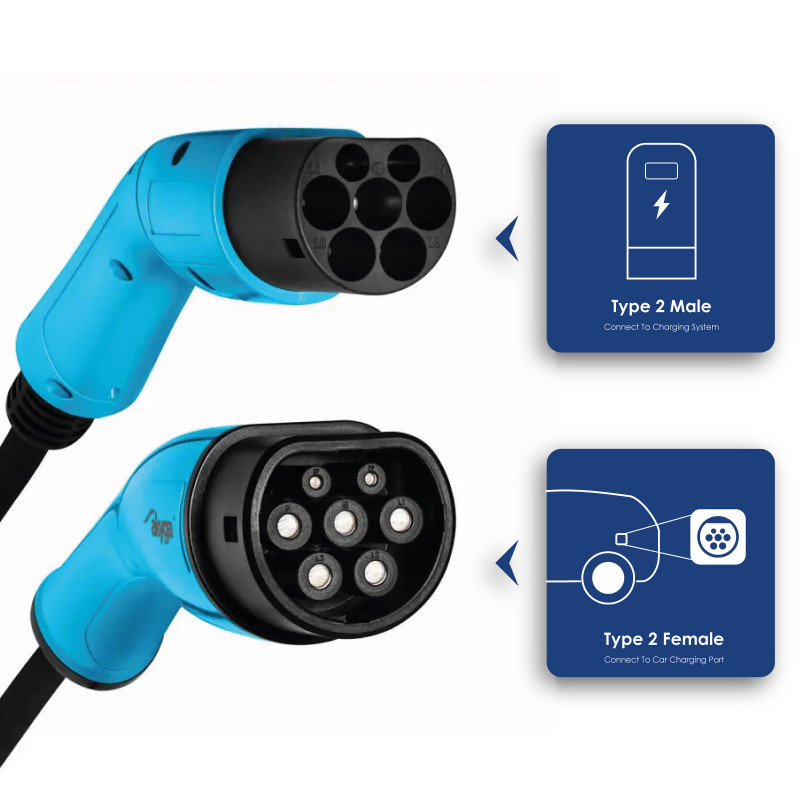

• Plugs: Type 2 (IEC 62196-2) male / Type 2 (IEC 62196-2) female
• Supply voltage: 240-450 V, 50/60 Hz
• Wire gauge: 5 x 6 mm2 + 1 x 0.5 mm2, copper, TPE insulation
• IP rating: IP54
• Operating temperature: -30 to +50 °C
• Colour: Black, blue
• Weight: 4.48 kg
