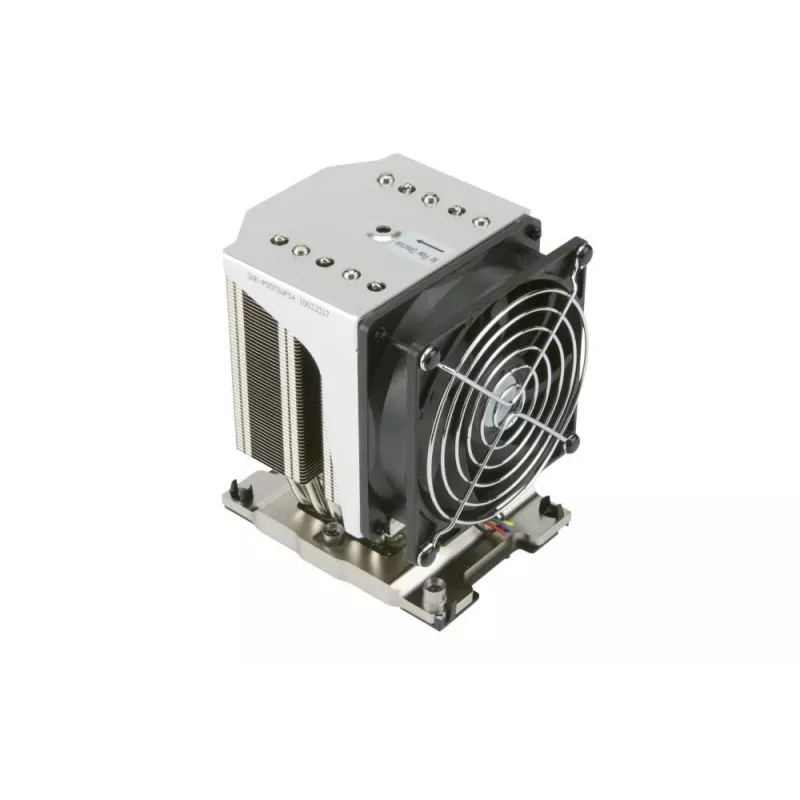

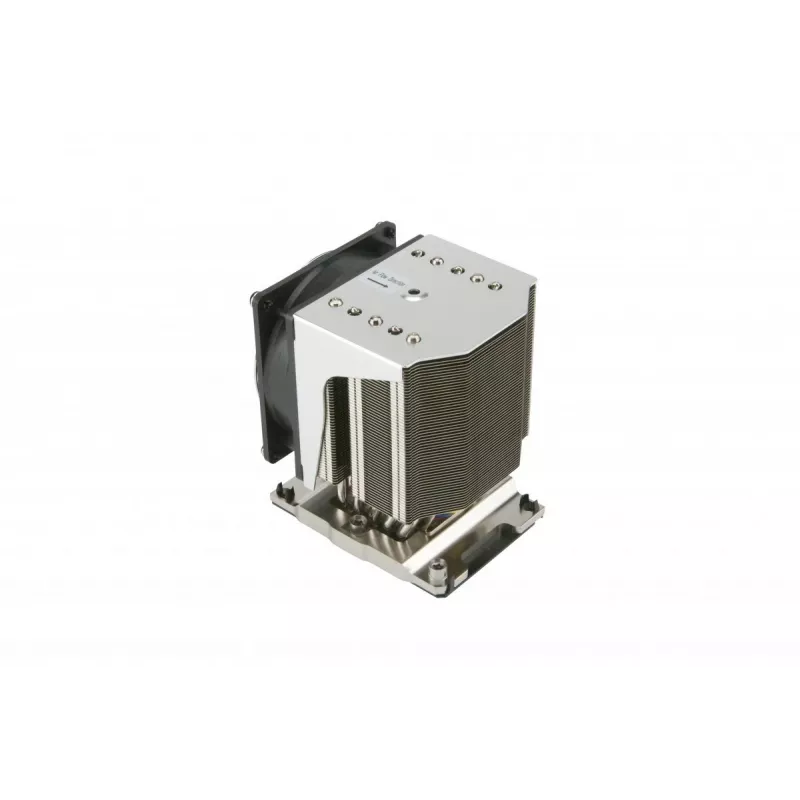

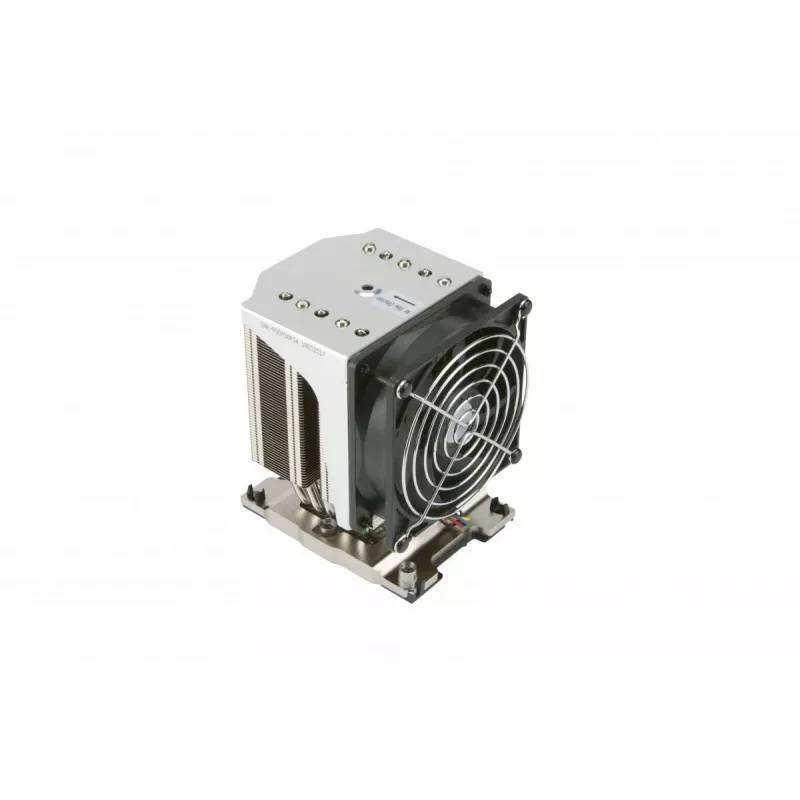

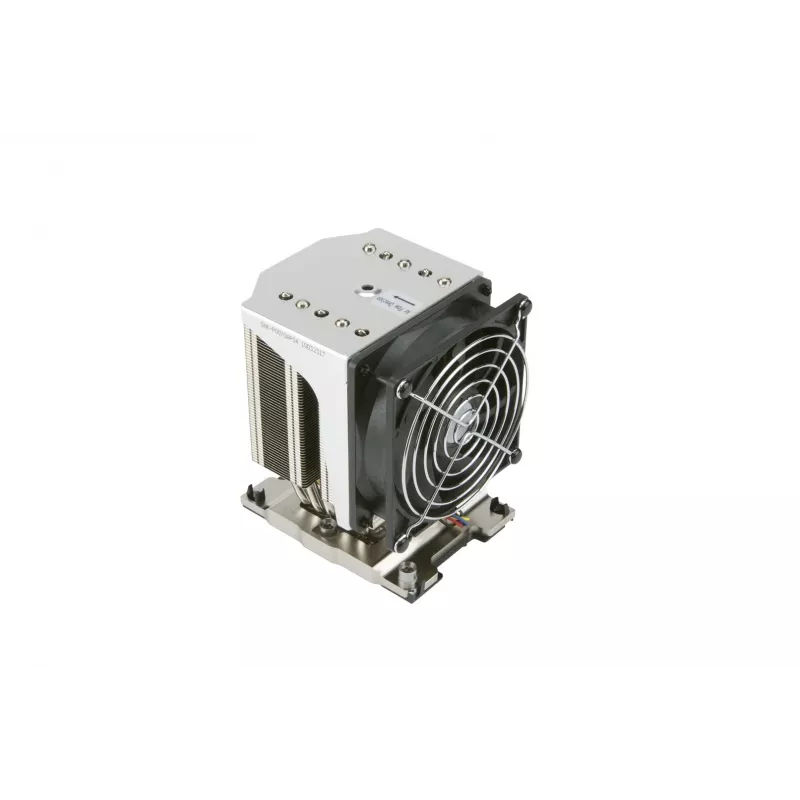

Air cooler Supermicro SNK-P0070APS4 Processor Cooling System 9.2 cm

The Supermicro SNK-P0070APS4 air cooler is developed for Supermicro X11 generation 4U servers and workstations using Intel® Xeon® Scalable processors and LGA 3647 (Socket P) platforms. It is factory-tested and validated by Supermicro to provide reliable cooling performance for high-density server environments.

Advantages

The cooler combines a 92 mm fan with a compact heatsink optimized for airflow in 4U chassis, supporting processor thermal design power (TDP) up to 205 W. Its validated design ensures compatibility with Supermicro X11 systems and offers durable construction suitable for continuous operation in rack-mounted servers.

Suitable for

• Supermicro X11 generation 4U servers
• Workstations based on Intel® Xeon® Scalable processors
• Systems using LGA 3647 (Socket P) processors
• Environments requiring continuous, reliable processor cooling

Key specifications

• Type: Air cooler
• Fan diameter: 92 mm
• Thermal Design Power (TDP): 205 W
• Supported processor sockets: LGA 3647 (Socket P)
• Manufacturer model: SNK-P0070APS4
• Brand: Supermicro
• EAN: 672042279531

How to use

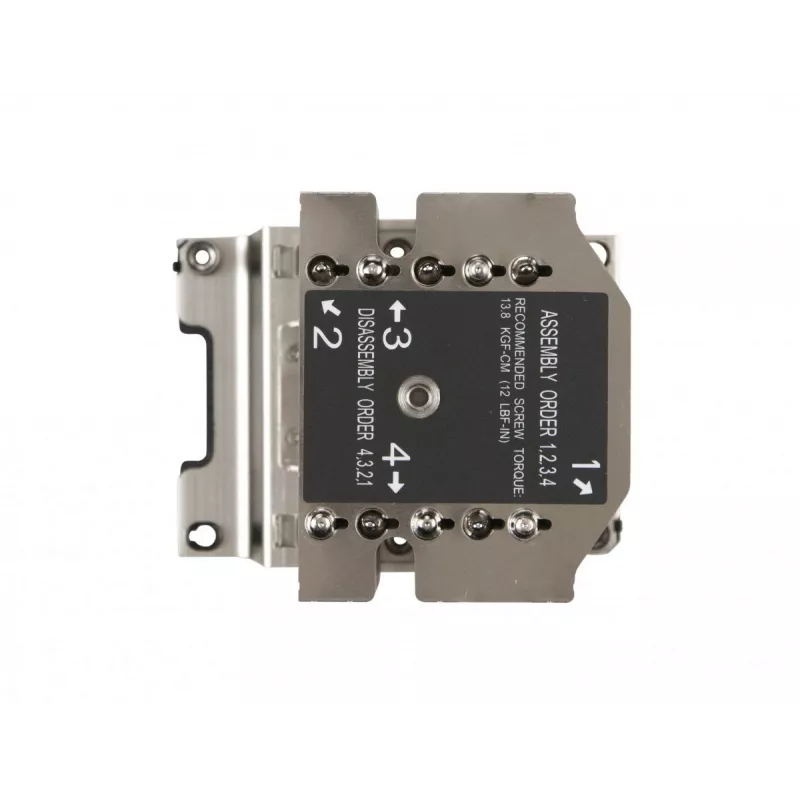

Install the SNK-P0070APS4 into a compatible Supermicro X11 4U chassis following the server manufacturer's installation procedure: power down the system, remove existing cooler if present, align the heatsink with the LGA 3647 socket, secure mounting points according to Supermicro instructions, connect the fan power connector to the appropriate motherboard header, and verify BIOS/firmware thermal settings after boot. Ensure proper airflow direction and unobstructed vents inside the chassis.

Recommendations

For reliable long-term operation, use the cooler in systems with adequate front-to-rear chassis airflow, monitor CPU temperatures under load, replace thermal interface material if removed during maintenance, and follow Supermicro's validated configuration guidelines for X11 4U platforms.
