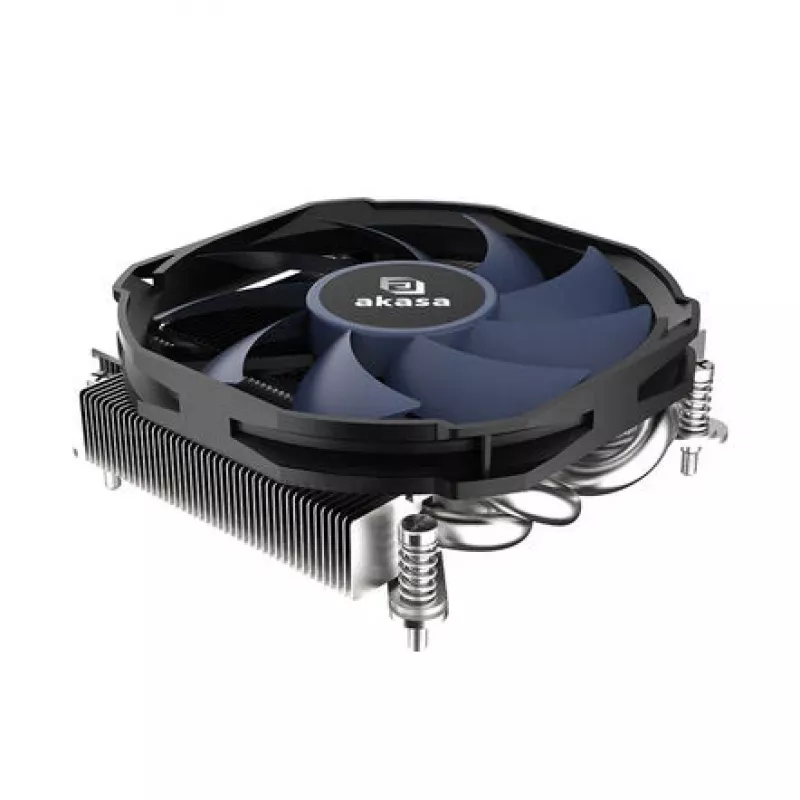

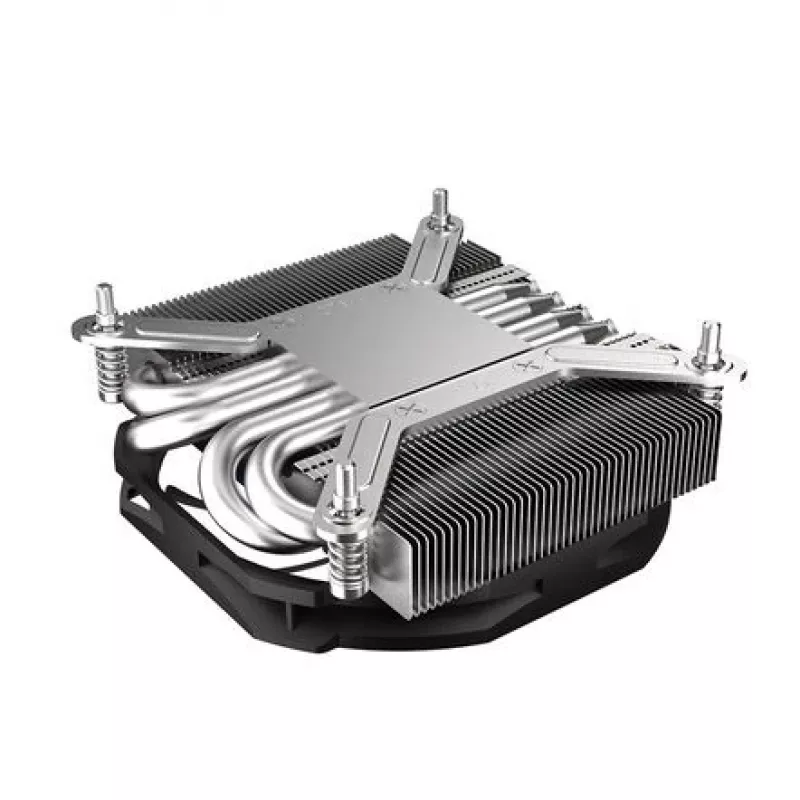

Air cooler Akasa ALUCIA H4i 9.2 cm Black 800-3600 RPM Hydro Dynamic Bearing

The Akasa ALUCIA H4i is a low-profile air cooler designed for Intel platforms, featuring a 29.5 mm height, four copper heatpipes with a nickel-plated copper base and a 92 mm photic blue edition fan. It supports CPUs with a thermal design power (TDP) up to 95 W and is intended for use in compact and small-form-factor PC builds.

Advantages

The 29.5 mm ultra-thin design makes the cooler suitable for mini-ITX and other small cases while the four high-performance copper heatpipes and nickel-plated base provide efficient heat transfer. The fan uses advanced blade geometry and intelligent PWM control (800–3600 RPM) to balance airflow and noise. The rotor with ball bearing improves lubrication and can extend fan life to around 40,000 hours. The cooler’s footprint and 94 × 94 × 29.5 mm dimensions allow compatibility with RAM modules and tight spaces.

Suitable for

• Mini-ITX and other small-form-factor PC builds
• Intel CPUs with up to 95 W TDP
• Systems requiring low-profile cooling to preserve RAM clearance

Key specifications

• Type: Air cooler
• Height: 29.5 mm
• Fan diameter: 92 mm
• Fan speed: 800–3600 RPM (PWM)
• Bearing: Ball bearing / Hydro Dynamic Bearing (model-dependent)
• Heatpipes: 4 copper heatpipes
• Base: Nickel-plated copper
• TDP: 95 W
• Dimensions: 94 × 94 × 29.5 mm
• Supported Intel sockets: LGA 1700, LGA 1200, LGA 1151, LGA 1150, LGA 1155, LGA 1156
• Colour: Black

How to use

Install the cooler using the supplied mounting kit following the motherboard-specific instructions for AM4 and AM5 or the listed Intel sockets. Apply a thin, even layer of thermal paste on the CPU heatspreader, align the cooler over the socket, and secure it with the provided brackets or screws. Connect the fan’s PWM cable to the CPU_FAN or appropriate header on the motherboard and configure fan control in BIOS or OS fan-control software if desired.

Recommendations

Use the Akasa ALUCIA H4i in compact builds where vertical clearance is limited. Verify motherboard compatibility and RAM clearance before installation. Ensure airflow within the case is adequate — intake and exhaust fans should provide steady airflow to assist the low-profile cooler.
