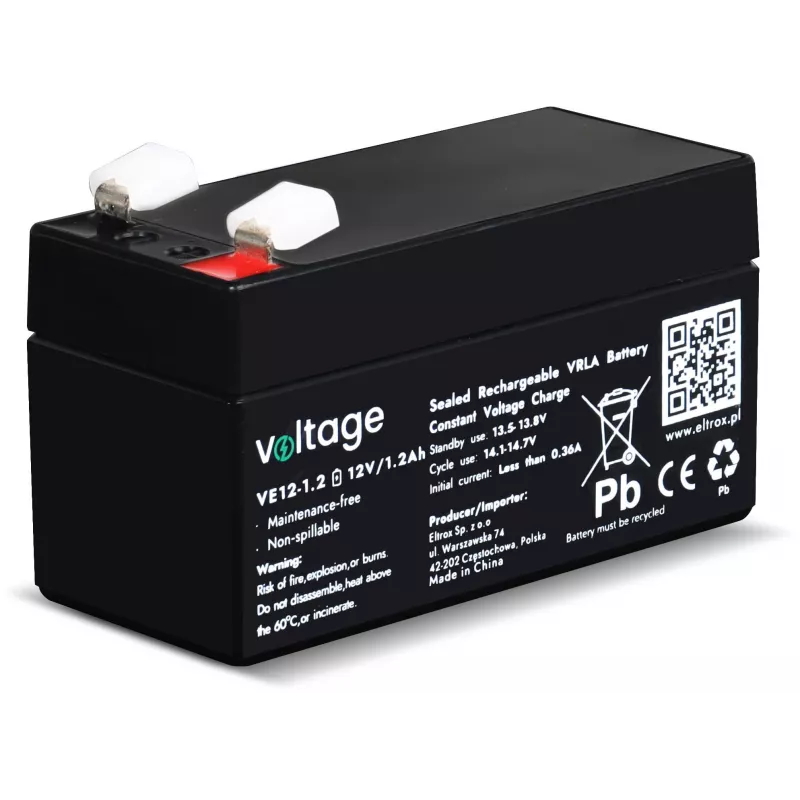

AGM Battery Voltage 12V 1.2Ah VE12-1.2 (6-9 Year Life)

When the power goes out, critical systems like alarm panels, UPS units, and emergency lighting must keep running. The Voltage VE12-1.2 sealed lead-acid battery delivers dependable standby energy in a compact, maintenance-free package. With a 12V nominal voltage and 1.2Ah capacity, it provides the exact backup power needed for low-drain security and safety devices.

Who is it for

This battery is ideal for installers and facility managers who need a reliable, long-life power source for UPS systems, fire and burglar alarms, emergency lighting, medical equipment, and portable electronics. Its 6–9 year design life reduces replacement frequency and total cost of ownership.

Main features

• AGM (Absorbent Glass Mat) technology with valve-regulated, spill-proof construction
• Maintenance-free – no water refilling ever required
• Low self-discharge: less than 3% per month at 25°C
• F1 (Faston Tab 187) terminals for secure, quick connections
• Can be mounted in any orientation except continuously inverted
• CE and RoHS compliant

Specifications

• Battery Type: AGM (Absorbent Glass Mat)
• Chemistry: Sealed Lead-Acid (VRLA)
• Nominal Voltage: 12V
• Nominal Capacity: 1.2 Ah (20HR rate to 1.75V/cell)
• Design Life: 6-9 Years (Eurobat Classification: 5-10 years 'General Purpose')
• Terminal Type: F1 (Faston Tab 187)
• Internal Resistance: Approx. 100 mΩ (fully charged)
• Max. Discharge Current: 18A (5 sec)
• Max. Charge Current: 0.36A
• Float Charge Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Use Voltage: 14.4V - 15.0V (at 25°C)
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Operating Temperature Range (Storage): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Construction: Maintenance-Free, Spill-Proof, Valve Regulated
• Rechargeable: Yes
• Mounting Position: Any orientation (except inverted continuously)
• Certifications: CE, RoHS Compliant
• Recommended Applications: UPS systems, Security systems, Emergency lighting, Fire alarms, Medical equipment, Toys, Portable electronics

Tips

For longest service life, store the battery in a cool, dry place and recharge it at least every six months if not in use. Always use a charger with voltage settings within the recommended float or cycle ranges to avoid overcharging.
