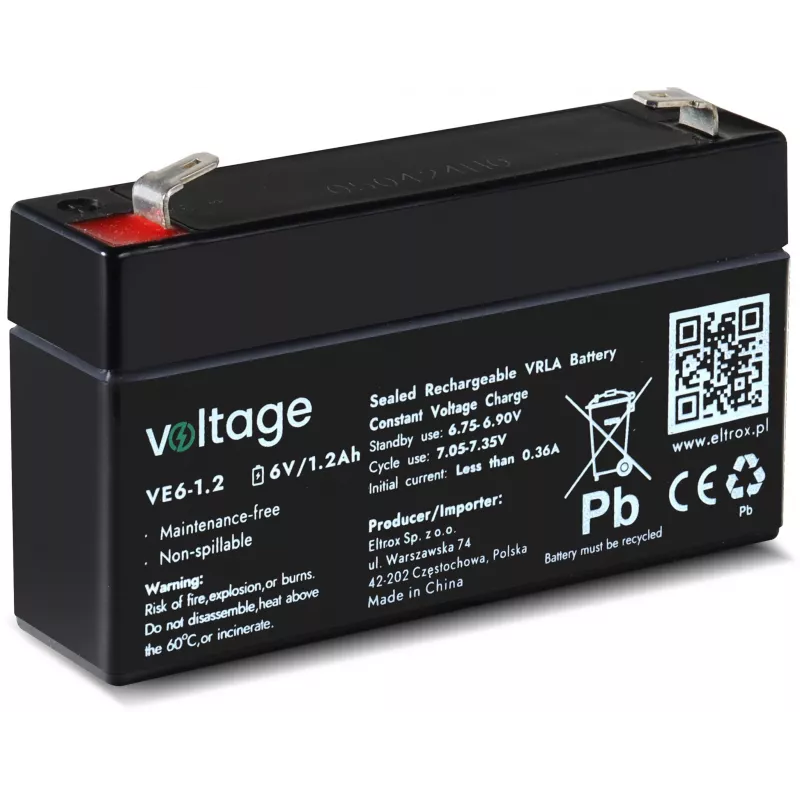

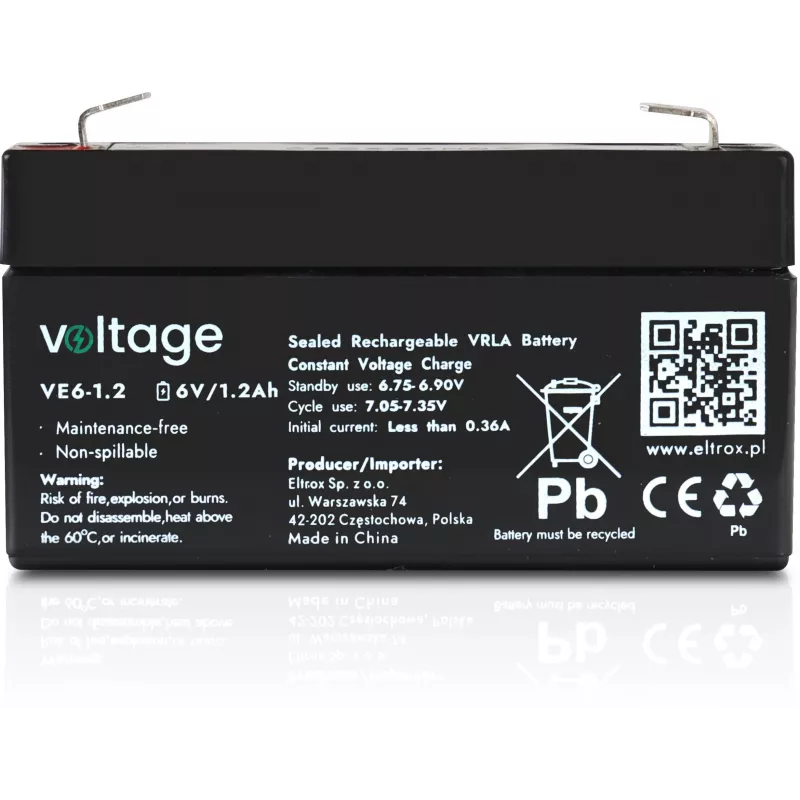

AGM Battery Voltage 6V 1.2Ah VE6-1.2 (Design Life 6-9 Years)

The Voltage VE6-1.2 is a high-quality AGM (Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 6V and a capacity of 1.2Ah (C20), this VRLA battery offers a design life of 6-9 years, making it ideal for security systems, emergency lighting, and other standby power needs.

Advantages

Maintenance-free operation with immobilized electrolyte eliminates the need for water refilling. Low self-discharge rate of less than 3% per month ensures long shelf life. High discharge current capability (up to 18A for 5 seconds) provides reliable power for demanding loads. The ABS plastic container offers durability and resistance to impact.

Suitable for

• Security and alarm systems
• Emergency lighting
• UPS backup power
• Medical equipment
• Telecommunications

Key specifications

• Battery Type: AGM (VRLA)
• Nominal Voltage: 6V
• Nominal Capacity: 1.2Ah (C20)
• Design Life: 6-9 years (Eurobat classification)
• Terminal Type: F1 (Faston 187)
• Internal Resistance: ~100 mΩ at 25°C
• Max Discharge Current: 18A (5 seconds)
• Max Charge Current: 0.36A
• Float Charge Voltage: 6.75-6.90V at 25°C
• Cycle Charge Voltage: 7.20-7.50V at 25°C
• Operating Temperature: -20°C to 60°C (discharge), 0°C to 50°C (charge)
• Container Material: ABS Plastic

Recommendations

For optimal performance and longevity, use a compatible charger with voltage regulation. Store in a cool, dry place. Recycle properly at end of life.
