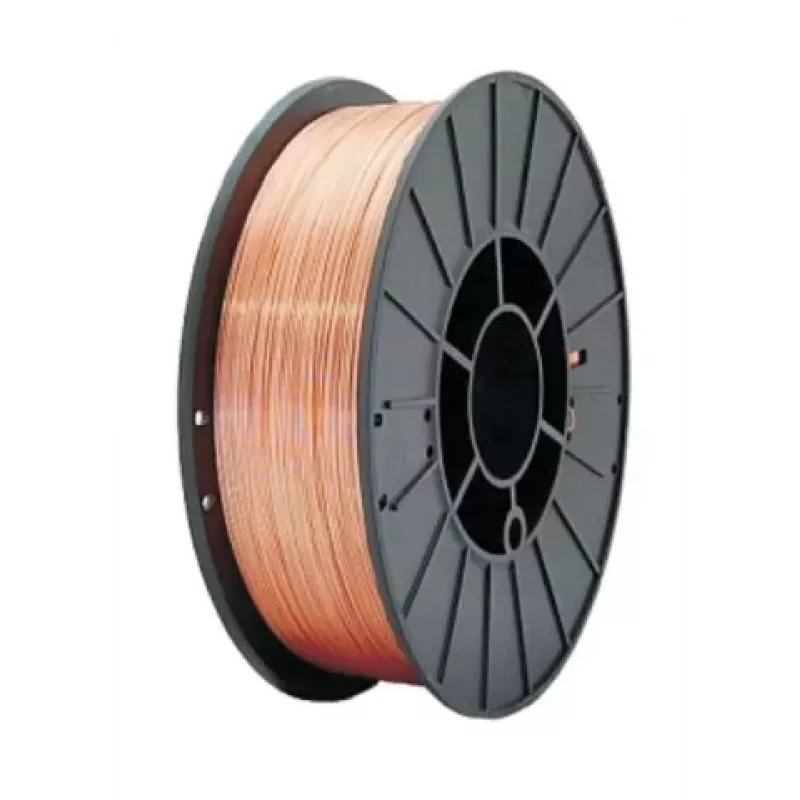

AEROTEC DRUT SPAW. TYSWELD 1.0/15kg MIG Welding Wire SG2 1.0mm 15kg D300

The AEROTEC DRUT SPAW. TYSWELD 1.0/15kg is a high-quality solid MIG/MAG welding wire, classified as SG2 (G3Si1) according to EN ISO 14341-A. With a diameter of 1.0 mm and a spool weight of 15 kg, this wire is designed for general construction, shipbuilding, automotive industry, pressure vessels, and machine building. It offers a stable arc, low spatter, good bead appearance, and high deposition rate.

Advantages

This welding wire ensures excellent weld quality with minimal spatter, providing a clean and efficient welding process. Its high deposition rate increases productivity, while the stable arc and good bead appearance reduce post-weld cleaning. The wire is suitable for all welding positions and works with CO2 or Ar/CO2 mixtures.

Suitable for

• General construction
• Shipbuilding
• Automotive industry
• Pressure vessels
• Machine building

Key specifications

• Wire Diameter: 1.0 mm
• Wire Type: Solid MIG/MAG Welding Wire
• Material Classification: SG2 (G3Si1)
• Spool Weight: 15 kg
• Standard Compliance: EN ISO 14341-A: G 42 4 M21 3Si1 / G 42 3 C1 3Si1
• AWS Classification: AWS A5.18 ER70S-6
• Shielding Gas: CO2 (C1), Ar/CO2 mixtures (M21)
• Tensile Strength (Rm): 500 - 640 MPa
• Yield Strength (ReL): > 420 MPa
• Elongation (A5): > 22%
• Impact Strength (Kv): > 47 J at -30°C
• Spool Type: D300
• Welding Positions: All positions
• Current Type: DC+ (Direct Current Electrode Positive)
• Packaging: Plastic spool, vacuum-sealed

Recommendations

For optimal results, use with appropriate shielding gas and ensure proper storage in a dry environment. This wire is ideal for both manual and automated welding applications.
