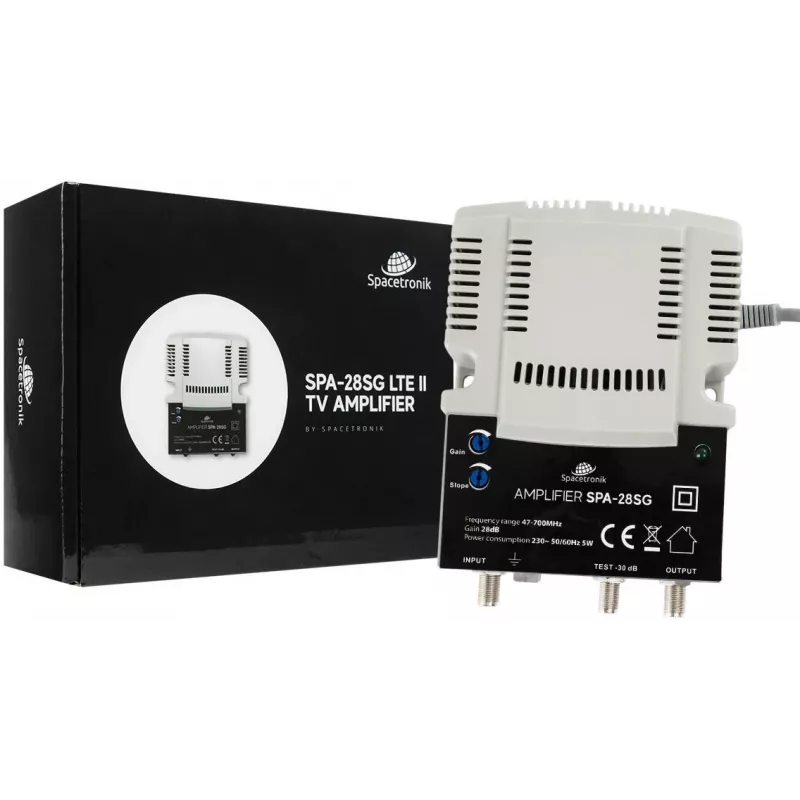

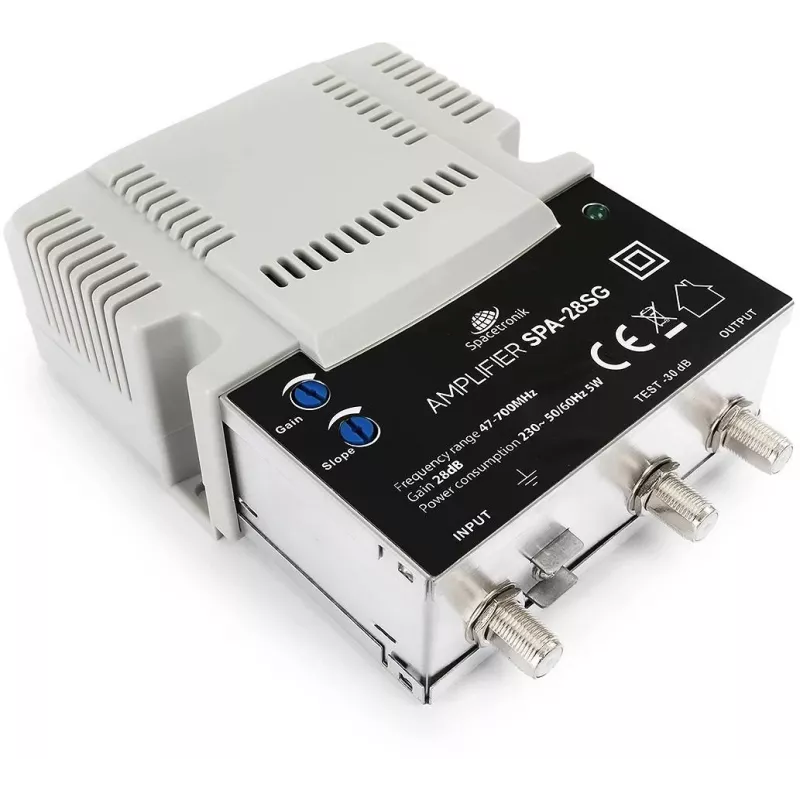

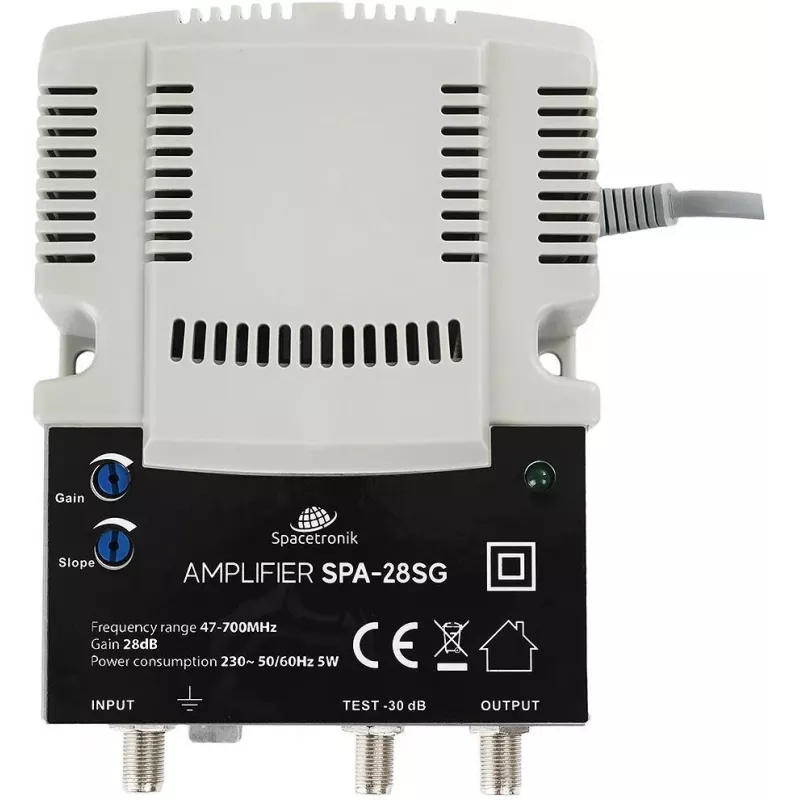

Adjustable Terrestrial and Cable TV Signal Amplifier Spacetronik SPA-28SG LTE II

The Spacetronik SPA-28SG LTE II is a high-performance adjustable terrestrial and cable TV signal amplifier designed to enhance DVB-T/T2 and CATV reception. With a built-in LTE/5G filter, it effectively suppresses interference from mobile networks, ensuring clear and stable signal transmission. The amplifier features adjustable gain from 10 to 28 dB, allowing precise optimization for various signal conditions. Its compact metal housing is suitable for indoor installation, and the built-in power supply simplifies setup.

Advantages

This amplifier offers exceptional flexibility with its adjustable gain control, making it ideal for both weak and strong signal environments. The integrated LTE/5G filter (up to 694 MHz / C60) protects against interference from cellular networks, while the two outputs enable distribution to multiple devices. The low noise figure (<4 dB) ensures minimal signal degradation, and the F-type connectors provide reliable connectivity.

Suitable for

• Home TV installations requiring signal boost for DVB-T/T2 or cable TV
• Small to medium-sized buildings with multiple TV outlets
• Areas with weak terrestrial TV signals or LTE interference

Key specifications

• Frequency Range: 47-694 MHz
• Gain: 10-28 dB (adjustable via potentiometer)
• Number of Inputs: 1
• Number of Outputs: 2
• Noise Figure: <4 dB
• Input/Output Impedance: 75 Ohm
• Connectors: F-type
• LTE/5G Filter: Yes, built-in (up to 694 MHz / C60)
• Power Supply: Built-in 230V AC / 50Hz
• Max Output Level: 100 dBµV (for 2 outputs)
• Power Consumption: 3W
• Housing Material: Metal
• Installation Environment: Indoor

Recommendations

For optimal performance, use high-quality coaxial cables and F-type connectors. Ensure the amplifier is placed in a dry, ventilated area. Adjust the gain gradually to avoid over-amplification, which can cause signal distortion.
