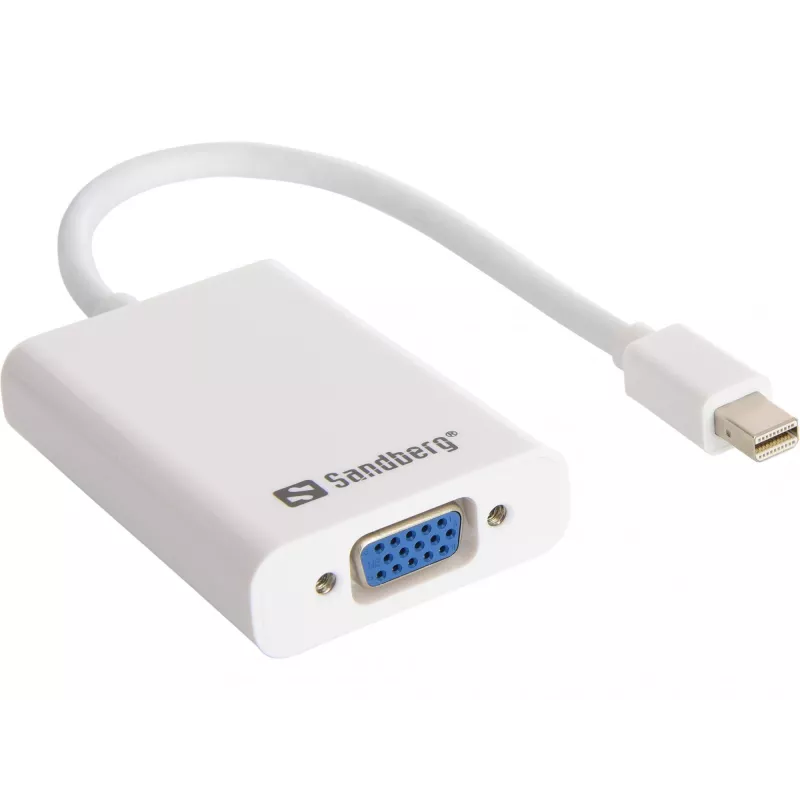

Adapter MiniDP to VGA+Audio Sandberg 509-05

The Sandberg MiniDP to VGA+Audio Adapter lets you connect a device with a Mini DisplayPort output to a monitor or projector using a VGA input while also carrying audio. The compact adapter (0.1 m cable length) is designed for portable use and is suitable for presentations or connecting to older VGA displays.

Advantages

This adapter supports video conversion from Mini DisplayPort to VGA and forwards audio to a separate analog output. Its short, lightweight design makes it easy to carry and convenient for mobile setups. USB power can be used optionally when additional power is required.

Suitable for

• Connecting laptops or PCs with Mini DisplayPort to VGA monitors or projectors
• Presentations in meeting rooms or classrooms with older display equipment
• Temporary setups where a compact, portable adapter is needed

Key specifications

• Brand: SANDBERG
• Model / MPN: 509-05
• Connector 1: Mini DisplayPort (male)
• Output: VGA video and analog audio
• Cable length: 0.1 m
• Dimensions (W×D×H): 75 × 20 × 195 mm

How to use

Connect the Mini DisplayPort end to your source device, then plug the VGA connector into the monitor or projector. If audio is required, connect the adapter's audio output to the external speakers or the display's audio input. Use the optional USB power connection if the source device cannot supply sufficient power for the adapter to operate correctly.

Recommendations

For best results, use native VGA resolutions supported by the target display and ensure all cables are fully seated. When experiencing no audio or video, try enabling the optional USB power or check the source device's display/audio output settings.
