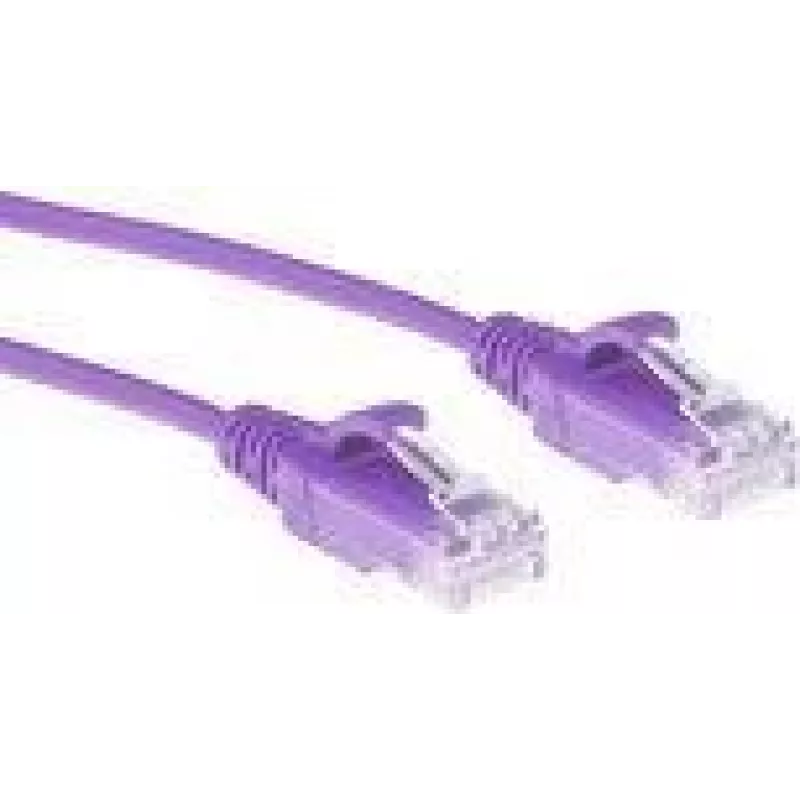

ACT Purple 1.5 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors

ACT Purple 1.5 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors
ACT Purple 1.5 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors
R436
CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.Although ISO/IEC and the TIA standards de... Read More
Stock 487 Code 2178209 Brand ACT Model DC9351 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.

Although ISO/IEC and the TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.

ACT advises a maximum bundle size of 24 cables in PoE applications. In this case the temperature of the cables, that are delivering PoE deployments, will not increase. The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.

ACT Purple 1.5 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors. Cable length: 1.5 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Purple

Key Highlights
  • Cable length: 1.5 m
  • Full copper 28AWG wires, 50µ gold RJ-45 contacts
  • Outer diameter jacket of only 3.8mm to improve air flow in cabinet
  • Snagless boots
  • For connecting active equipment
  • Specifications comply to international standards
  • Cables are 100% tested
  • 1.5 m
  • RJ-45 Straight Male
  • RJ-45 Straight Male
  • Cat6 U/UTP (UTP)
  • Purple
Specifications
AWG wire size
28
Cable length
1.5 m
Cable shielding
U/UTP (UTP)
Cable standard
Cat6
Compliance certificates
CE
Conductor material
Copper
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Frequency
250 MHz
Jacket material
Low smoke zero halogen (LSZH)
Operating temperature (T-T)
-20 - 60 °C
Outer diameter
3.8 mm
Product colour
Purple
Snagless cable boot
Yes
Sustainability compliance
Yes

Leaflet

Open Leaflet
