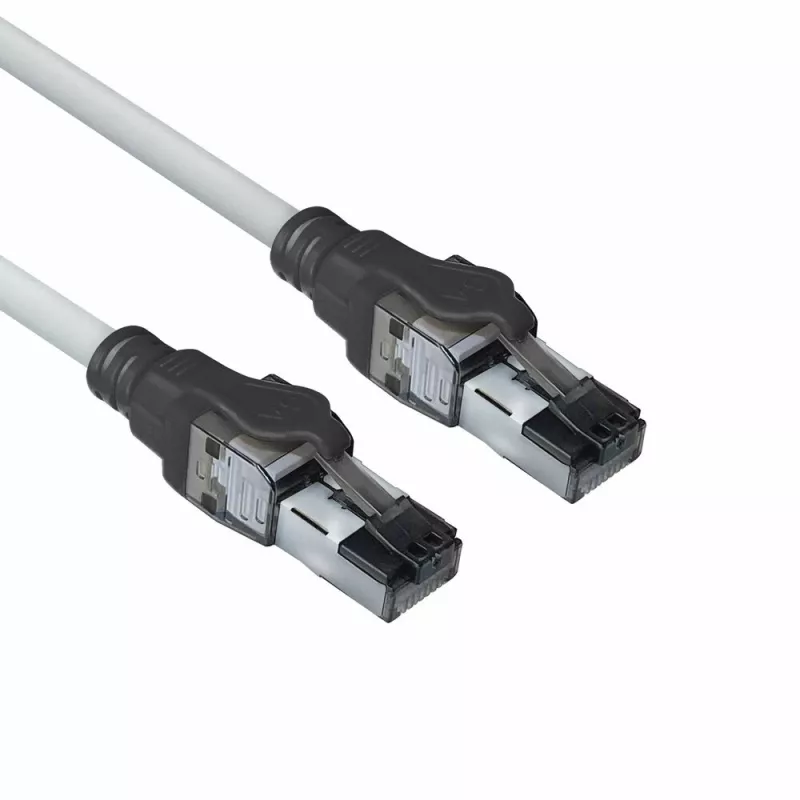

ACT Grey 1.5 meters S/FTP CAT6A IDC 4PPoE / PoE++ 100W LSZH patch cable snagless with RJ45 connectors

The ACT Grey 1.5m S/FTP CAT6A patch cable is a 1.5 metre network cable with RJ‑45 connectors, designed for high-speed data transmission and 4PPoE / PoE++ 100W applications. It features a LSZH (Low Smoke Zero Halogen) jacket suitable for use in plenum spaces and raised floors, full copper 24AWG conductors and 50µ gold‑plated RJ45 contacts attached using Insulation Displacement Contacts (IDC). The cable complies with the ANSI/TIA‑568.2‑D standard and is shielded S/FTP to reduce electromagnetic interference.

Advantages

The cable supports type 4 4PPoE with up to 100W power delivery over a single patch cord, combining power and data in one connection. IDC‑attached contacts provide lower electrical resistance and increased mechanical stability compared with insulation‑piercing connectors, improving reliability in high‑power PoE environments. The LSZH outer sheath reduces toxic smoke and halogen release in case of fire, while gold‑plated contacts and full copper conductors ensure consistent signal quality.

Suitable for

• Connecting PoE++ / 4PPoE capable network switches to security cameras
• Powering and networking wireless access points with 100W PoE
• Installation in plenum spaces, raised floors and other areas requiring LSZH cable jackets

Key specifications

• Cable type: CAT6A, S/FTP shielding
• Length: 1.5 m
• Conductor: solid copper, 24 AWG
• Connectors: RJ‑45 — 50µ gold‑plated contacts, IDC termination
• Power support: 4PPoE / PoE++ up to 100W (Type 4)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Standard compliance: ANSI/TIA‑568.2‑D
• Colour: Black, Grey

How to use

Connect one RJ‑45 end to a 4PPoE/PoE++ capable network switch and the other end to the powered device such as a security camera or access point. Ensure both connected devices support the required PoE power class and that cable runs conform to installation guidelines for CAT6A. Avoid sharp bends and excessive pulling force during installation to maintain shielding and conductor integrity.

Recommendations

Use this CAT6A S/FTP LSZH patch cable for short patch runs between switches and powered devices in environments requiring fire‑safe cabling; verify that both ends and intermediate hardware support 4PPoE 100W to ensure proper power delivery.
