ACT Full motion TV Wall Mount 37 inch up to 70 inch VESA 40 kg

The AC8355 Full Motion TV Wall Mounting Bracket fits most flat-panel TVs from 37" up to 70" with a maximum weight of 40 kg. It supports a wide range of VESA patterns and offers full-motion adjustment including tilt, swivel and level correction, plus integrated cable management and a bubble level for easier installation.

Advantages

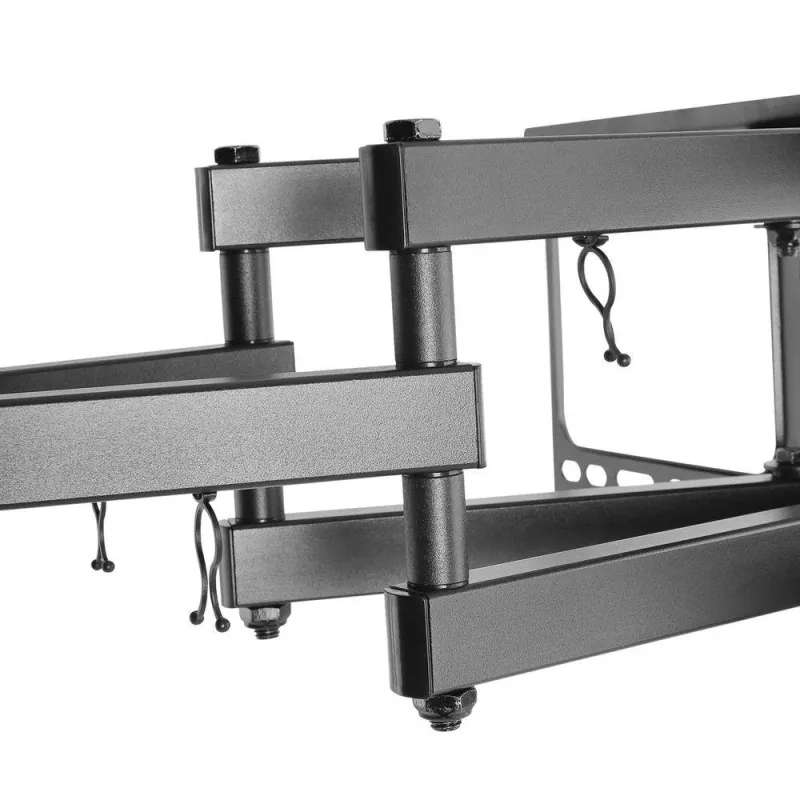

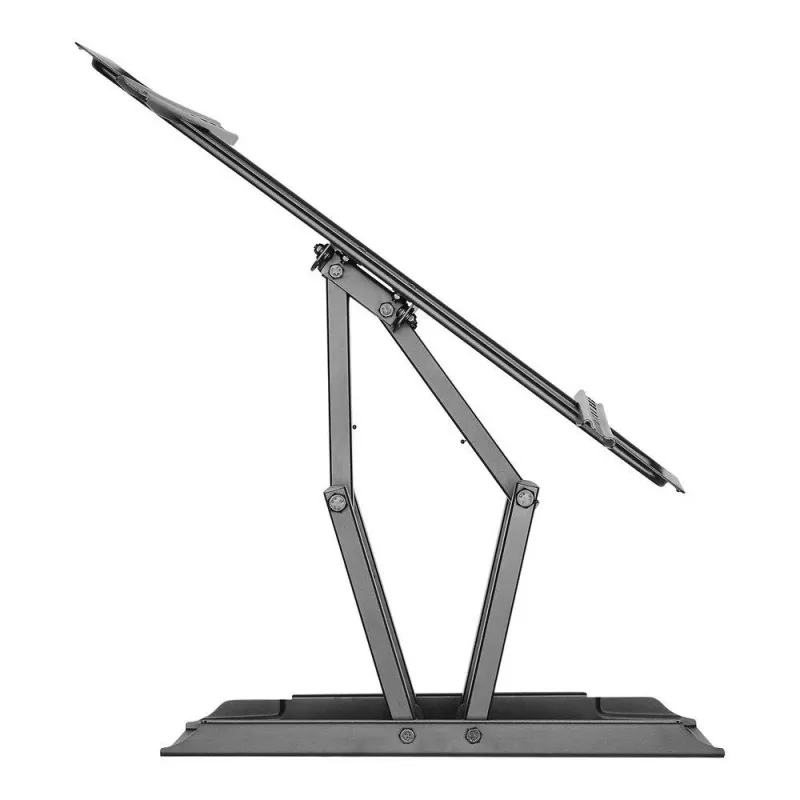

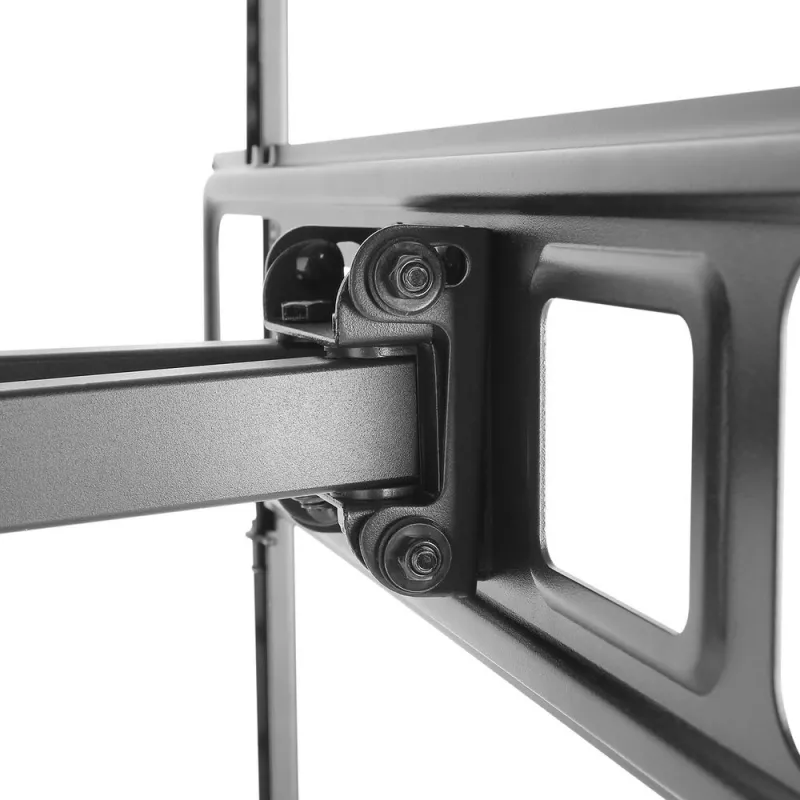

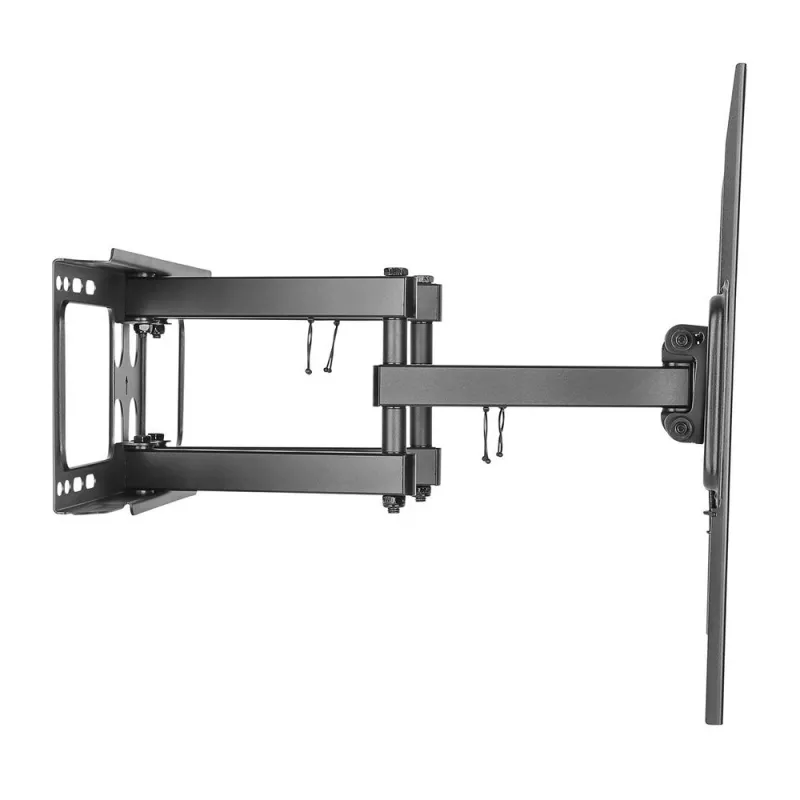

The bracket supports VESA patterns from 75x75 mm up to 600x400 mm and holds screens up to 40 kg, allowing compatibility with many TV models. Its three pivot points provide a maximum extension of 47 cm and enable swivel of up to ±60° and tilt from -15° to +5°, while a fine level adjustment of ±3° helps obtain a straight installation. Built-in cable management keeps cables out of sight, and the included bubble level simplifies alignment.

Suitable for

• Mounting 37"–70" flat-panel TVs
• Rooms where viewing angle needs frequent adjustment (living room, bedroom)
• Locations requiring a low-profile or extended full-motion mount
• Setups that benefit from concealed cable routing

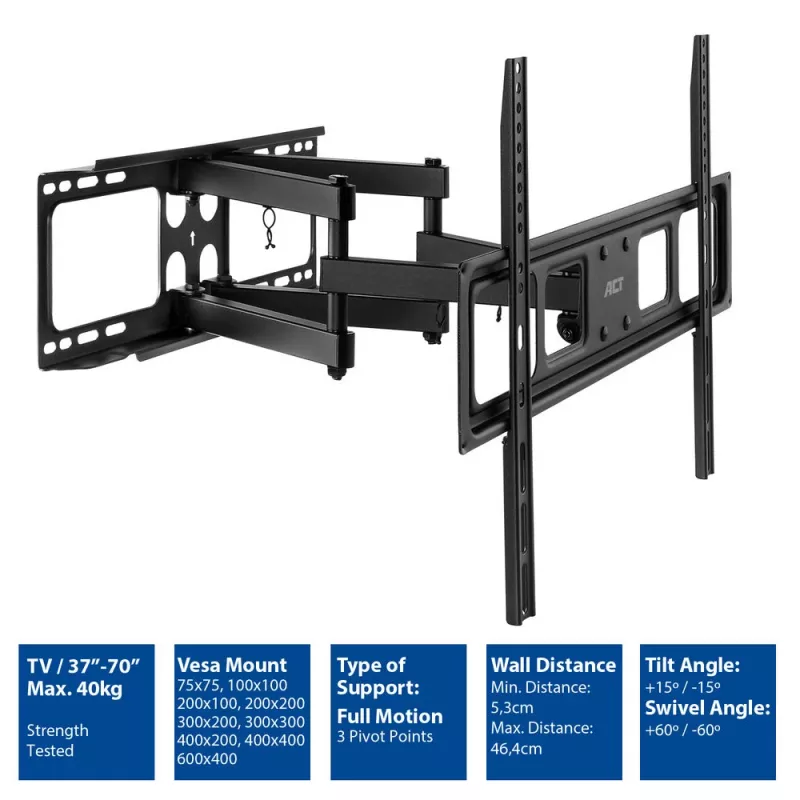

Key specifications

• Supported screen size: 37"–70"
• Maximum load capacity: 40 kg
• VESA compatibility: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, 400x400, 600x400 (mm)
• Tilt range: -15° to +5°
• Swivel range: -60° to +60°

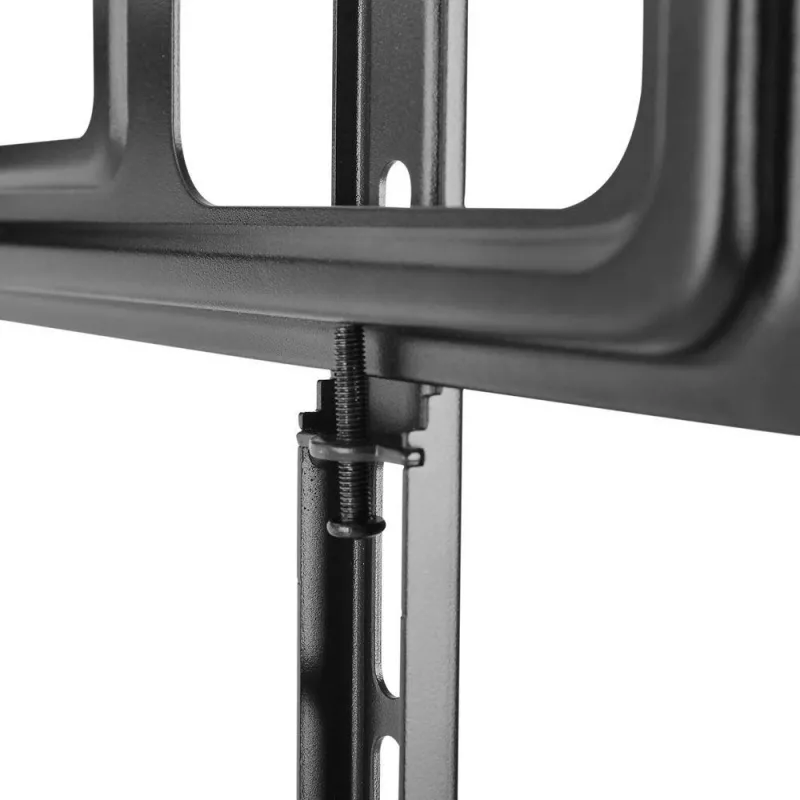

• Level adjustment: -3° to +3°
• Maximum extension (arm reach): 47 cm
• Colour: black

How to use

Attach the wall plate to a suitable load-bearing surface following the mounting instructions and local building codes. Fix the mounting arms to the TV using the matching VESA holes and appropriate screws. Hang the TV on the wall plate, adjust the tilt and swivel to the preferred viewing angle, then use the level adjustment to ensure the screen is straight. Route cables through the integrated cable management channels and verify all fasteners are tightened securely before use.

Recommendations

Verify the TV weight and VESA pattern before installation, mount to studs or a solid wall surface rated for the load, and use the correct screws and anchors for your wall type. For safety, two people are recommended when lifting and positioning the TV.
